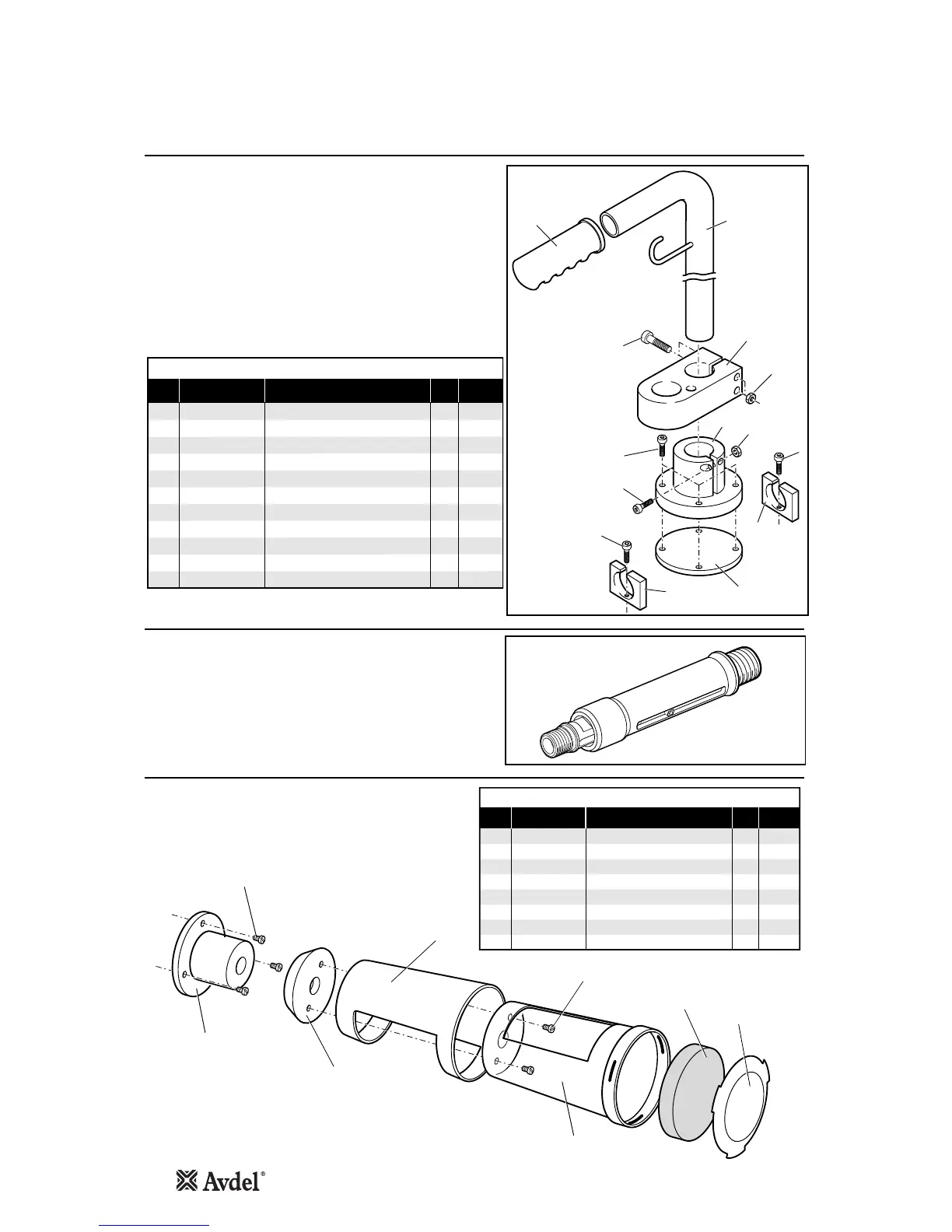

Handle and Holster Kit
Accessories
07265-09500 PARTS LIST
ITEM PART Nº DESCRIPTION QTY SPARES
1 07265-09501 RUBBER HANDLE 1 -
2 07265-09502 TUBE WITH HOOK 1 -
3 07265-09504 M5 BOLTS 2 -
4 07265-09503 HOLSTER 1 -
5 07265-09505 M5 NUTS 3 -
6 07265-09508 BASE 1 -
7 07265-09507 M5 BOLT 4 -
8 07265-09506 M5 BOLT 1 -
9 07265-09512 M5 BOLT 2 -
10 07265-09511 CLIPS 2 -
11 07265-09509 PLATE 1 -
This kit enables an easier handling of the cabinet around the
workplace and allows the tool pistol to be stored in a convenient
position.
Side Ejection Adaptor
When fitted between the tool and the nose assembly, this accessory
forces fastener stems to eject at the front of the tool. Choose the
correct part number according to the stem diameter of the fastener.
Stem Catcher Unit
Fitted to the rear of the tool, this unit catches the spent stems,
preventing them fouling the work area. It should be emptied
when half full of spent stems.
07265-03800 PARTS LIST
ITEM PART Nº DESCRIPTION QTY SPARES
1 07267-01039 SCREW 3 -
2 07265-02013 SCREW 2 -
3 07640-00239 OUTER BODY 1 -
4 07265-02054 FOAM SILENCER 1 -
5 07340-00335 END CAP 1 -
6 07640-00241 INNER BODY 1 -
7 07498-00310 END COVER 1 -
8 07267-01038 ADAPTOR 1 -
