Avdel 07287 - General Assembly of Push Intensifier and Parts List

20

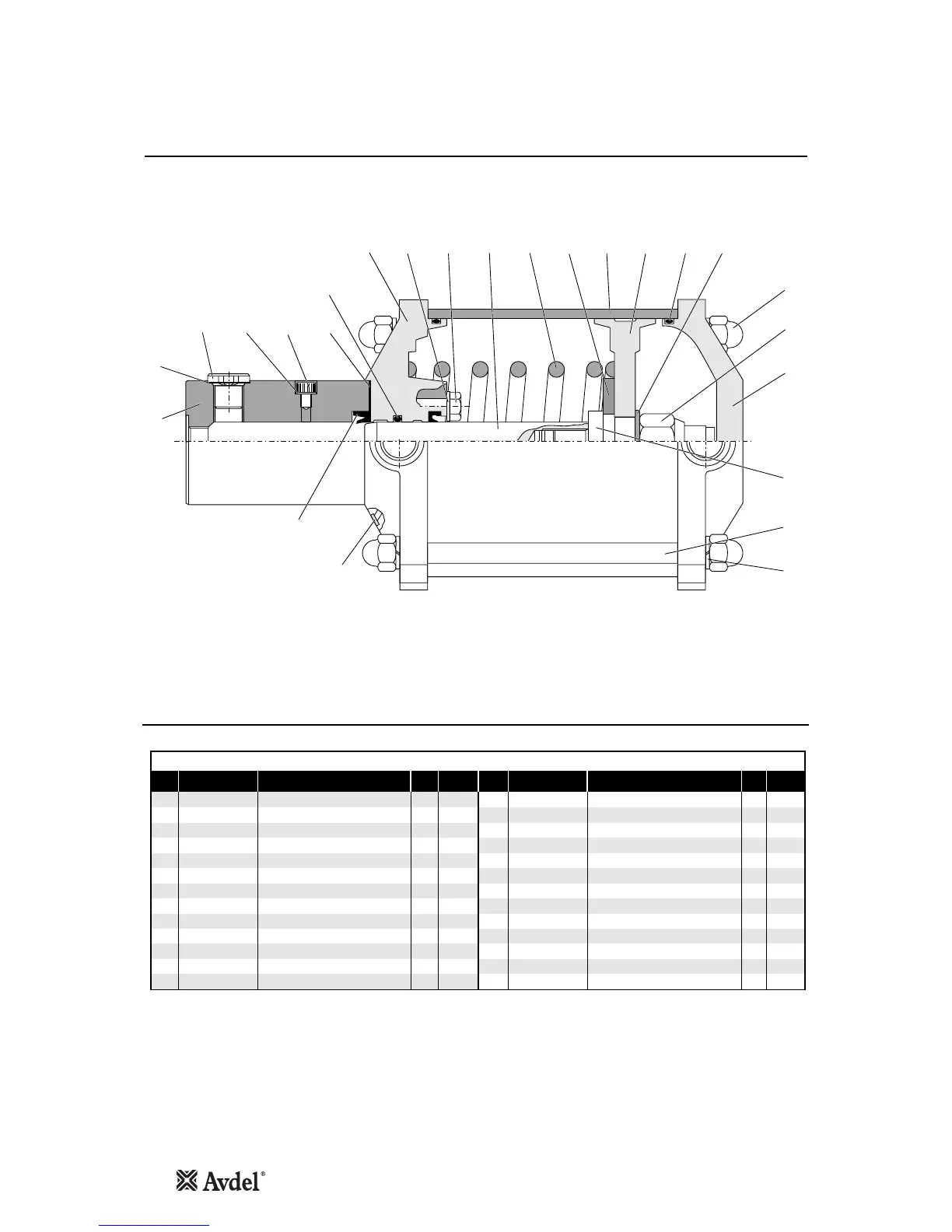

General Assembly of Push Intensifier 07005-10113
1
3
2
45 7896101211
14
13
15
16
17
19
20
24 25
21
22
23
18
Parts List of Push Intensifier 07005-10113
ITEM PART Nº DESCRIPTION QTY SPARES
1 07267-08119 SEAL 4 -
2 07267-08104 SEAL 1 -
3 07267-08107 FRONT FLANGE 1 -
4 07267-08125 WASHER 4 -
5 07267-08106 SCREW 4 -
6 07287-08109 ROD 1 -
7 07267-08134 SPRING 1 -
8 07267-08133 SPRING GUIDE 1 -
9 07287-08117 PNEUMATIC CYLINDER 1 -
10 07267-08110 PISTON 1 -
11 07267-08031 WASHER 1 -
12 07267-08112 SEAL 1 -
13 07267-08113 BLIND NUT 8 -
07005-10113 PUSH INTENSIFIER PARTS LIST
ITEM PART Nº DESCRIPTION QTY SPARES
14 07267-08015 LOCKNUT 1 -
15 07267-08116 REAR FLANGE 1 -
16 07267-08130 ROD EXTENSION 1 -
17 07287-08114 TENSION ROD 4 -
18 07267-08126 SPRING WASHER 8 -
19 07267-08122 FILTER 1 -
20 07267-08103 SEAL 1 -
21 07287-08102 STEEL HEAD 1 -
22 07267-08128 WASHER 1 -
23 07267-08101 PLUG 1 -
24 07267-08123 WASHER 1 -
25 07267-08121 BLEED SCREW 1 -
26 07267-08135 FILTER 1
NOT SHOWN
