Nose Assemblies
Selection Tables for Monobolt®, Avdelok®, Avtainer®, Maxlok® and Hemlok®
Service Instructions
Nose assemblies should be serviced at weekly intervals.
• Remove the complete nose assembly using the reverse procedure to the ‘Fitting instructions’.
• Any worn or damaged part should be replaced by a new part.
• Particularly check wear on jaws.
• Ensure Jaw Spreader 7 assembly tube (where fitted) or Front Spring Guide 6 is not distorted.
• Check Spring 9 is not distorted.
• Assemble according to fitting instructions.

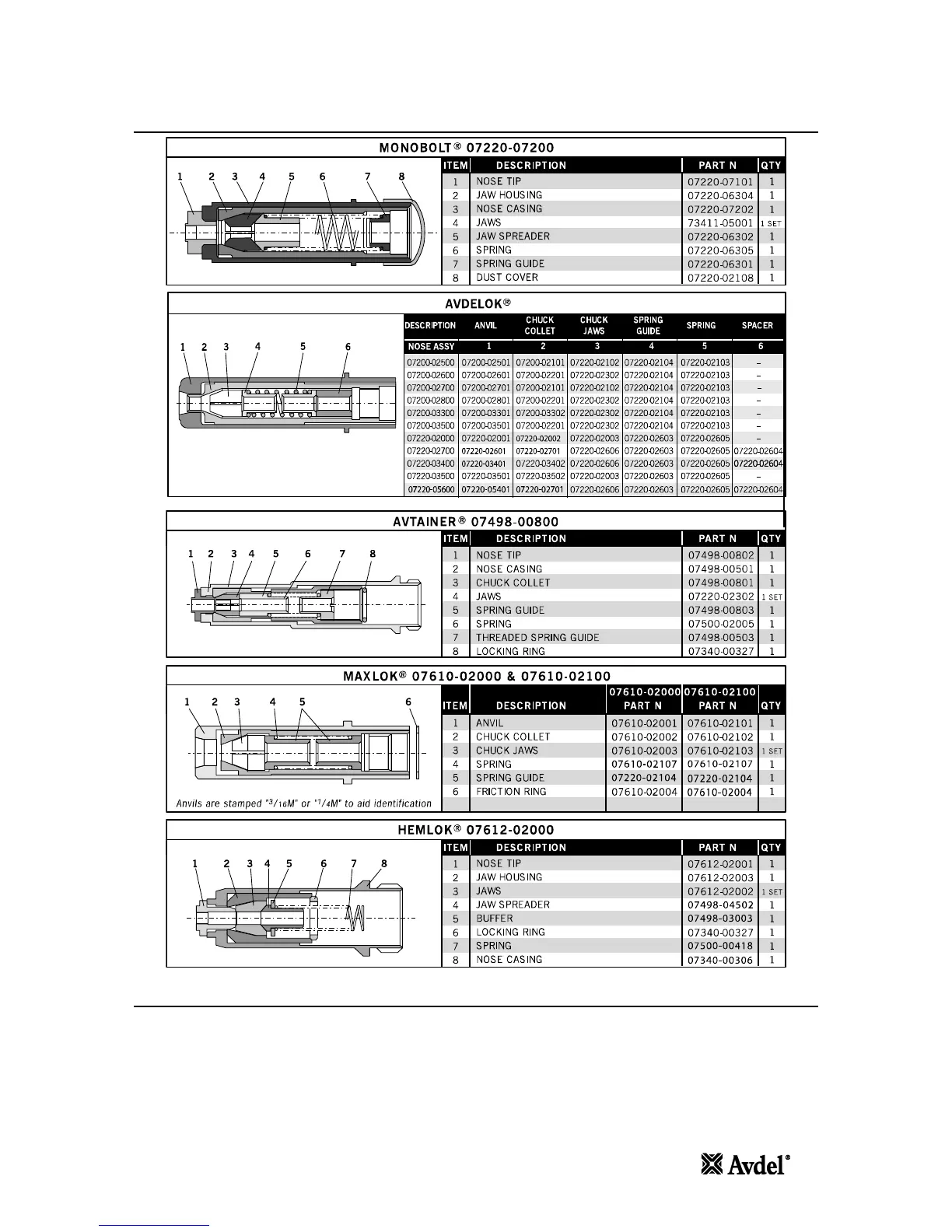

Item numbers in bold refer to the Nose Assembly drawing on page 8.
