7
All tools are operated with compressed air. The pressure regulator in the cabinet is set to an optimum pressure of 5.25 bar. Regardless
of the air inlet pressure, the pressure gauge in the cabinet will show 5.25 bar maximum. The pressure regulator in the cabinet must not
be adjusted under any circumstances. In addition, we recommend the use of external pressure regulators and automatic oiling/filtering

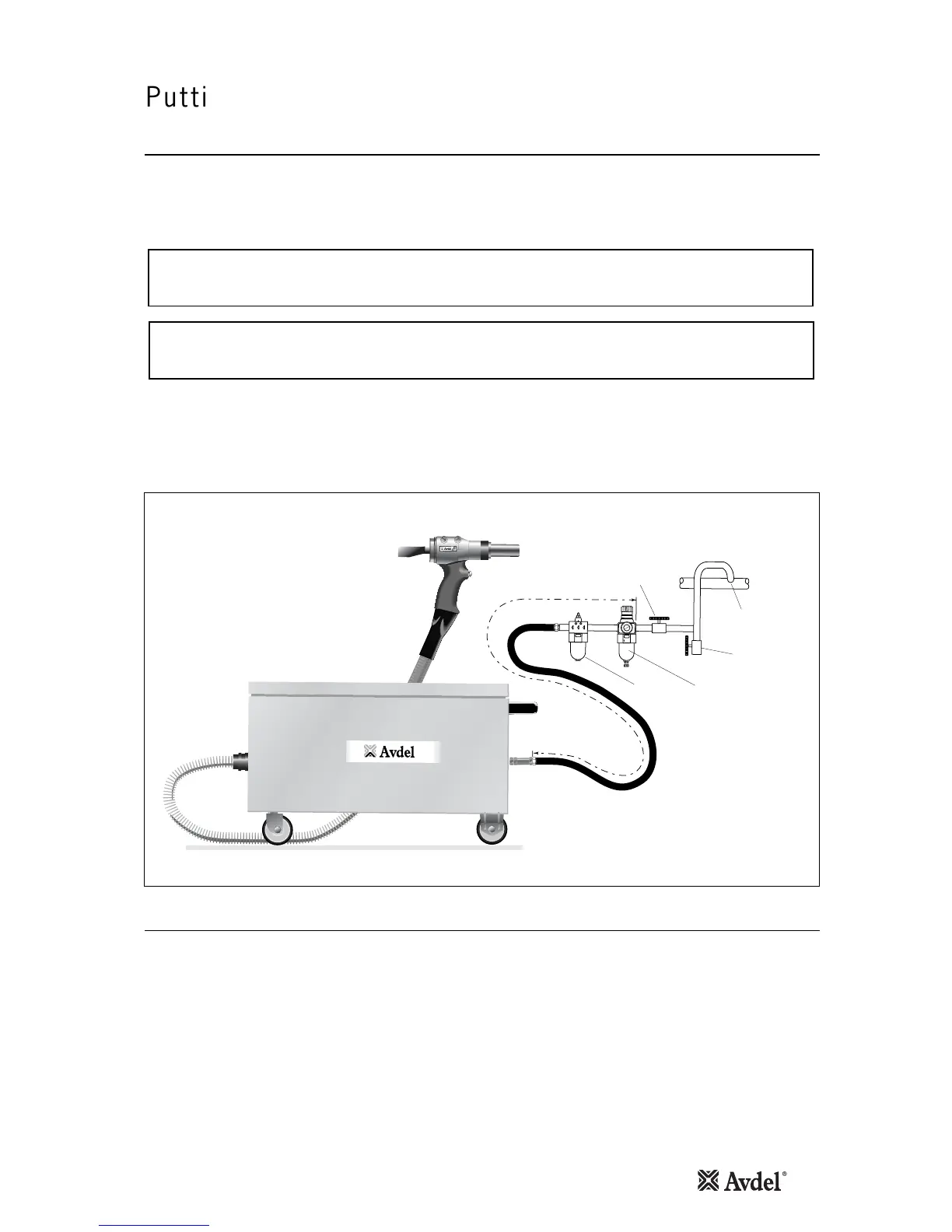

systems on the main air supply. These should be fitted within 3 metres of the tool (see diagram below) to ensure maximum tool life and
minimum tool maintenance.
Putting into Service
Air Supply
Operating Procedure
OPTION 2
• Ensure that the correct nose equipment is fitted.
• Connect the tool to the air supply.
• Insert the fastener stem into the nose of the tool.
• Insert the tool with the fastener squarely into the prepared hole
of the application.
• Fully operate the trigger. The tool cycle will ensure the fastener
is placed.
OPTION 1
• Ensure that the correct nose equipment is fitted.
• Connect the tool to the air supply.
• Insert the fastener body squarely into the prepared hole of the
application.
• Apply the tool to the protuding fastener stem.
• Fully operate the trigger. The tool cycle will ensure the fastener
is placed.
Air supply hoses should have a minimum working effective pressure rating of 150% of the maximum pressure produced in the system
or 10 bar, whichever is the highest. Air hoses should be oil resistant, have an abrasion resistant exterior and should be armoured where
operating conditions may result in hoses being damaged. All air hoses MUST have a minimum bore diameter of 6.4 mm or
1
/
4
inch.
Read servicing daily details page 12.
IMPORTANT
The pressure regulator in the cabinet is set to 5.25 bar.
The pressure regulator must not be adjusted under any circumstances.
IMPORTANT
The safety valve in the cabinet is set to 5.25 - 5.30 bar.
The safety valve must not be adjusted under any circumstances.
