8
Nose Assemblies
IMPORTANT
The air supply must be disconnected when fitting or removing nose assemblies unless specifically instructed
otherwise.
• Lightly coat the jaws with Molylithium grease.
• Drop Jaws 5 into Jaw Housing 4 or Chuck Collet 3, depending on whether you have a short or long nose assembly (see table
opposite for identification).
• Insert Jaw Spreader 7 into Jaw Housing 4 (locating in the ‘V’ shape formed by the jaws) or insert front Spring Guide 6 into Chuck
Collet 3.
• Locate Buffer 8 on Jaw Spreader 7.
• Locate Spring 9 onto Jaw Spreader 7 or onto Front Spring Guide 6.
• On long nose assemblies, screw Rear Spring Guide 10 into Chuck Collet 3.
• Fit Locking Ring 11 onto the end plug of the tool.
• Holding tool pointing down, screw on the assembled jaw housing or chuck collet onto the end plug and tighten with spanner.
• Screw Nose Tip 1 into Nose Casing 2.
• Place Nose Casing 2 over Jaw Housing 4 or Chuck Collet 3 and screw onto tool, tightening with spanner.
Fitting Instructions

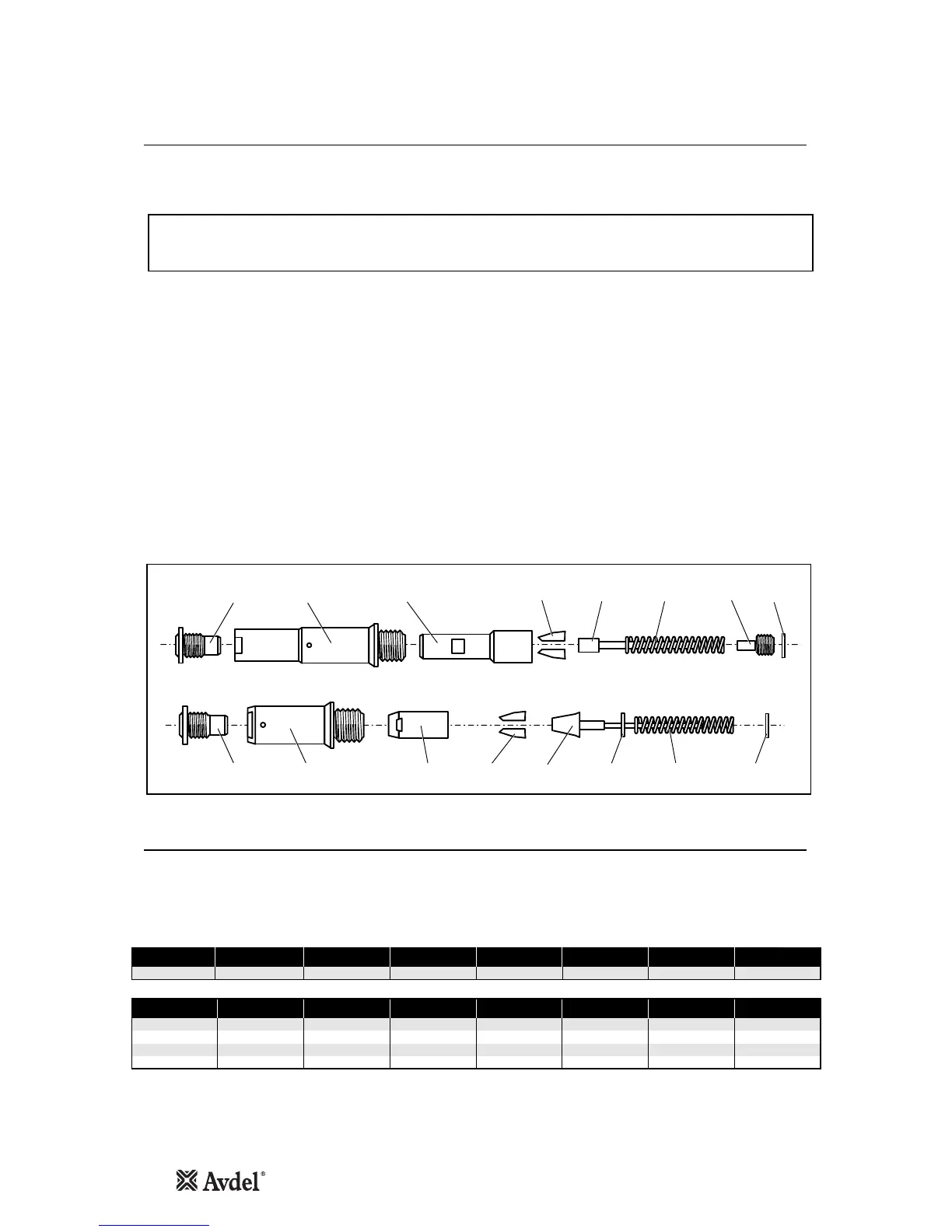

07287 Nose Assembly Components
This table lists nose assemblies. Each nose assembly represents a unique assembly of components which can be ordered individually.
Component numbers refer to the illustration above. We recommend some stock as items will need regular replacement. Read the
Nose Assemblies Servicing Instructions opposite carefully. All nose assemblies also include a locking ring 11 part number
07340-00327.
It is essential that the correct nose assembly is fitted prior to operating the tool. By knowing your original complete tool part number
or the details of the fastener to be placed, you will be able to order a new complete nose assembly using the selection tables on
pages 8 and 9.
NOSE ASSY 1 2 4
5
7
89
NOSE ASSY 1 2 3
5
6
9
10
07498-00500 07497-03202 07498-00501 07498-00502 07497-03002* 07498-00507 07500-02005 07498-00503
07490-04900 07490-04400 07340-00306 07340-00304 07340-07502 07340-07503 07340-01503 07340-01502
07498-01300 07498-01400 07340-00306 07340-00304 07340-07502 07340-07503 07340-01503 07340-01502
07498-04600
07498-03202
07340-00306
07340-00304
07498-04501*
07498-04502
07498-03003
07100-04003
07498-04700
07498-04701 07340-00306
07498-04503
07498-04501*
07498-04900
07498-03003
07100-04003
