Avdel 07287 - Quick Connect Kit and Parts List

11
Quick Connect Kit
1
23 9
4
1
5
6
*14
*157 *16
8
9
10
11
9
12
13
2
6
5
Accessories
ITEM PART Nº DESCRIPTION QTY SPARES
07267-01250 PARTS LIST
1 07265-03206 NUT 4 -
2 07265-03269 CONNECTION 4 -
3 07265-03295 AIR HOSE EXTENSION 1 -
4 07265-09296 OIL HOSE EXTENSION 2 -
5 07265-03204 WASHER 4 -
6 07265-03205 SCREW 4 -
7 07265-03275 TRAY 1 -
8 07267-01022 NIPPLE 2 -
9 07265-02031 WASHER 6 -
10 07265-03278 QUICK FITTING NIPPLE 2 -
11 07267-03277 QUICK FITTING COUPLER 2 -
12 07265-03272 WASHER 1 -
13 07265-03221 CONNECTOR 2 -
* 14 07267-03251 RUBBER RING 1 -
* 15 07267-03252 SPACER WASHER 1 -
* 16 07265-03292 CLAMP 1 -
* These items are part of the Base Tool and are not part of the Quick
Connect Kit
This kit enables rapid connection of the handle and hose to the cabinet.

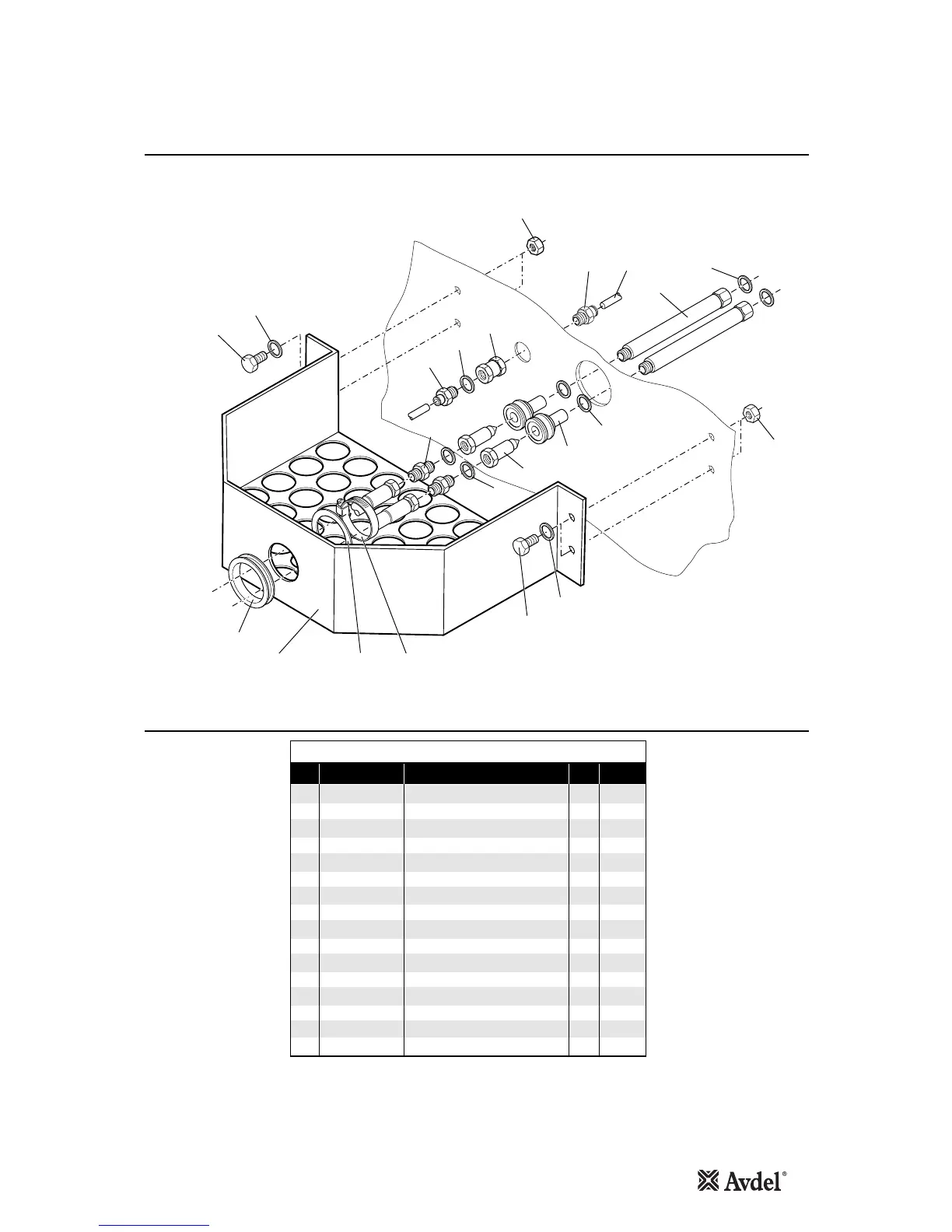

Parts List of Quick Connect Kit 07267-01250
