Loading Ribbon 3-3

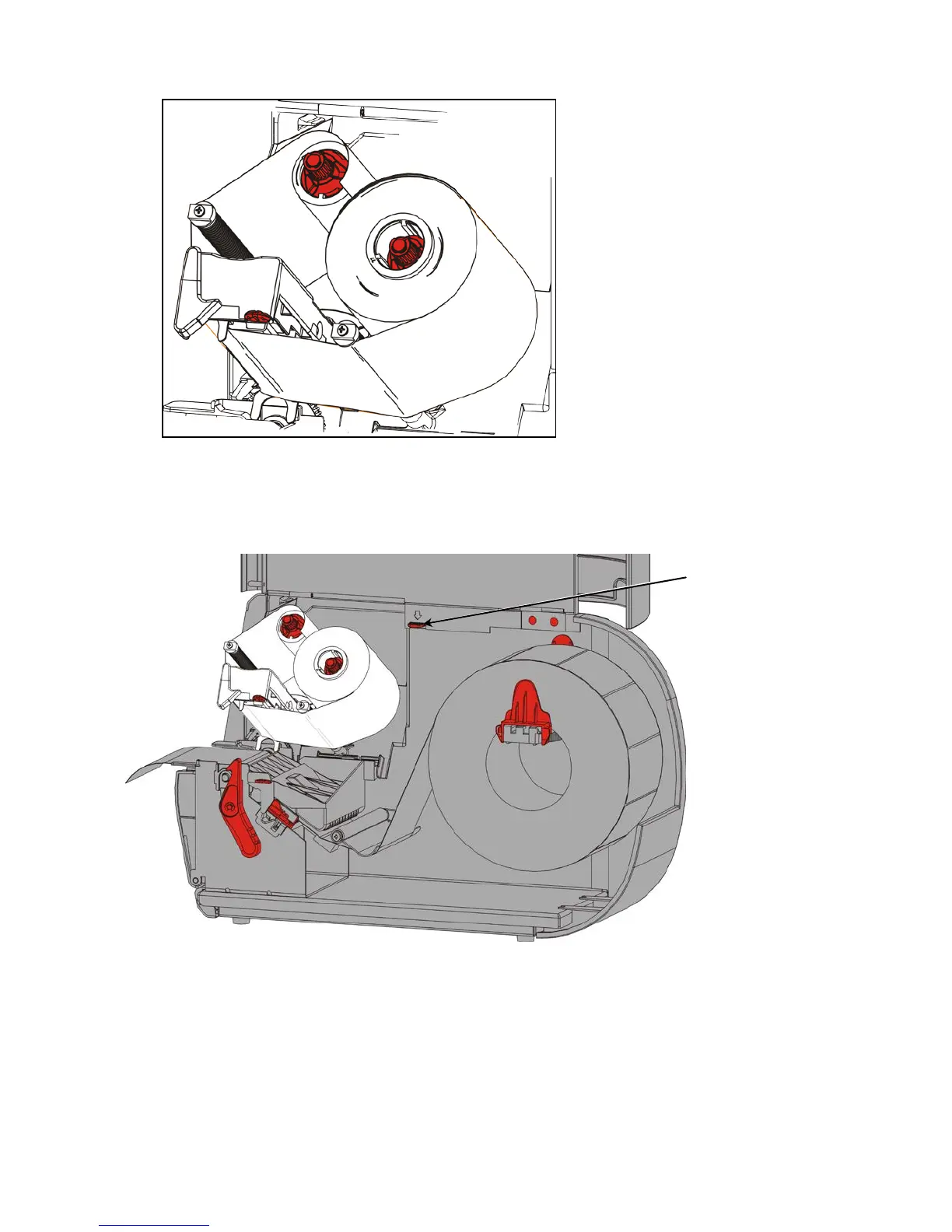

10. Use the adhesive on the ribbon leader to attach it to the take-up core. Make sure an
empty take-up core is on the reel.
11. Rotate the take-up reel until the leader is past the printhead.
12. Remove any slack in the ribbon by turning the take-up reel until the ribbon is tight
under the printhead.
13. Push the printhead release.
Printhead Release
