1-2 Operator's Handbook

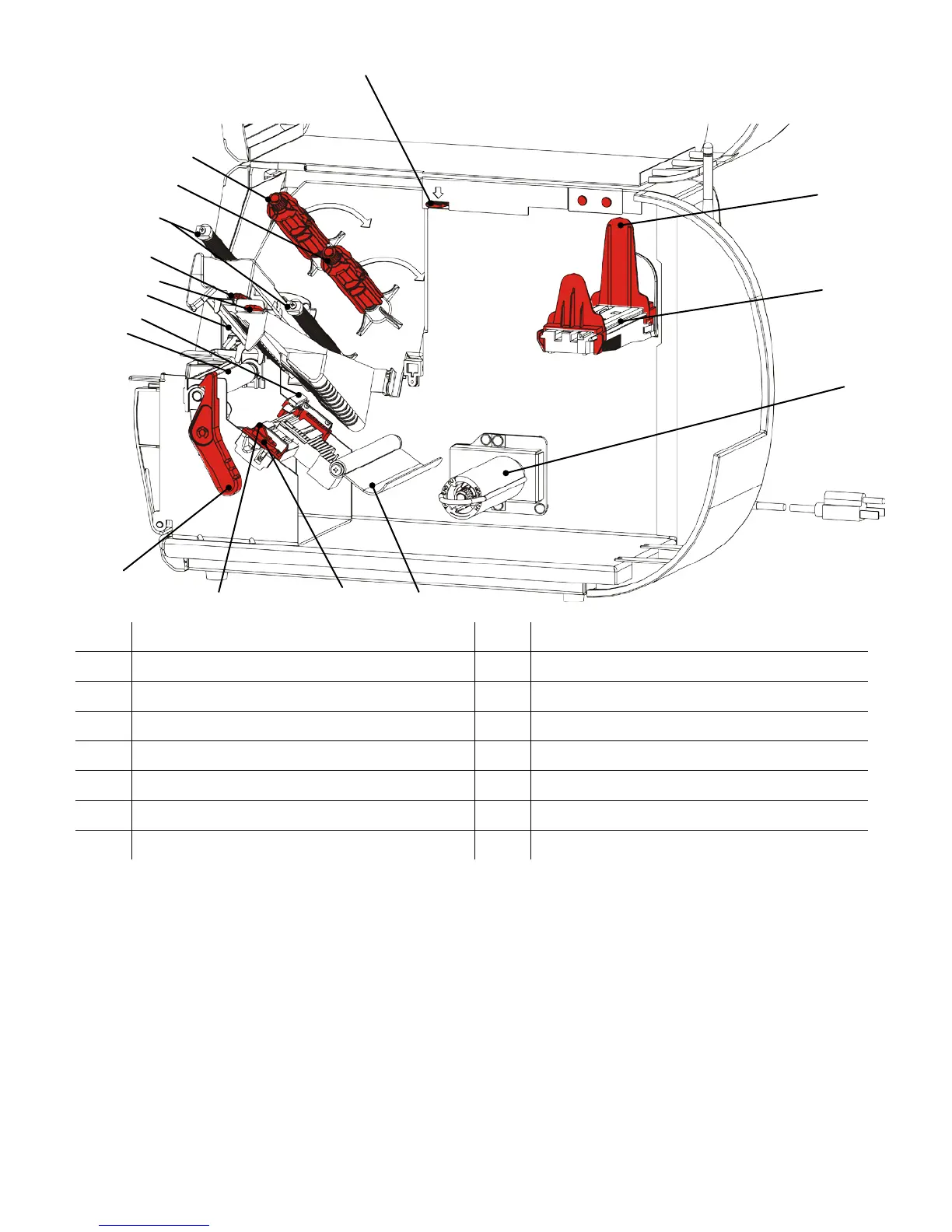

User touch parts are red.
1 Roll Guides 9 Die Cut Sensor
2 Supply Holder 10 Printhead
3 Liner Take-up Reel (optional) 11 Deflector Tab
4 Tension Bar 12 Printhead Tab
5 Supply Guides 13 Ribbon Guides
6 Supply Lever 14 Ribbon Reel
7 Printhead Latch 15 Ribbon Take-up Reel
8 Platen Roller 16 Printhead Release
1
2
3
4
7
5
6
8
11
10
9
12
13
14
15
16
