Avery Dennison AP7.t - Setting the interface; Offline operation

12/08 Rev. 5.01-01 USER MANUAL Commissioning & Operation
AP7.t
13
¯ When the parameter SYSTEM PARAMETER > Active Mode is set to “Offline”, the
printer switches directly to offline mode when turned on.
¯ CAUTION! - Wait at least 10 seconds between switching the device off
and on again, otherwise any modified parameter settings are not saved.
Setting the interface
By factory default, the AP7.t is set for data transfer via the Centronics
interface. Print data can also be transferred via the RS232, USB or Ethernet
interface.
« The interface type is selected with the following parameter:
INTERF. PARAM. > EASYPLUGINTERPR > Interface
P
For further information on how to set parameters, see Info-Printouts and
Parameters, “Using the Parameter Menu”.
P Part numbers for network and data cables can be found in Accessories.
P Notes on how to use the Ethernet interface can be found in
Advanced Applications
.

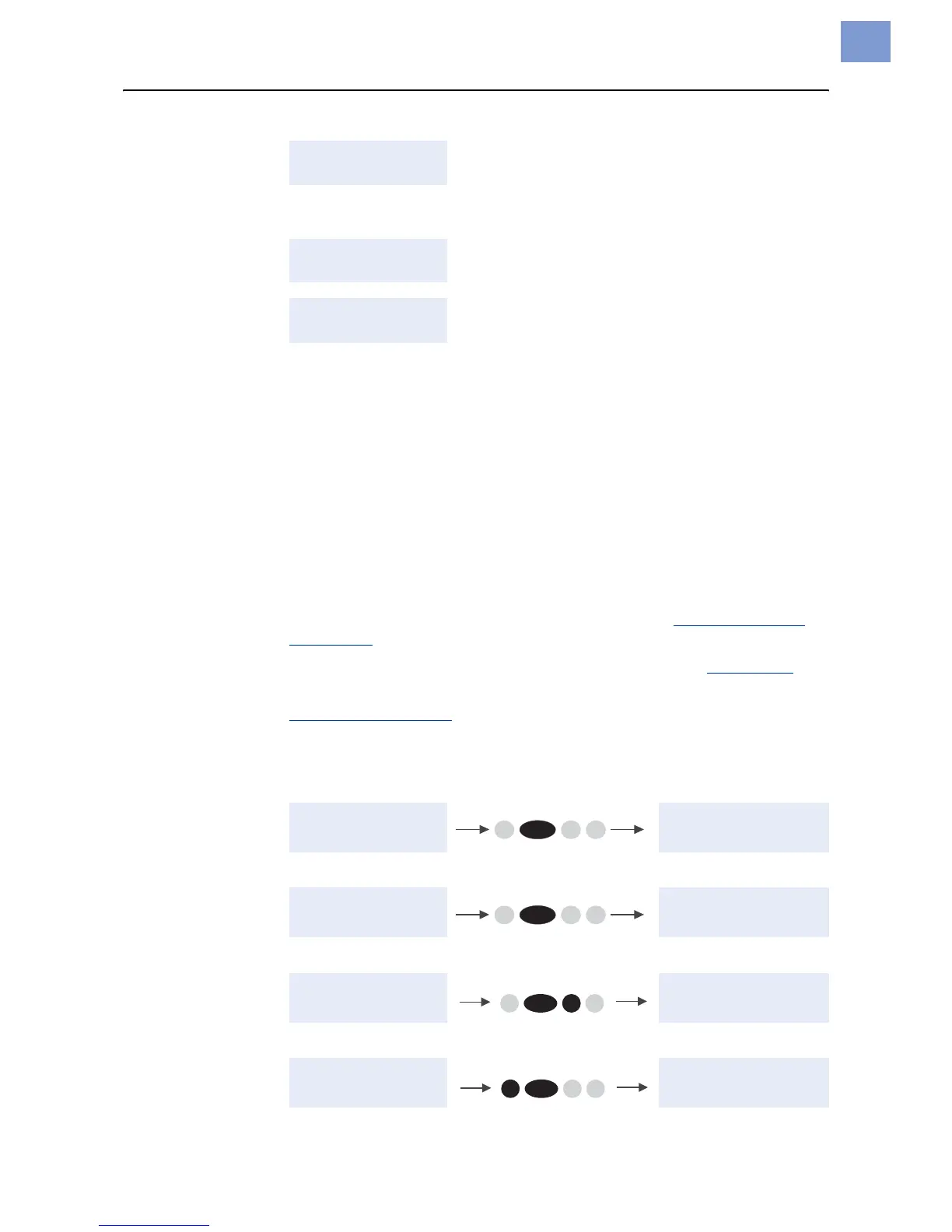

Offline operation
• Switching from offline mode to online mode:
• Switch to online mode when the print job is stopped:
• Slow material and ribbon feed:
• Material travels backwards under the printhead:
Memory: 8 MB
Flashcard: 32 MB
Internal RAM (here: 8 MB)
Optional RAM on the CompactFlash card (here: 32
MB) – only displayed when a CompactFlash card is
in use.
OFFLINE 0 JOBS
Initialisation
Offline mode
ONLINE 0 JOBS Online mode. The unit is ready for printing.
OFFLINE x JOBS ONLINE x JOBS
OFFLINE x JOBS
Stopped xx
ONLINE x JOBS
Stopped xx
OFFLINE x JOBS OFFLINE x JOBS
feeding…
OFFLINE x JOBS OFFLINE x JOBS
feeding…
Online
Online
Feed
Online
Cut Online
