Avid Technology S6L Control Surface Installing

S6L Control Surface RAM Expansion 10
Removing the SBC Tray in S6L-16C or 24C
To remove the SBC Tray:
1 If your system includes one, remove the black rubber stopper from the purple plastic shroud, and set it aside (you do not need
to re-install it). This stopper must be removed to access one of the captive screws that secures the SBC Tray to the chassis.
2 With the stopper removed, use a #2 Phillips screwdriver to loosen the captive screw below the stopper hole.
3 Using a #2 Phillips screwdriver, remove the two fasteners securing the top edge of the purple shroud to the top of the chassis.
Early model control surfaces included this stopper; newer models do not.

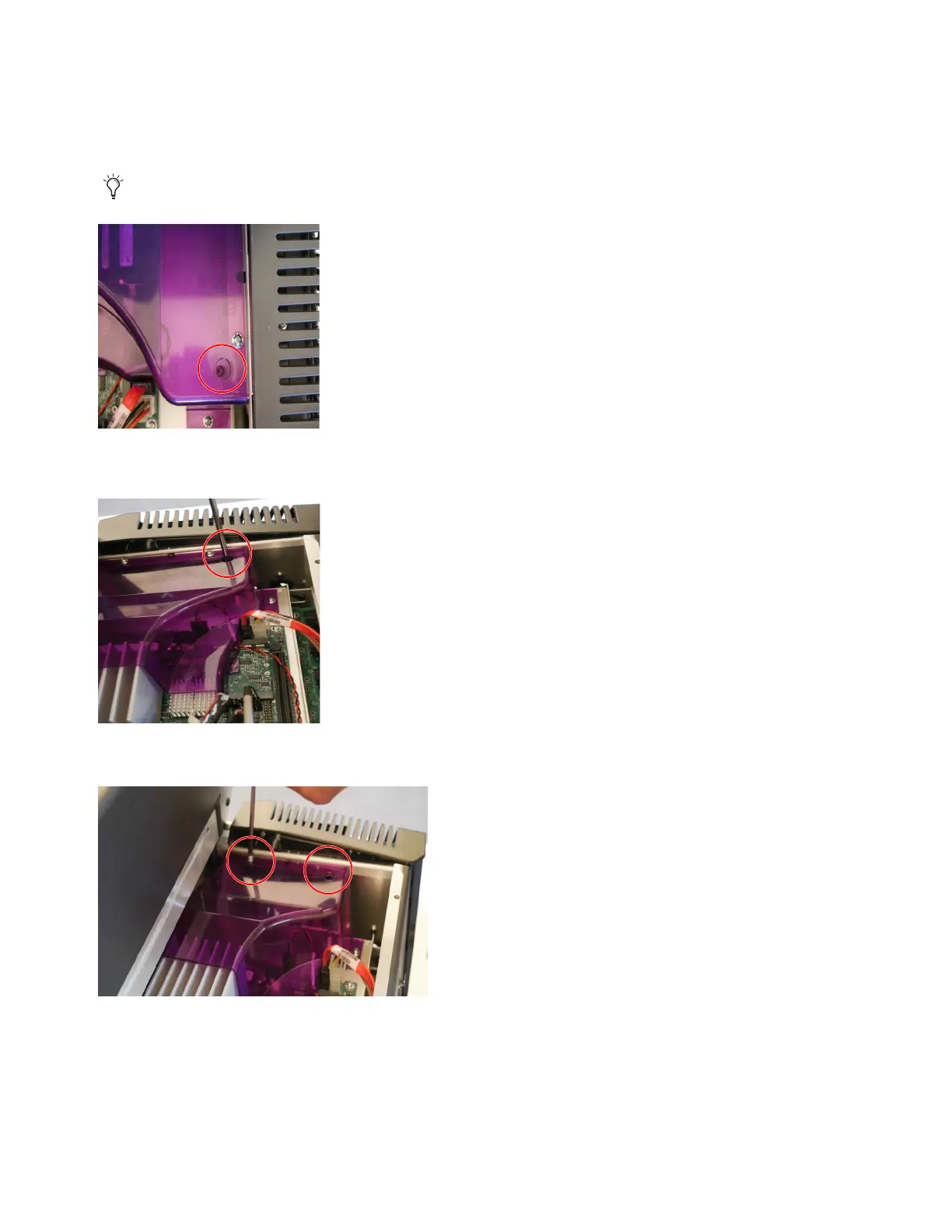

Figure 17. Shroud with stopper removed, showing captive screw below
Figure 18. Loosening the captive screw below the shroud
Figure 19. Fasteners to remove from the top of the shroud
