Chapter 3: Using XMON 21
Control Room Sources
The following input sources are available for the Control Room:
• Main
• Surround
• Stereo 1
• Stereo 2
• Stereo 3
• Stereo 4
• Listenback
• AFL
Monitors A–D
To select input sources for the four Monitor feeds:
1 Press the SETUP key in the Control Room section of the MC Pro surface.

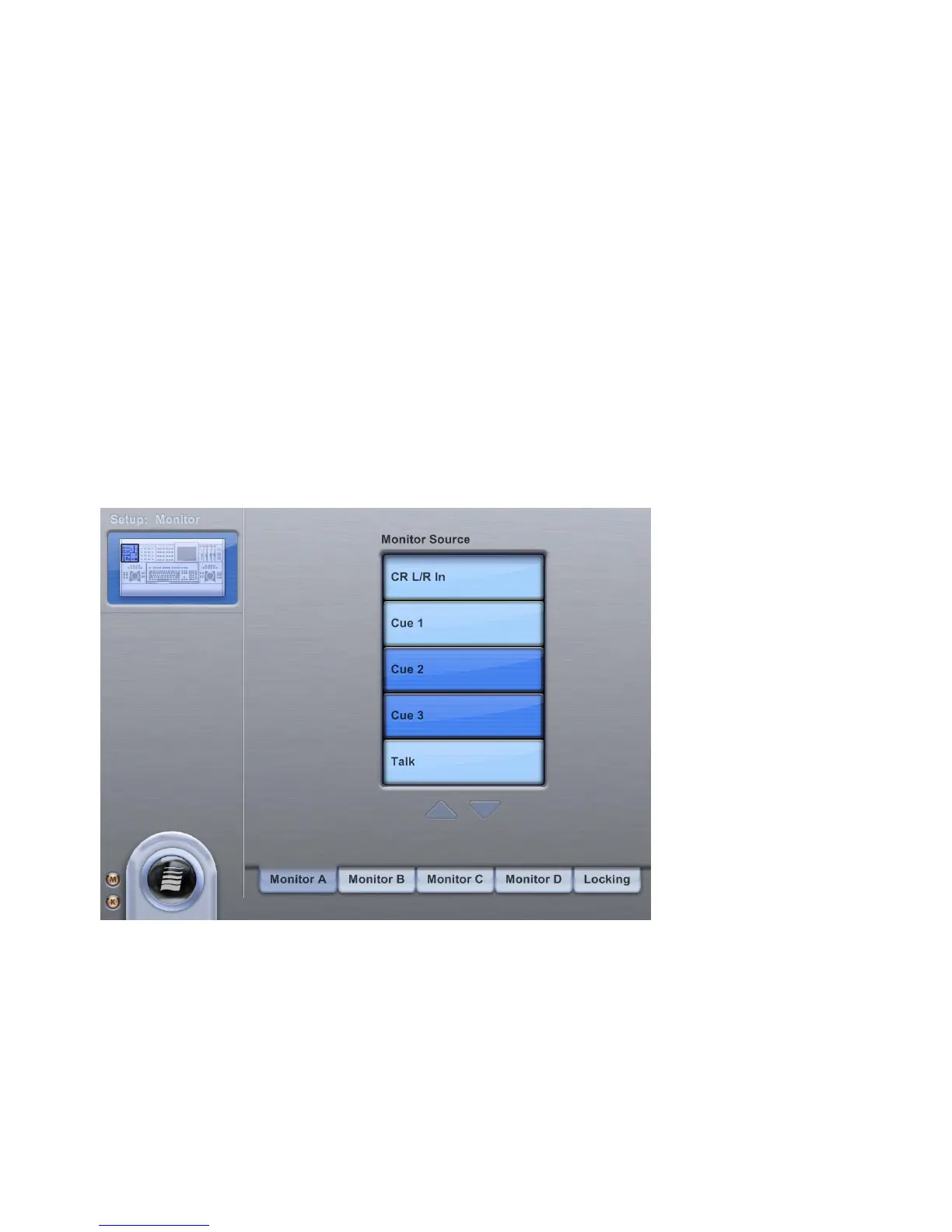

The Setup: Monitor Touchscreen displays the available sources in the Monitor Source column.
2 Touch a source in the list to activate it for the Monitor feed.
Active sources are dark blue, inactive sources are light blue.
Monitor A–D Sources
The following input sources are available for Monitor A–D:
• Control Room L/R
• Talkback
• Cue 1 (Monitor A, B, and C)
• Cue 2 (Monitor A, B, and D)
• Cue 3 (Monitor A and B)
Choosing Monitor A sources
