Chapter 3: Using XMON 23
Speaker Management
Speaker Mapping
The Speakers buttons at the bottom of the Control Room Setup screen correspond to the eight outputs for the currently selected
Control Room feed: Main, Alt, Mini.
Speakers On and Off
The Speakers outputs are toggled on and off by clicking the eight buttons on the Control Room Setup screen.
• A yellow button indicates the speaker output is on.
• A gray button indicates the speaker is off.
Master Speaker On and Off
The far left Speakers button (labeled On in the figure above) is a master speaker on/off toggle switch.
• Clicking the yellow On button turns all speakers off.
• Clicking the gray Off button toggles speakers on that were previously active before the Off button was pressed.
Additional Information
The following XMON features are currently not supported in the XMON EUCON Software Application:
• Linking Monitor Output levels
• Output level trim mode
• Calibration mode
• Mono Switch
• Individual Output Trim Mode
• Broadcast Mode for AFL and PFL monitoring
• Cue Outputs 5–6 are not accessible via EUCON
• Headphone / Cue Talkback Dim
• Auto Talkback Mode
• Listen Mic level Control
• Listen Mic Select Switches
When Alt 2 Spkrs is selected on the MC Pro, the Control Room Setup screen speaker selector array shows only the two speakers
for the Mini output feed.

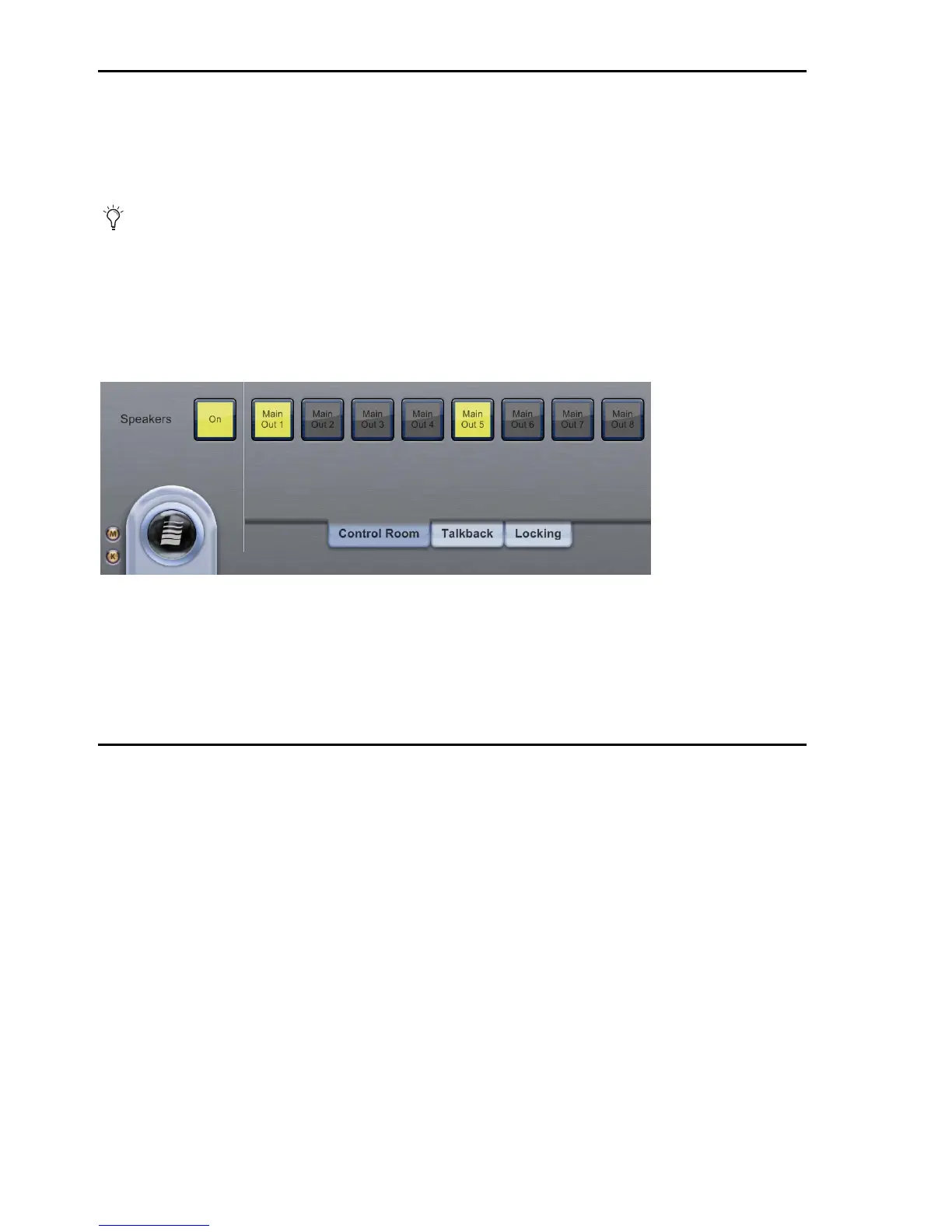

Turning Control Room Speakers on and off
