XMON EUCON Software Application User Guide20
Selecting Sources from MC Pro
The MC Pro surface lets you assign XMON input sources to the Control Room and Monitor outputs.
Control Room
To select input sources for the Control Room:
Press the SETUP key in the Control Room section of the MC Pro surface.
The Touchscreen that appears displays the available sources across the top row in blue.
1 Press a gray button directly below a source to toggle the corresponding source on.
2 Press a yellow button directly below a source to toggle the corresponding source off.
In the figure above, only the Main source is active. The yellow On button (below the surface graphic) is only active when at least
one source is active. This button toggles all currently assigned sources off/on.
3 You can re-order the blue sources by clicking on one and re-selecting another source (see figure below).

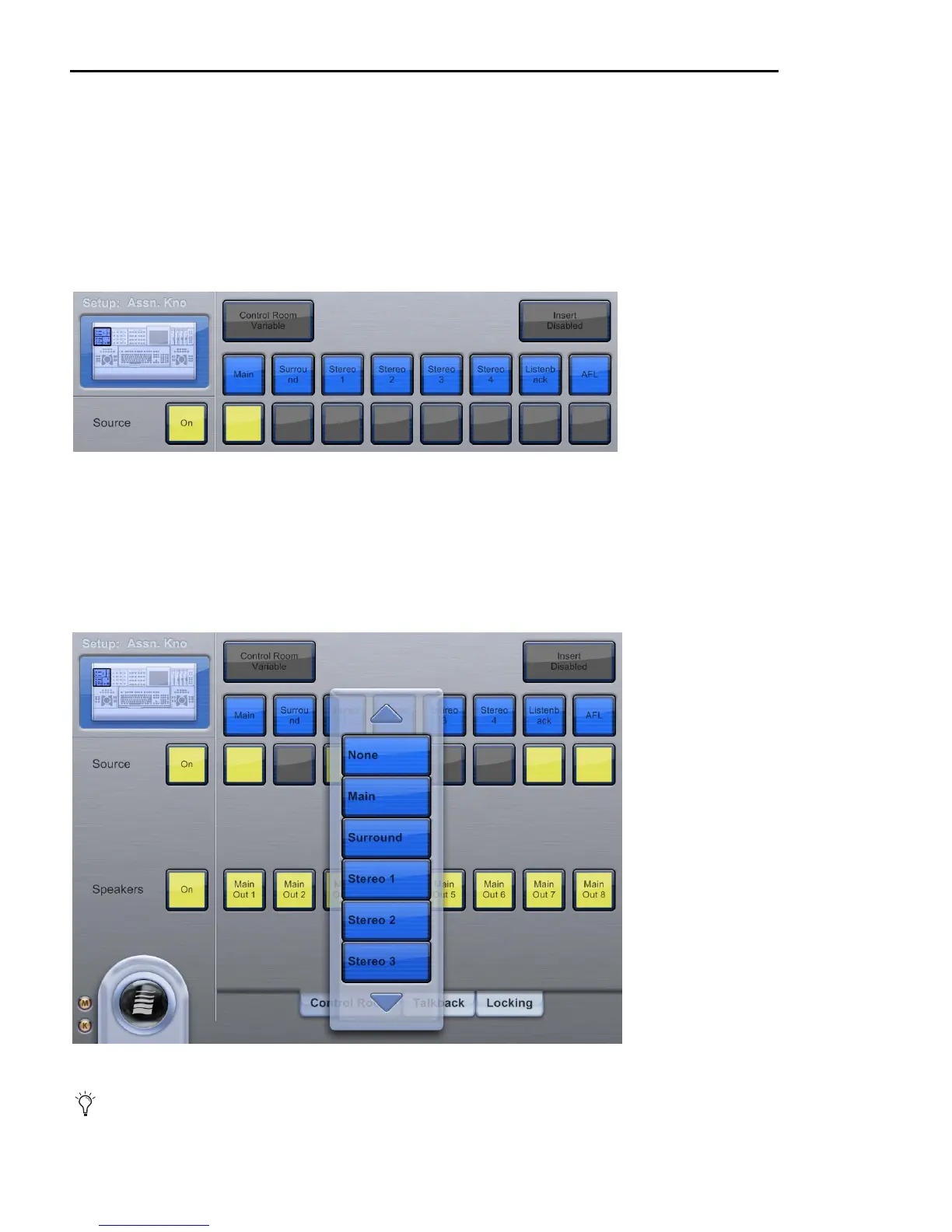

MC Pro Control Room Setup Touchscreen
Re-ordering the sources
The Monitor and Control Room source selector buttons are always in Sum mode. Selecting a new source does not turn off the
previously selected source(s).
