Avid Technology XMON EUCON User Manual

Chapter 2: Installing XMON 9
DB-25 Connectors
This section shows a wiring diagram for each of XMON’s seven DB-25 connectors, and their pinout tables.

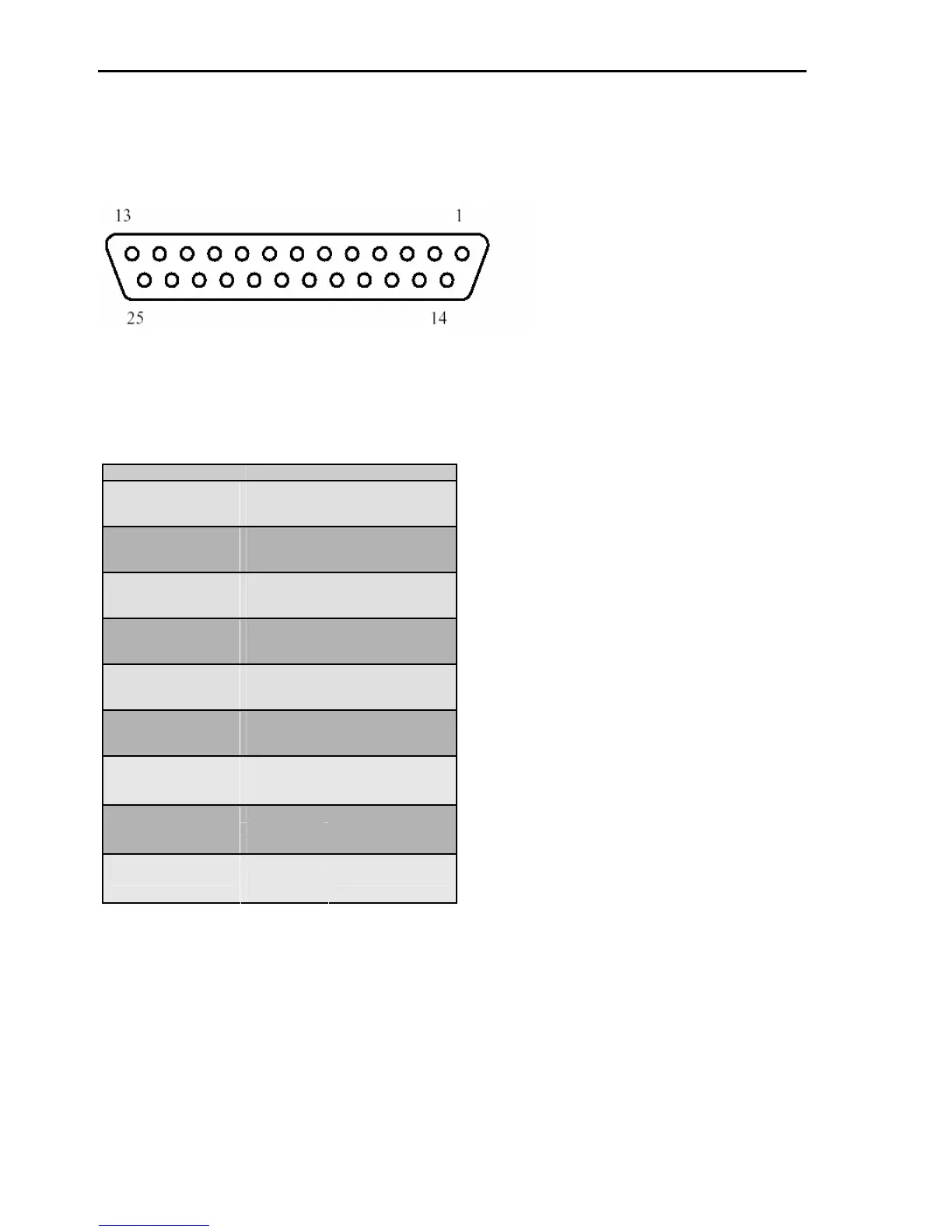

DB-25 Wiring Diagram
DB-25 Connector Pinout Tables
Cue Inputs
DB-25 connector (user view)
Signal Name Pin# Signal Type
24 Input+
12 Input-
Cue Input1
25 GND
10 Input+
23 Input-
Cue Input2
11 GND
21 Input+
9 Input-
Cue Input3
22 GND
7 Input+
20 Input-
Cue Input4
8 GND
18 Input+
6 Input-
Cue Input5
19 GND
4 Input+
17 Input-
Cue Input6
5 GND
15 NC
3 NC
Not Connected
16 GND
1 NC
14 NC
Not Connected
2 GND
13
26
GND
27
GND
