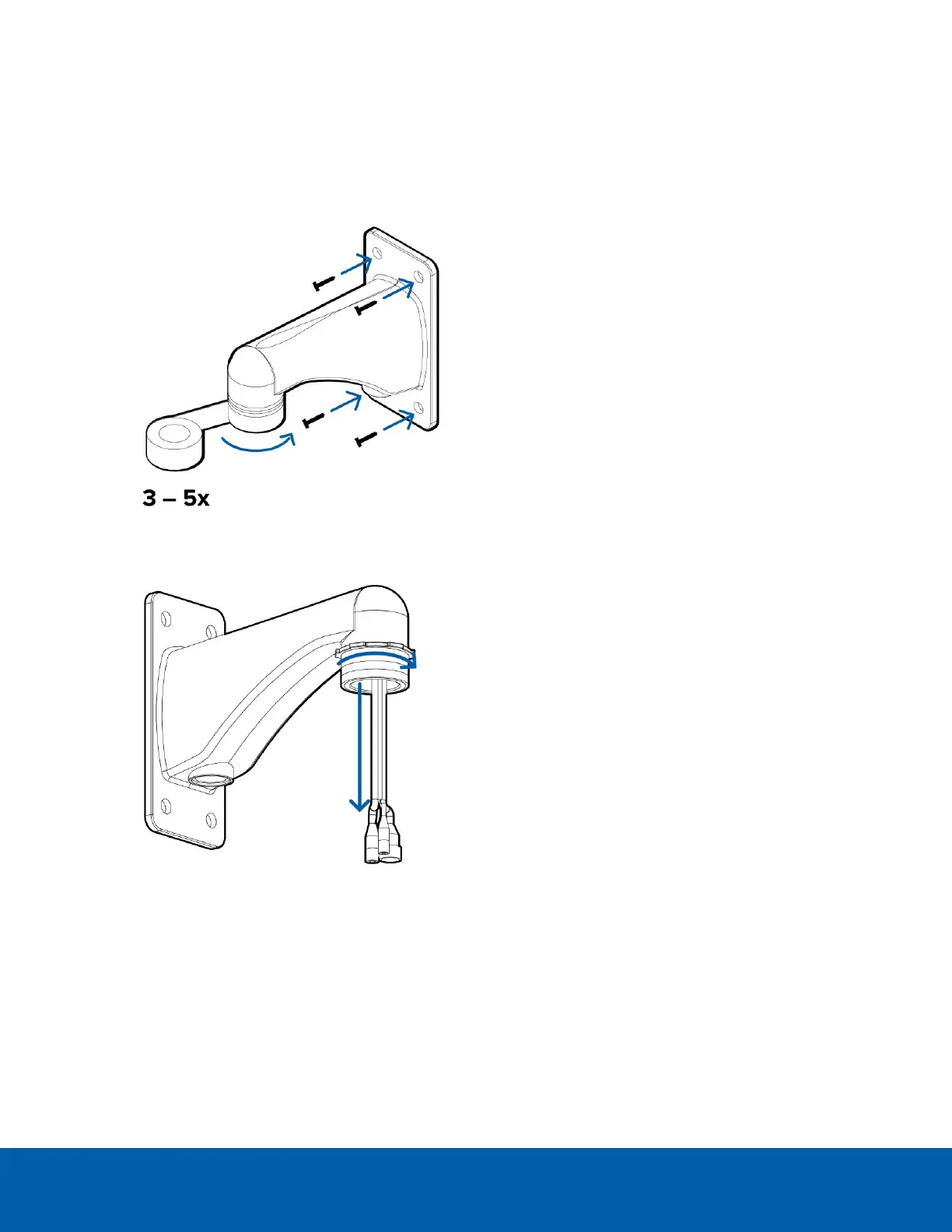

1. Wrap the thread of the mounting bracket with the supplied Teflon sealing tape to create a water tight seal
around the camera connection. There should be three to five turns around the entire threaded surface.
When applying the Teflon sealing tape, be sure to wrap in the same direction that the mount will be
tightened. This will ensure the tape does not unravel when installing the mating parts together.
Tip: Always apply Teflon tape to threaded mounts to help prevent the threads from binding.
2. Pull the required cables through the mounting bracket then thread the 1 1/2" NPT locking nut onto the
mounting adapter.
3. Install the supplied connectors and wire assemblies to the cables.
Installing the Female NPT Mount Adapter 8
