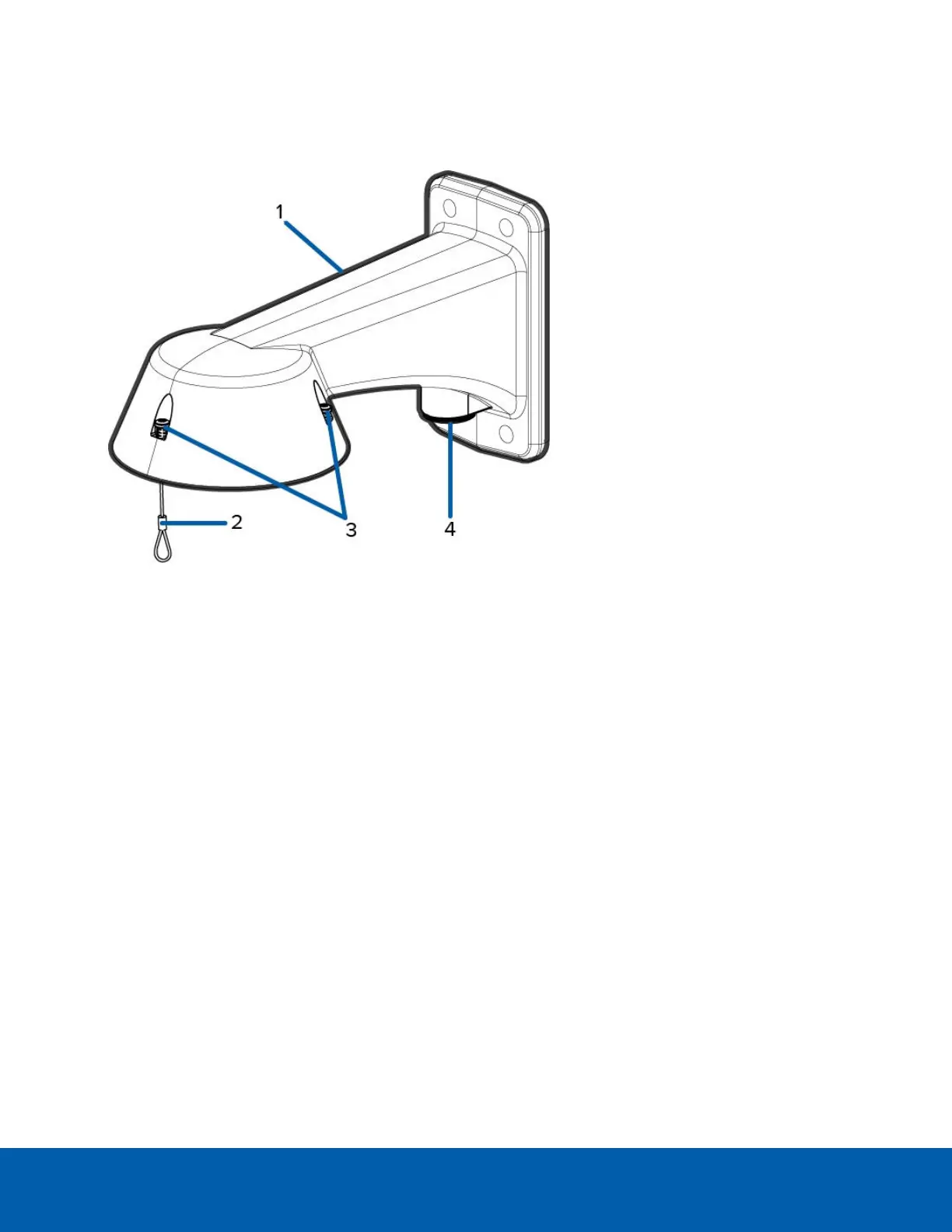

Pendant Wall Mount View
1.
Pendant wall mount
Camera mount for walls and other mounting surfaces.
2.
Lanyard
Connects to the lanyard anchor on the camera base.
3.
Tamper resistant screws
Star captive screws to fix the dome camera to the mounting adapter.
4.
NPT pipe entry hole
A 3/4” NPT threaded hole for NPT pipe conduits.
Pendant Wall Mount View 4

Table of Contents

Other manuals for Avigilon H5A

Preview: Instruction Manual
Instruction Manual36 pages
Preview: Quick Start Guide
Quick Start Guide18 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Avigilon H5A and is the answer not in the manual?

Avigilon H5A Specifications

General IconGeneral
IR IlluminationYes
Impact ProtectionIK10
Local StorageMicroSD card slot
Sensor TypeCMOS
WDRYes
AnalyticsObject Detection, Unusual Motion Detection, Face Detection
Ingress ProtectionIP66
SensorProgressive Scan CMOS
LensMotorized varifocal
Day/NightYes
Video CompressionH.264, H.265
Frame RateUp to 30 fps
AudioYes (2-way)
PowerPoE (IEEE 802.3af/at)
Onvif ComplianceYes
Focal Length2.8 mm to 12 mm
Minimum Illumination0 lux
Network Interface10/100 Ethernet
ResolutionUp to 8 MP (3840 x 2160)
Field of ViewH: 108° to 32°
