Avigilon H5A Installation Guide

Overview

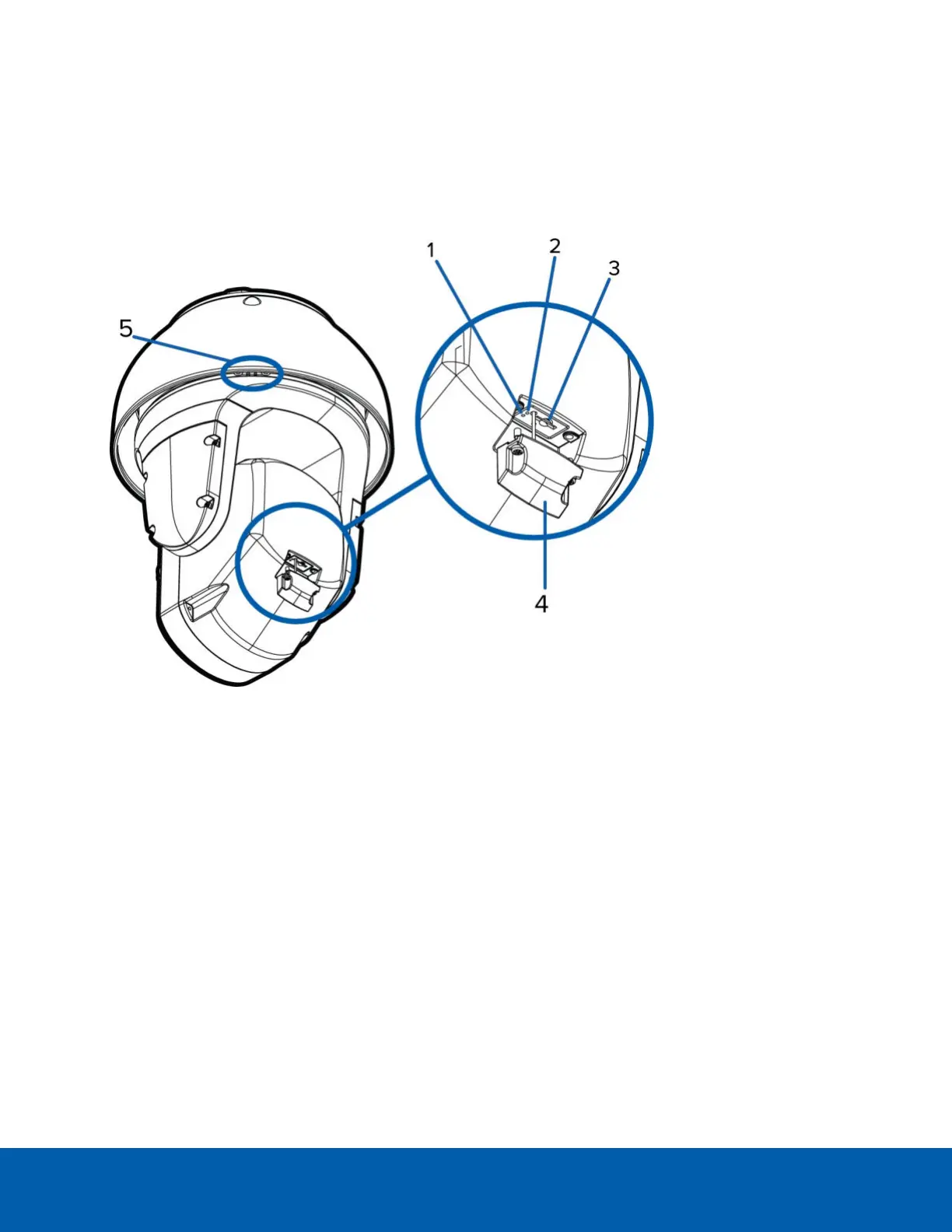

Rear View
1.
Link LED indicator
Amber LED indicates if there is an active connection in the Ethernet port.
2.
Connection status LED indicator
Green LED provides information about device operation. For more information, see
ConnectionStatus
LEDIndicatoron page23.
3.
microSD card slot
Accepts a microSD card for onboard storage. For more information, see
(Optional)Configuring
OnboardStorageon page15.
4.
microSD cover
Protective cover for the microSD card slot. Uses tamper resistant screws to secure the cover.
5.
Sprayer mounting location
An optional washer can be mounted at this location for cleaning the lens and IR window . Connect
digital output 1 from the camera to the washer pump. This will allow the camera WebUI or Avigilon
Control Center to activate the washer whenever a washing sequence is initiated. For more
information, please refer to the PTZCameraWebInterfaceUserGuide. The washer and cleaning
liquid are sold separately.
Install the sprayer mounting bracket by tightening the provided screws into this location.
Overview 1

Avigilon H5A Specifications

General

IR Illumination	Yes
Impact Protection	IK10
Local Storage	MicroSD card slot
Sensor Type	CMOS
WDR	Yes
Analytics	Object Detection, Unusual Motion Detection, Face Detection
Ingress Protection	IP66
Sensor	Progressive Scan CMOS
Lens	Motorized varifocal
Day/Night	Yes
Video Compression	H.264, H.265
Frame Rate	Up to 30 fps
Audio	Yes (2-way)
Power	PoE (IEEE 802.3af/at)
Onvif Compliance	Yes
Focal Length	2.8 mm to 12 mm
Minimum Illumination	0 lux
Network Interface	10/100 Ethernet
Resolution	Up to 8 MP (3840 x 2160)
Field of View	H: 108° to 32°
