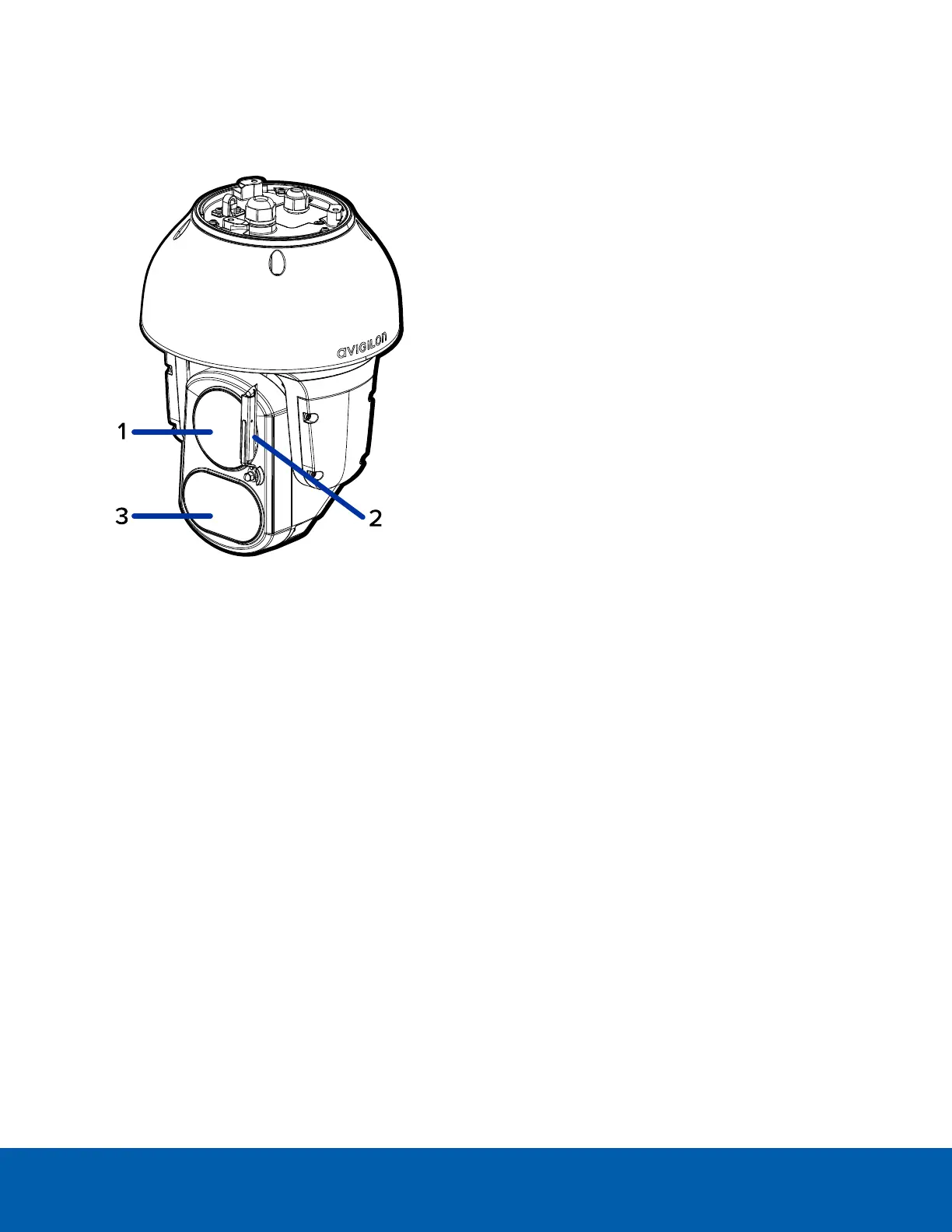

Front View
1.
Lens
The camera lens is housed behind a protective window.
2.
Wiper
Wiper rotates 180° to clean both lens and IR window.
3. Variable IR Illuminators
High powered infrared LEDs with variable field of view to accommodate different low light situations.
The IR illuminators are housed behind a protective window.
Front View 2

Table of Contents

Other manuals for Avigilon H5A

Preview: Instruction Manual
Instruction Manual36 pages
Preview: Quick Start Guide
Quick Start Guide18 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Avigilon H5A and is the answer not in the manual?

Avigilon H5A Specifications

General IconGeneral
IR IlluminationYes
Impact ProtectionIK10
Local StorageMicroSD card slot
Sensor TypeCMOS
WDRYes
AnalyticsObject Detection, Unusual Motion Detection, Face Detection
Ingress ProtectionIP66
SensorProgressive Scan CMOS
LensMotorized varifocal
Day/NightYes
Video CompressionH.264, H.265
Frame RateUp to 30 fps
AudioYes (2-way)
PowerPoE (IEEE 802.3af/at)
Onvif ComplianceYes
Focal Length2.8 mm to 12 mm
Minimum Illumination0 lux
Network Interface10/100 Ethernet
ResolutionUp to 8 MP (3840 x 2160)
Field of ViewH: 108° to 32°
