4. Standing before the front of the appliance, pull the appliance cover towards you until it slides off.

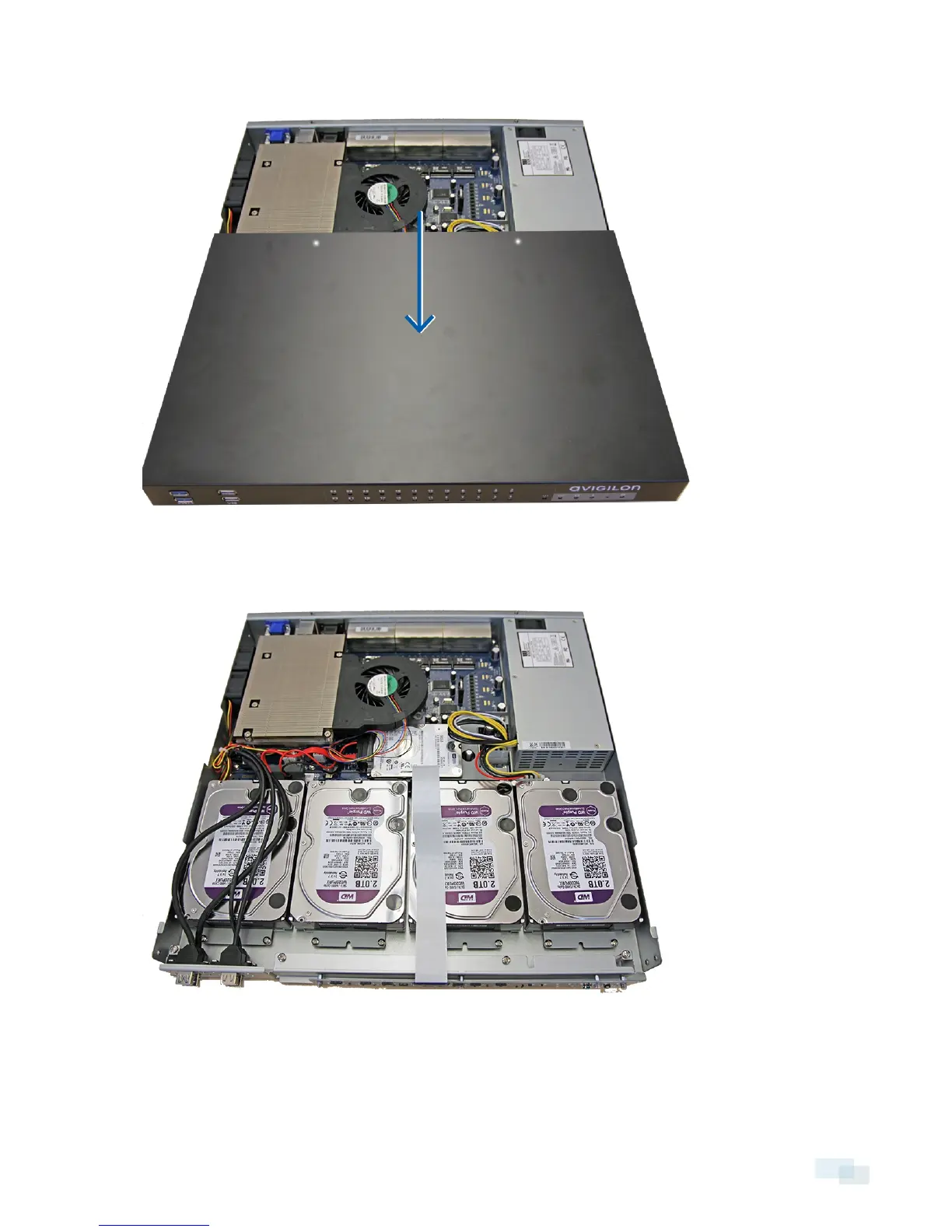

Figure 10: Pull the cover off the HD Video Appliance from the front.
Once the cover has been removed, you will see the four hard drives at the front. The hard drives are
numbered Disk 1 to 4 from left to right.
Figure 11: HD Video Appliance with the cover removed.
5. Remove the two silver screws attached to the hard drive base plate at the front of the appliance.
6. From the back of the hard drive, push the hard drive towards you until it is released from the appliance.
Replacing a Hard Drive 24
