AVM Fritz!Box User Manual

Connecting to the Power Supply and to DSL
FRITZ!Box – 2 Starting FRITZ!Box Operation 13
2.2 Connecting to the Power Supply and
to DSL
First connect FRITZ!Box to the power supply and to DSL. For
this step you need the power supply unit and the black DSL
cable.
Perform the following steps:
1. Connect FRITZ!Box to the power supply using the power
supply unit.
Use only the mains adapter included with delivery. The
use of other adapters may cause malfunctions.
The “Power” LED on FRITZ!Box starts to flash.
2. Connect FRITZ!Box to the DSL line using the black DSL
cable.
Insert one end of the cable into the DSL socket on
FRITZ!Box and the other end in the socket labeled
“DSL” on the DSL splitter.

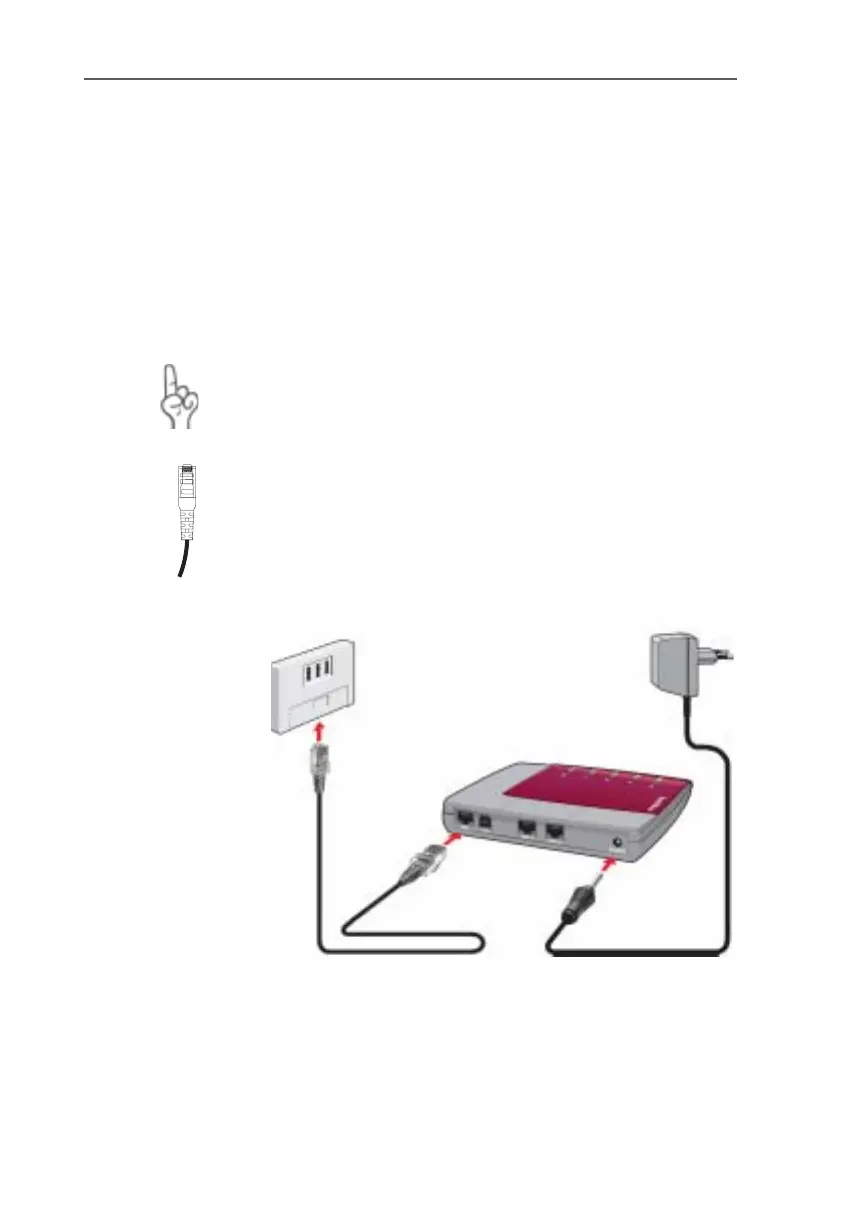

Connecting FRITZ!Box to the power supply and to DSL
FRITZ!Box
DSL splitter
Power
supply
unit
DSL cable
Power cable
FRITZ!Box-e.book Seite 13 Donnerstag, 8. Juli 2004 9:37 09

AVM Fritz!Box Specifications

General

DSL Standard	VDSL2, ADSL2+
VoIP	Yes
DECT Base Station	Yes
Type	Modem/Router
Wireless Standard	Wi-Fi 6 (802.11ax)
Annex Types	Annex A, Annex B
USB Ports	2
Ethernet Ports	4
Ports	1 x DSL
Frequency Band	2.4 GHz, 5 GHz
Security	WPA3
Power Supply	External power adapter
