11. OUTPUT SETTING

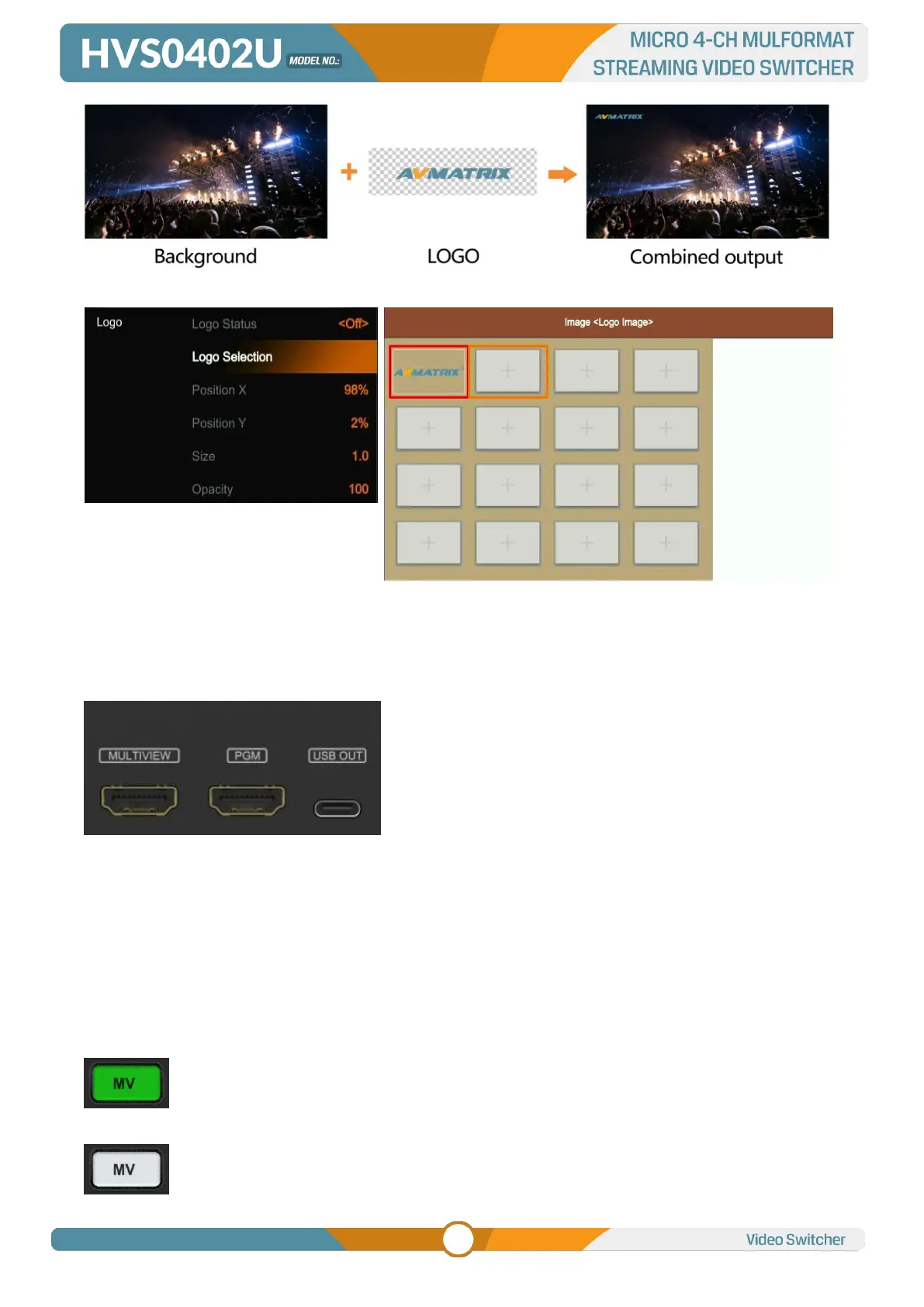

11.1. Output Interfaces
HVS0402U has 3 output interfaces. They are default as
Multiview Out, PGM Out and USB Out. All the 3 outputs also
can be defined as an AUX OUT from HDMI1, HDMI2, HDMI3,
HDMI4, PVW, PGM, Clean PGM, Color Bar and Multiview out.
11.2. Multiview Out
The defaulted output of multiview port is the Multiview, the LED indicator of MV button in the front panel is
green. User can connect it to an additional LCD display to monitor the 4 HDMI inputs, PVW, PGM and
status interface clearly. User can also configure the output of multiview port to other options according to
their application requirement. When Multiview output is defined as other output, for example HDMI 1, user
can press the MV button to quickly switch the output between multiview out and configured HDMI 1.
: LED indicator on, multiview output port shows the Multiview.
: LED indicator off, multiview output port shows the configured other output.
