13.3.3. Capture Image
The capture image comes from screenshot of HDMI 1, HDMI 2, HDMI3, HDMI 4, Clean PGM, PGM. The
captured image will be listed in the media list. Up to 16 captured images supported. User can press the
rotary button to select the captured image as source for PVW/ PGM pattern by selecting the option Select.

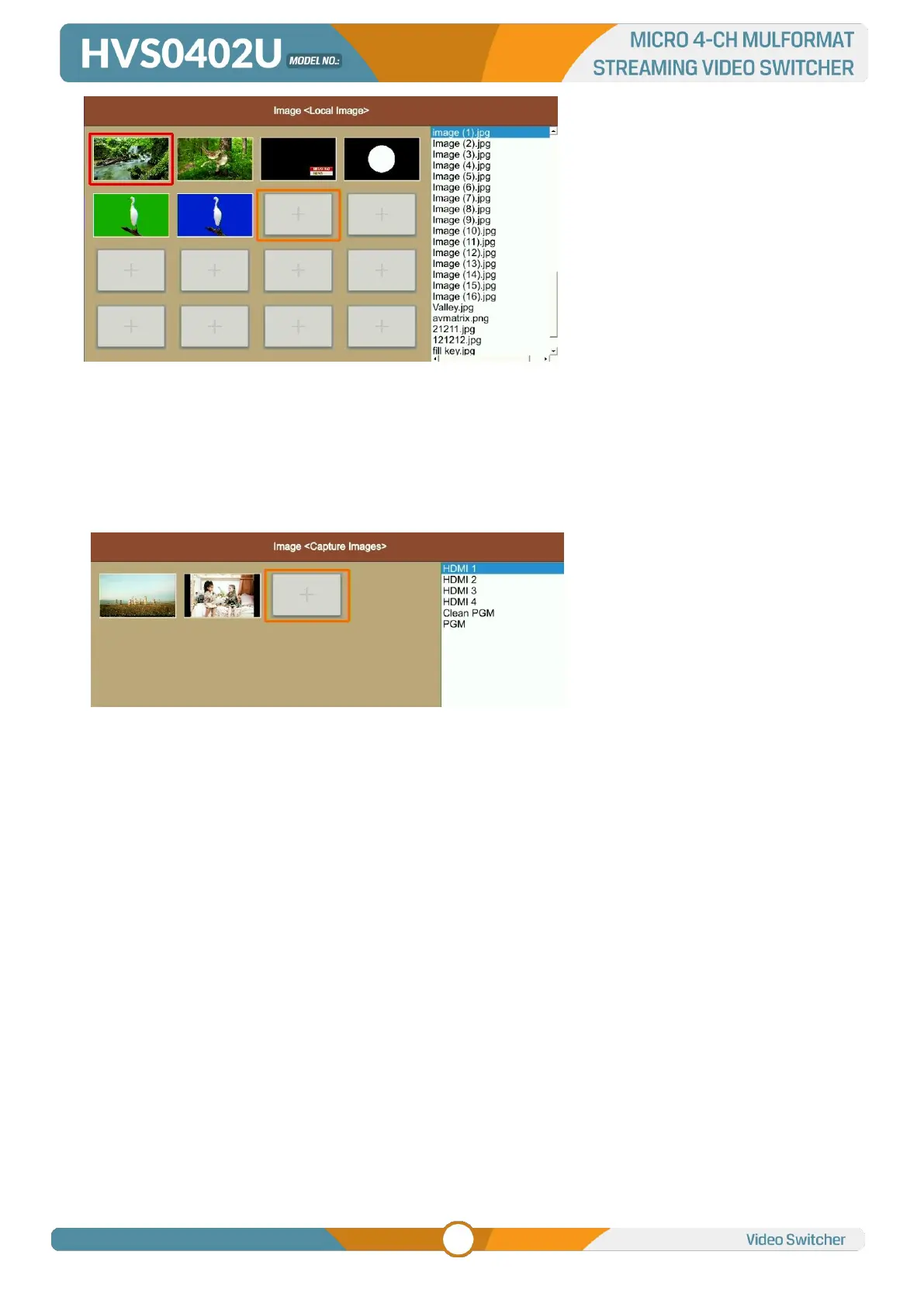

User can delete the captured image from the menu. See below images.
14. SYSTEM SETTING
14.1. Language
Entering system settings from the menu to switch the system language between English and Chinese.
14.2. Fan Setting
Setting the cooling fan speed to control the temperature and noise of the switcher. There are 3 options,
AUTO/ OFF/ ON.
The default setting of the fan is in AUTO mode that the speed of the fan is adjusted automatically
depending on the switcher’s operating temperature. If the working environment requires special quiet for
a special application, the user can turn off the fan manually from the menu. And when the switcher’s
operating temperature is increasing and reaching a preset value (57 Degrees Celsius), the words in the
bottom of the Status/Menu page will turn to Orange color to warning. And when the operating temperature
reach to 60 Degrees Celsius, the fan will be auto turned on in a high speed to cool down the CPU quickly
and switch the fan to AUTO mode at the same time. If the switcher is working in a high temperature
environment, the auto fan setting cannot meet the cooling requirement, then user can select the fan
setting to ON option to keep the fan in high speed.
