1. BRIEF INTRODUCTION
1.1. Overview

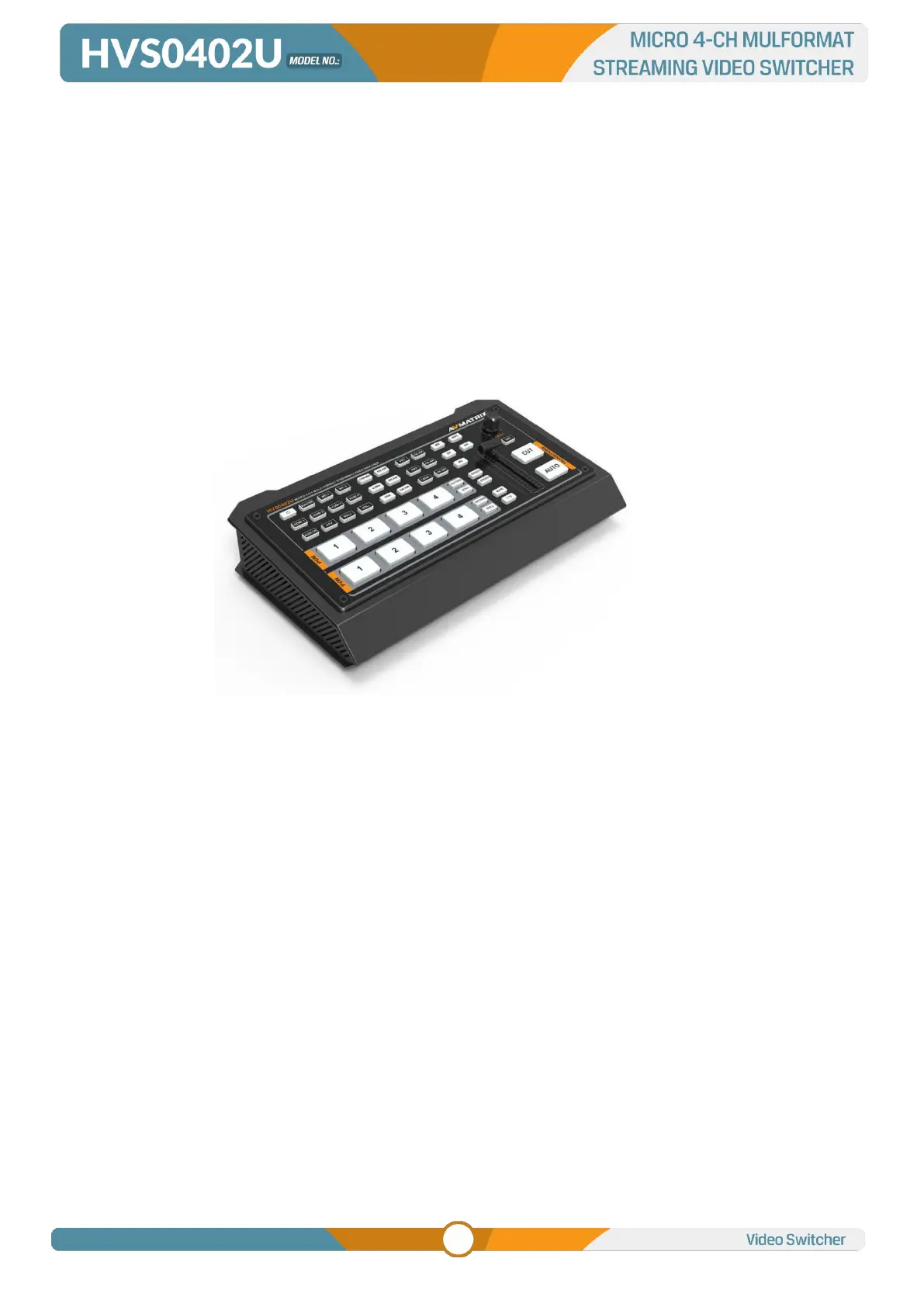

HVS0402U is a 4-channel HDMI multi-format video Switcher with compact metal case design. It supports
various functions including video switching, audio mixing, PGM/ multiview/ Aux out, different transition
effects, Luma Key Chroma Key, DSK, LOGO, PIP/ POP, media library, pattern and color generator, etc.
Inputs support multi-format, PGM output can be scaled, compatible with a variety of equipment. The unit
supports stream performances and presentations on PC through the USB-C port. User can also
customize different settings and import or export the configuration quickly for various scenarios. It’s a
powerful and professional video switcher for your choices.
1.2. Main Features
 4 channel auto-detected HDMI inputs
 1×HDMI PGM output,1×HDMI multiview out, 1×USB type-C output
 AUX output configurable and assignable
 USB-C for capturing and streaming on PC

Clearly visible multiview & status page

Upstream key: Luma key, Chroma key, PIP×2/ POP
 Downstream key and LOGO overlay
 T-bar/ Auto/ Cut transitions; various effects: WIPE(9×2 patterns) / MIX/ DIP
 Audio mixer: HDMI embedded audio and 2-Ch MIC/ line In; audio delay available
 Media library: 49 default patterns, 16 imported images, 16 captured images, 2 color generators

LAN port for PC software remote control
 Customer configuration import and export

FTB/ MUTE/ STILL/ GPIO for tally
