Avocent AutoView 1415 - Figure 2.5: Autoview Switch Configuration with Autoview 1415;1515;2015 Switches

14 AutoView 1415/1515/2015 Switch Installer/User Guide

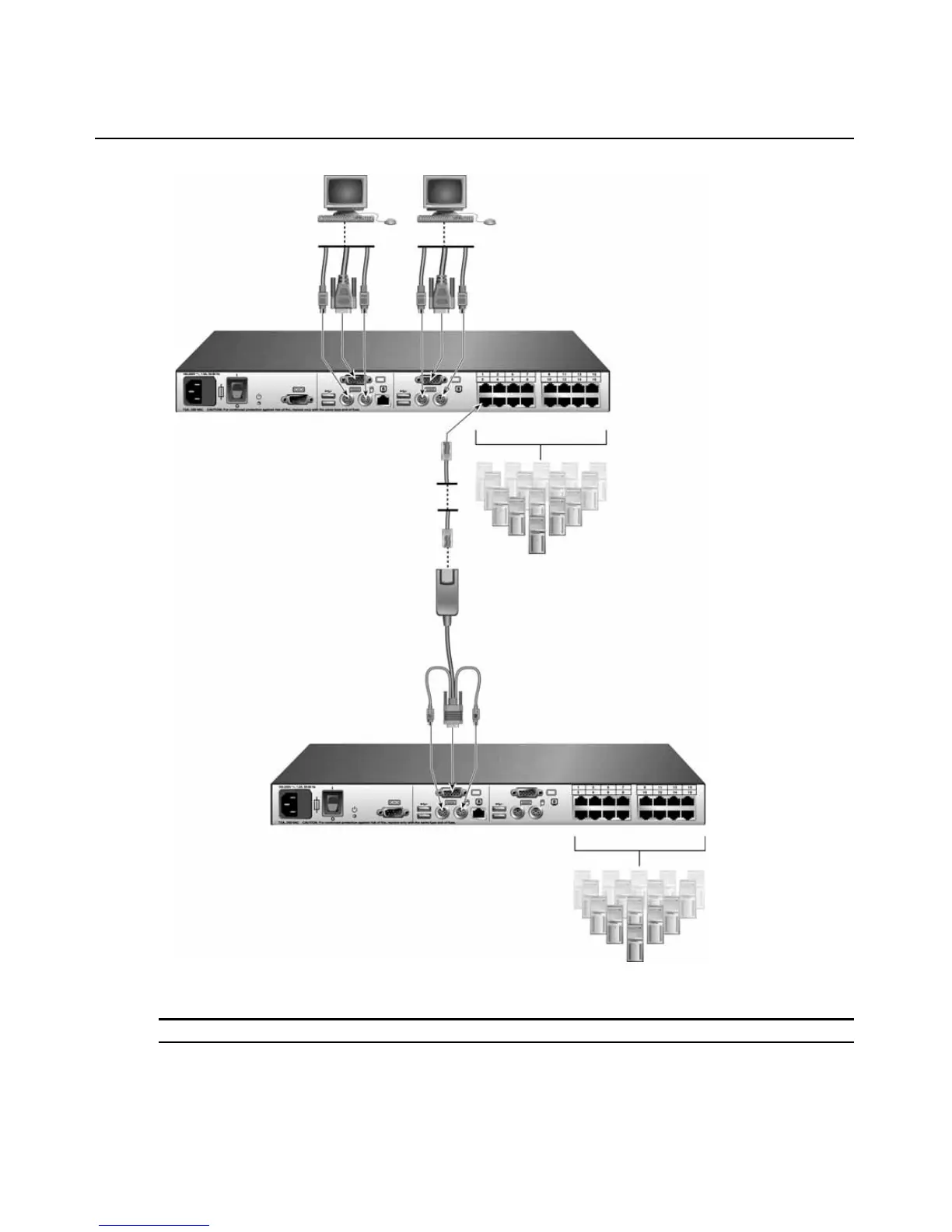

Figure 2.5: AutoView Switch Configuration with AutoView 1415/1515/2015 Switches
NOTE: The PS2IAC modules can be utilized in Figure 2.5.
AutoView 1415/1515/2015 Switch
Local Analog User A
Local Analog User B
AVRIQ Module
PS/2, USB, Sun and serial
modules are available
Secondary
Servers
AutoView 1415/1515/2015 Switch
Secondary
Servers
