Chapter 3: Local Port Operation 29

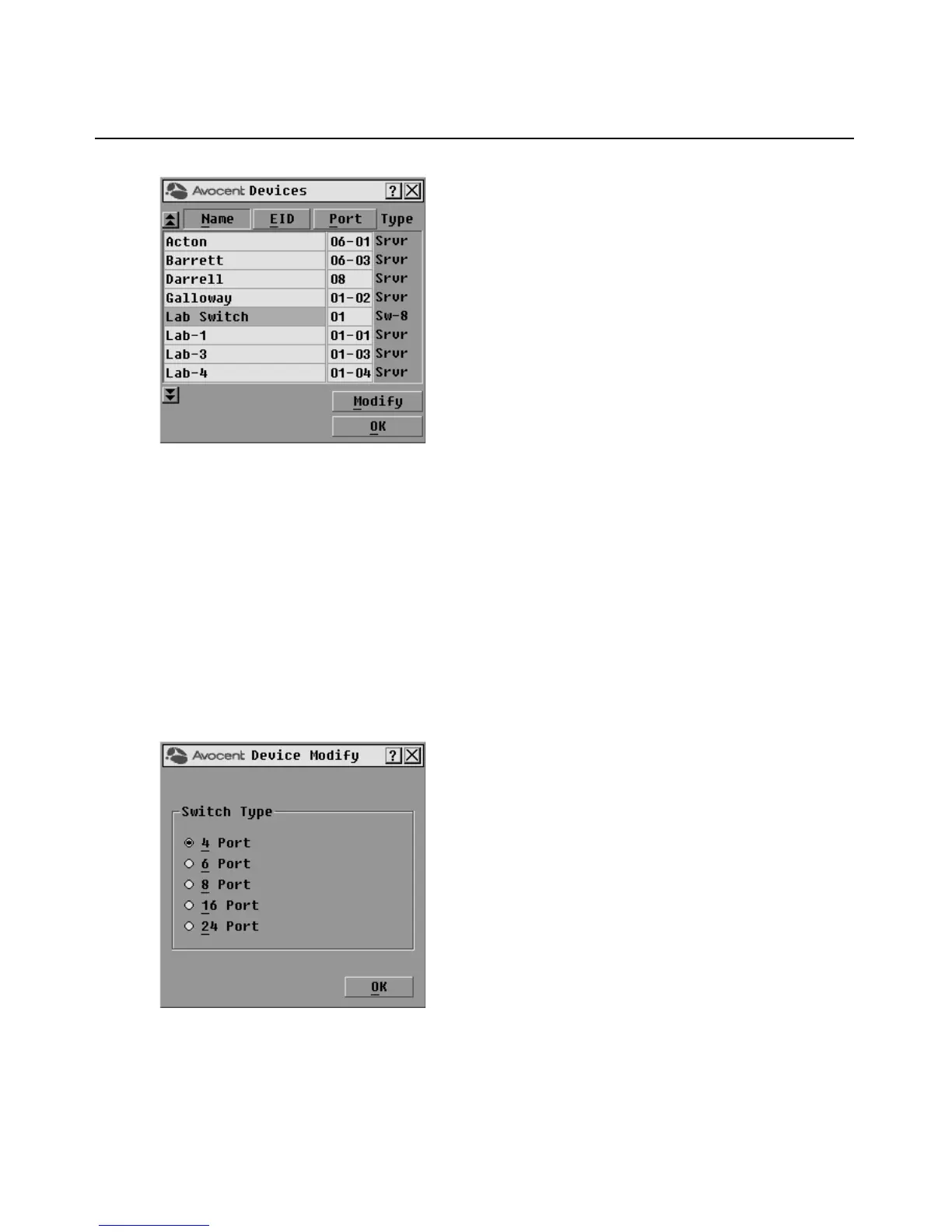

Figure 3.12: OSCAR Interface Devices Dialog Box
When the AutoView 3050/3100/3200 switch discovers a cascaded switch, the numbering format
changes from an AutoView 3050/3100/3200 port only to [AutoView 3050/3100/3200 port]-[switch
port] to accommodate each target device under that switch.
For example, if a switch is connected to AutoView 3050/31
00/3200 port 6, each target device
connected to it would be numbered sequentially. The target device using AutoView 3050/3100/
3200 port 6, switch port 1, would be 06-01, the target device using AutoView 3050/3100/3200 port
6, switch port 2, would be 06-02, and so on.
To assign a device type:
1. In the Devices dialog box, select the desired port number.
2. Click Mod
ify to open the Device Modify dialog box shown in Figure 3.13.
Figure 3.13: OSCAR Interface Device Modify Dialog Box
3. Choose the number of ports supported by your switch and click OK.
