Avocent DSR Series - Figure B.1: Using the DSR Remote Operations Software with a DSR Switch; Table B.1: Descriptions for Figure B.1

4
5
8
7
6
10
9
1
2
3
11
70 DSR Switch Installer/User Guide

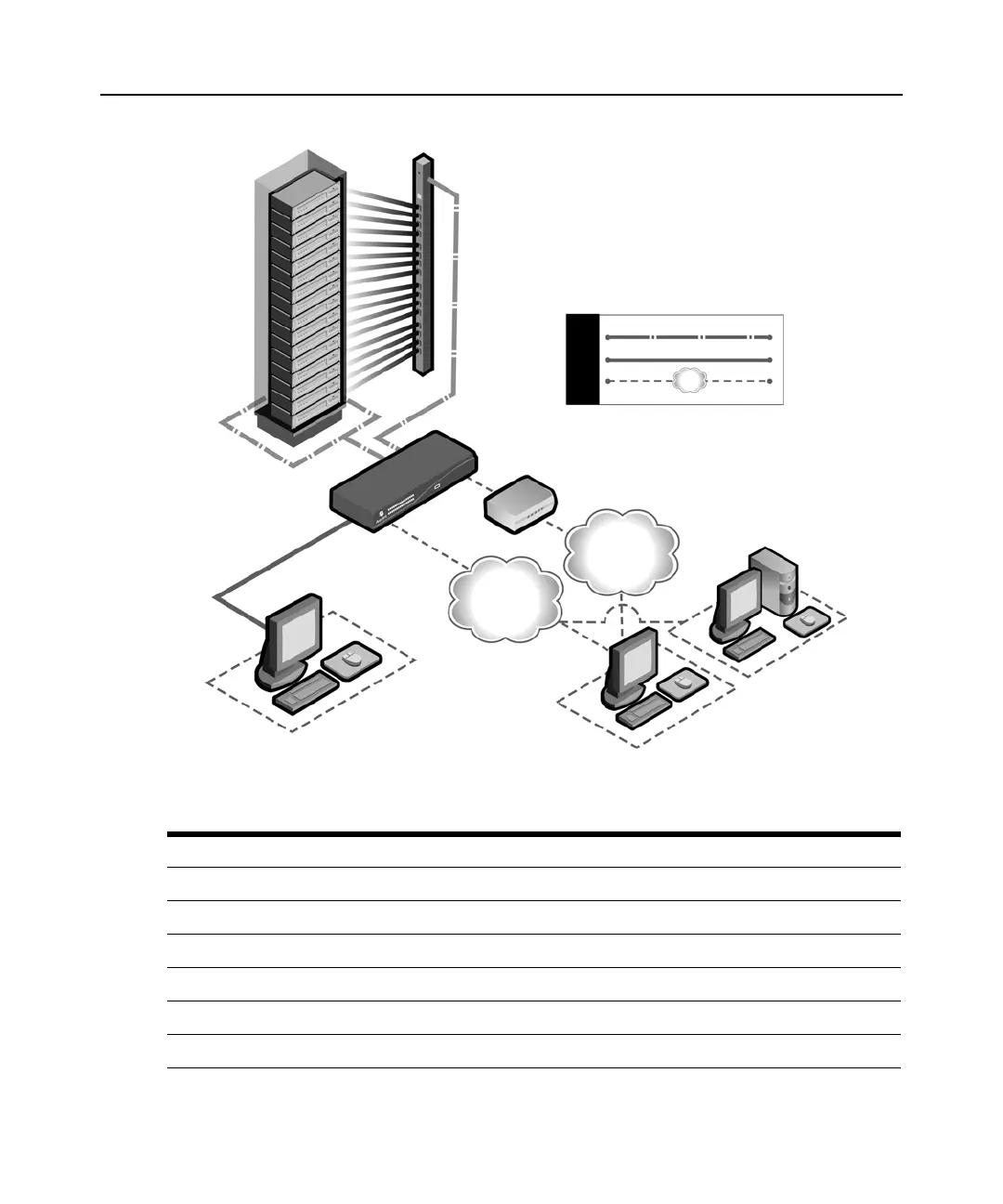

Figure B.1: Using the DSR Remote Operations Software with a DSR Switch
Table B.1: Descriptions for Figure B.1
Number Description Number Description
1 CAT 5 Connection 7 Analog User (OSCAR Interface)
2 KVM Connection to Switch 8 Ethernet
3 Remote IP Connection 9 Telephone Network
4 Power device 10 DSR Remote Operations Client
5 DSR Switch 11 DSView 3 Software Server (Authentication)
6 Modem
