To connect the LongView 1000R receiver:
1. Select a convenient location for your LongView 1000R receiver.
2. Plug your keyboard, monitor and mouse cables into the appropriate ports on the back of
the LongView 1000R receiver.
3. Insert one end of a UTP cable into the LINK port on the rear of the LongView 1000R receiver.
4. Route the UTP cable to the AMIQDM module at the remote server up to 1000 feet (300
meters) away and connect them together.

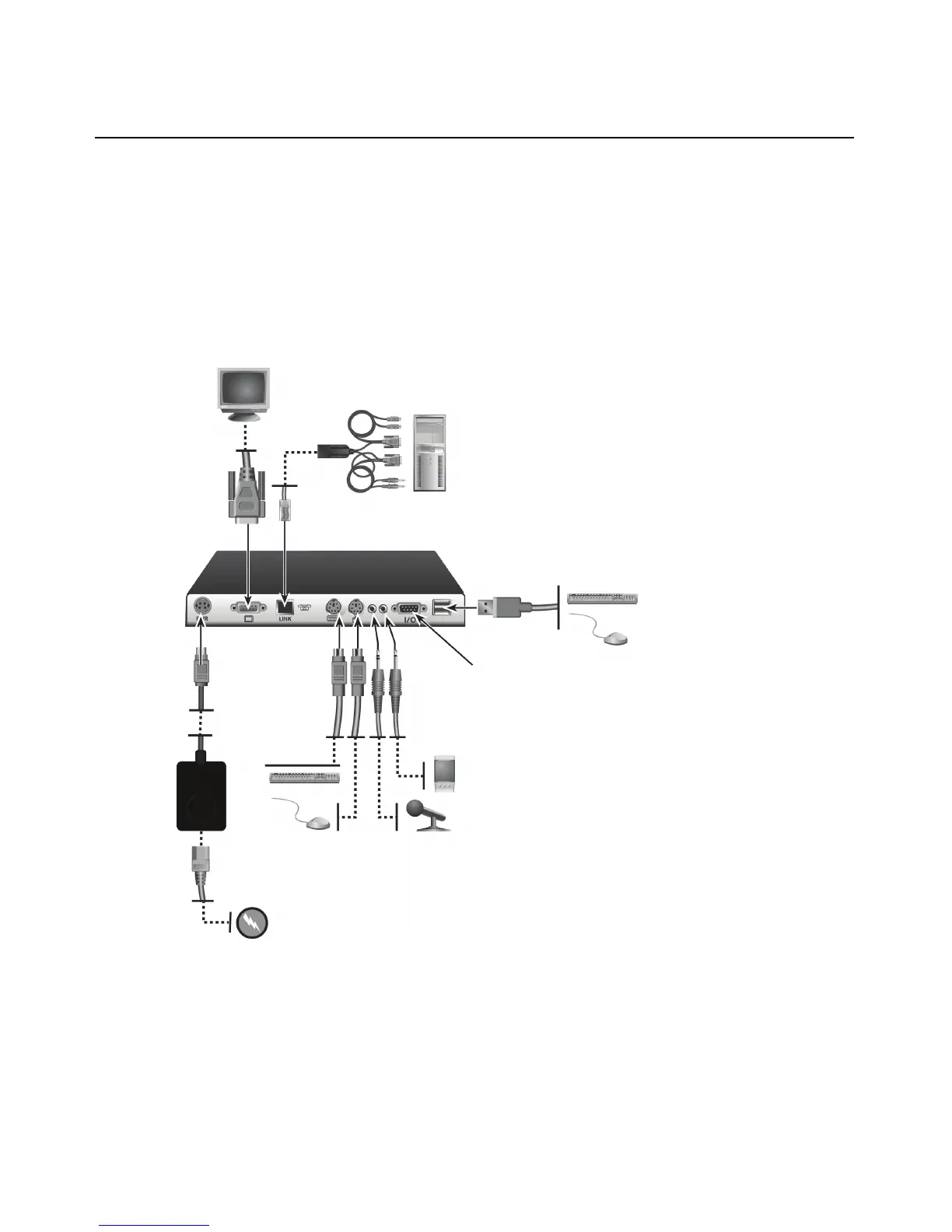

Figure 2.1: LongView 1000R Receiver and AMIQDM Module Installation
1
4
2
6
3
5
