- 19 -
IST0570V3.1

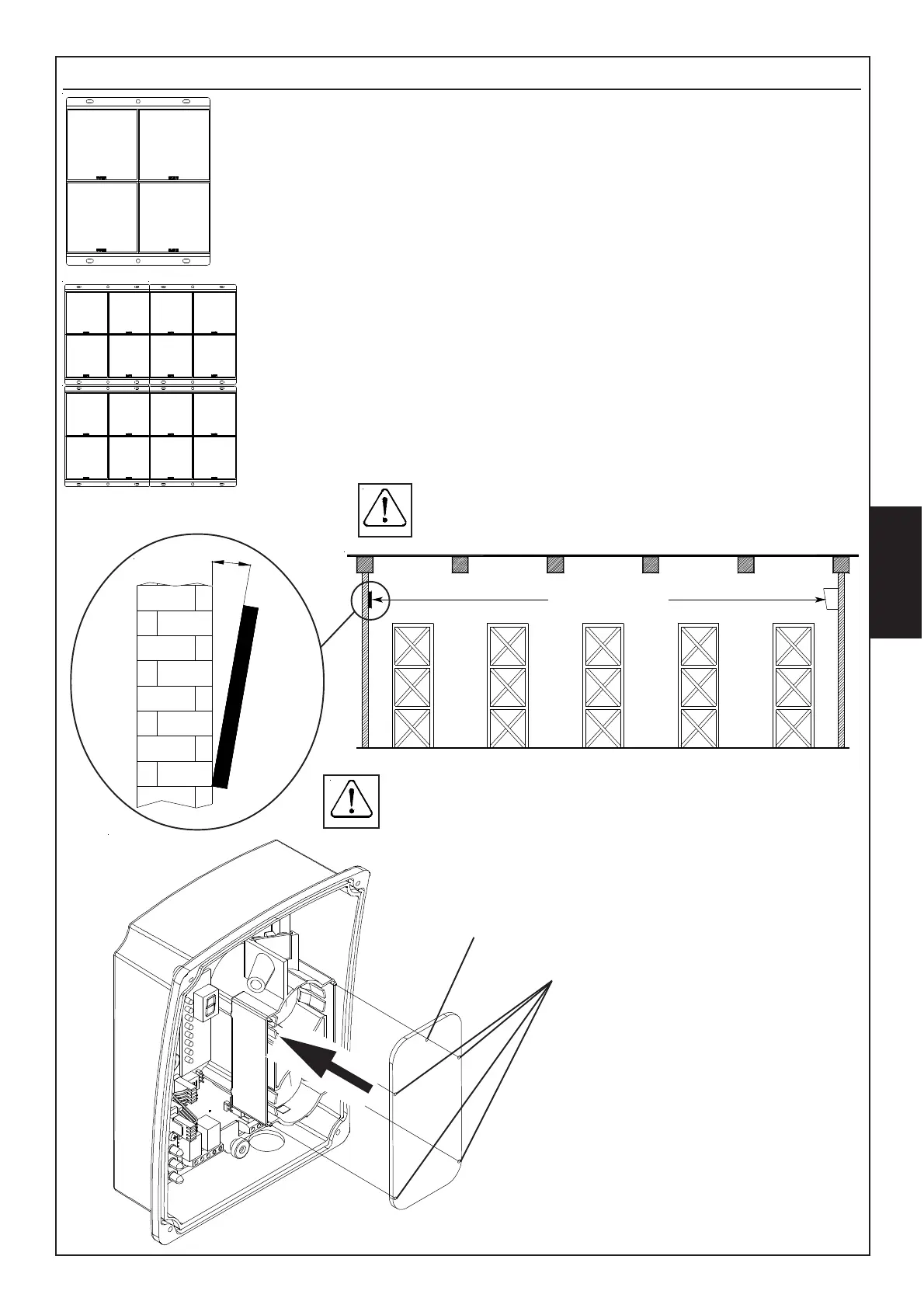

Install reflector maintaining it in axis with the beam.
For distance between 5 and 70 meters use only the reflecting panel you find
within the beam in order to have a reflecting surface of 20 x 20 cm.
For distance between 70 and 100 meters, add Kit BFS (3 reflecting panels)
to the panel given within the beam in order to obtain a reflecting panel of 40
x 40 cm.
In this case, panels must have all fixing holes in the same direction.
Install the beam maintaining it in axis with the reflector.
Installation
MAX 10°
MIN 5 MT
MAX 100 MT
For correct working, either the beam and the reflector must
be on the same axis. Max tolerance is about 10° in both
vertical and horizontal position.
Exceeding this, the beam will not work properly.
Pointing holes
Fixing holes
Insert small mirror BF TEST (this
accessory is necessary for a
correct adjusting) in right position as
shown on side picture, maintaining the
pointing hole upwards.
For installation onto the wall either reflector and
beam need flat cylindrical-head screws.
