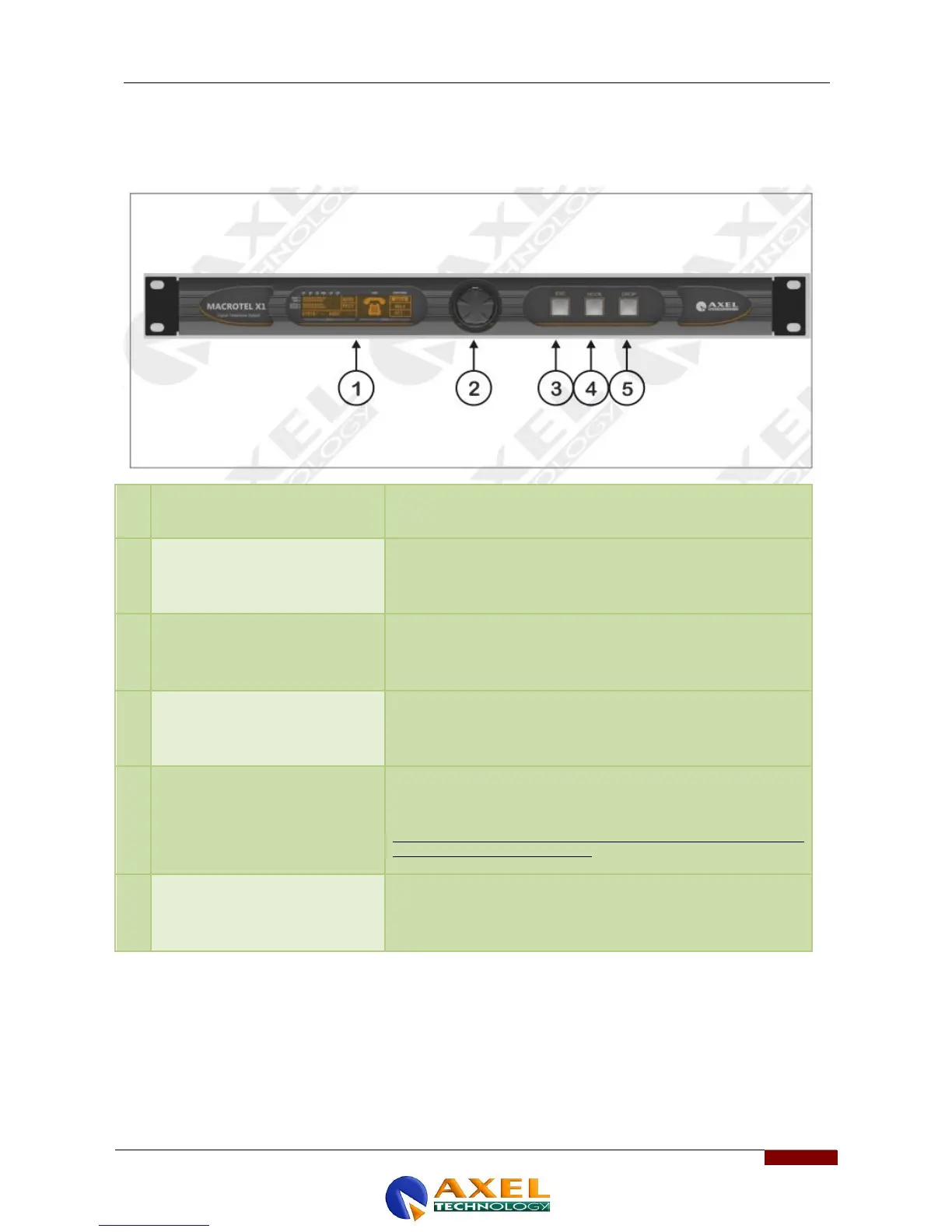

9.1 MACROTEL X1 FRONT PANEL
N°
CONTROL NAME
FUNCTION
1
LCD DISPLAY
Two line LCD Display that shows the status and operating mode of
Macrotel X-D1. The technical parameters of each menu are displayed.
2
JOG-SHUTTLE
Knob (or JogShuttle) to access the various navigation menus and
make changes. Press the JogShuttle to confirm selection.
3
“ESC” KEY
Press this key to delete the changes made or exit the selected menu
4
“HOOK” KEY
Call hook key on the PSTN/POTS line. The Hook LED inside the key
flashes when there is an incoming call and remains switched on for
the entire call from the moment in which the line is hooked. NOTE:
the LED only switches on when the telephone line is connected to the
‘LINE’ socket of the hybrid device.
5
“DROP” KEY
Call unhook key on the PSTN/POTS line. When the DROP key is
pressed the call underway is closed and the previously engaged
telephone line is freed.
