14 DETAIL OF HYBRID REMOTER FOR MACROTEL X1

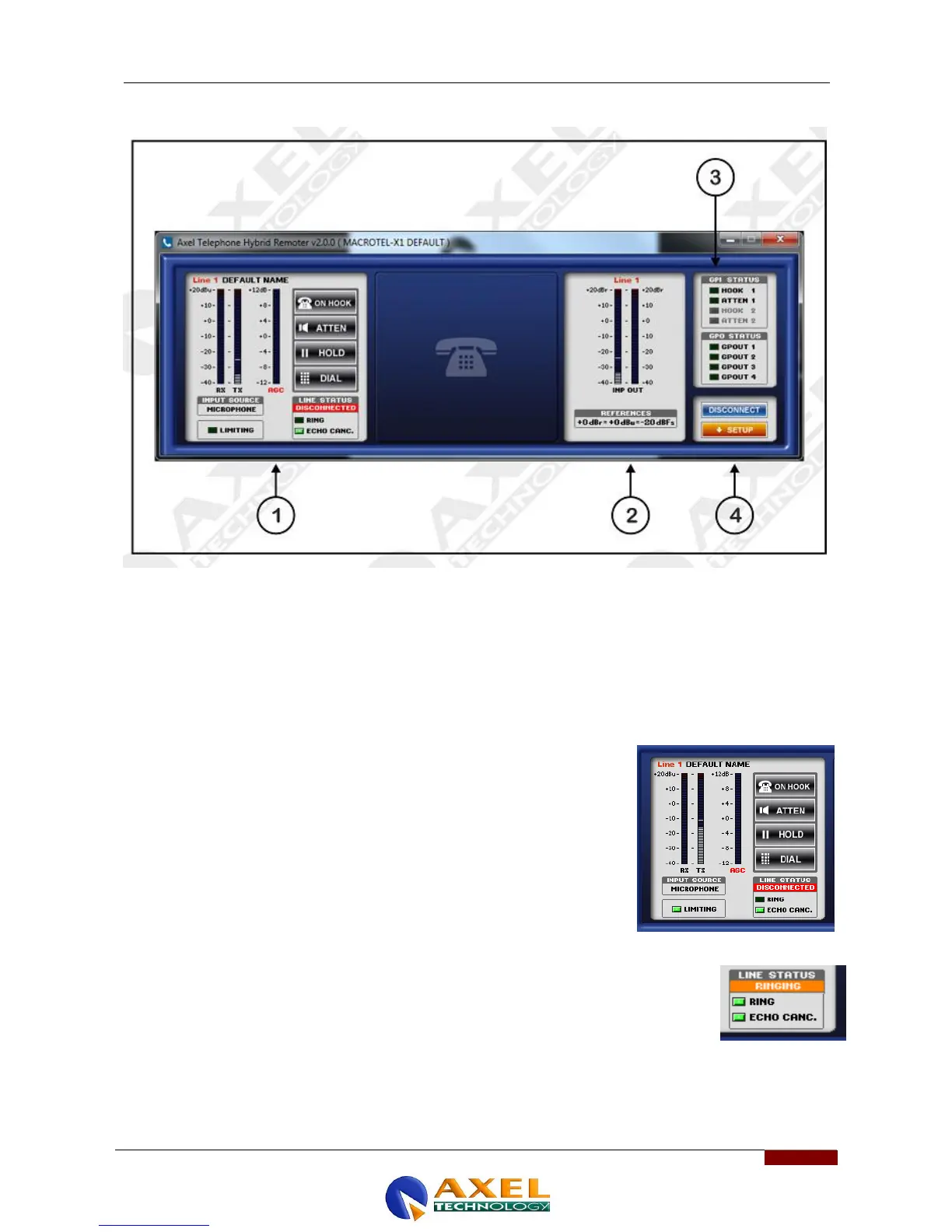

14.1 DESCRIPTION OF MACROTEL X1 CONTROL SOFTWARE
The Macrotel control software (Hybrid Remoter) is basically divided into 4 parts:
1. Hybrid section
2. Levels section
3. GPI / GPO status section
4. Setup & Disconnect section
14.2 HYBRID SECTION
The “Hybrid Section” features a series of operating and monitoring controls relating to
the telephone hybrid connected to a PSTN/POTS line.
The monitoring part concerns the Receive(Rx) and Send (TX) levels and shows
whether Macrotel X1 is in Limiting operating mode; it also shows the line status, ring
and echo canceller. When a parameter is active the relevant green LED lights up (in
this case Echo Canceller is active)
As regards device operation, the controls available are:
ON HOOK – ATTEN – HOLD – DIAL
ON HOOK: in this status Macrotel X1 can hook an incoming call or open the telephone line. Upon
receipt of a call the LED of the incoming call flashes on the front panel and the Hybrid Remoter
displays the RINGING Line Status for the hybrid with the incoming call.
The LED lights up in the GPO Status section. The open collector of the GPIO communication port
closes. See the appendix at the end of this manual for the pinout and connections.
To end a call click OFF HOOK or press DROP on the front panel.
