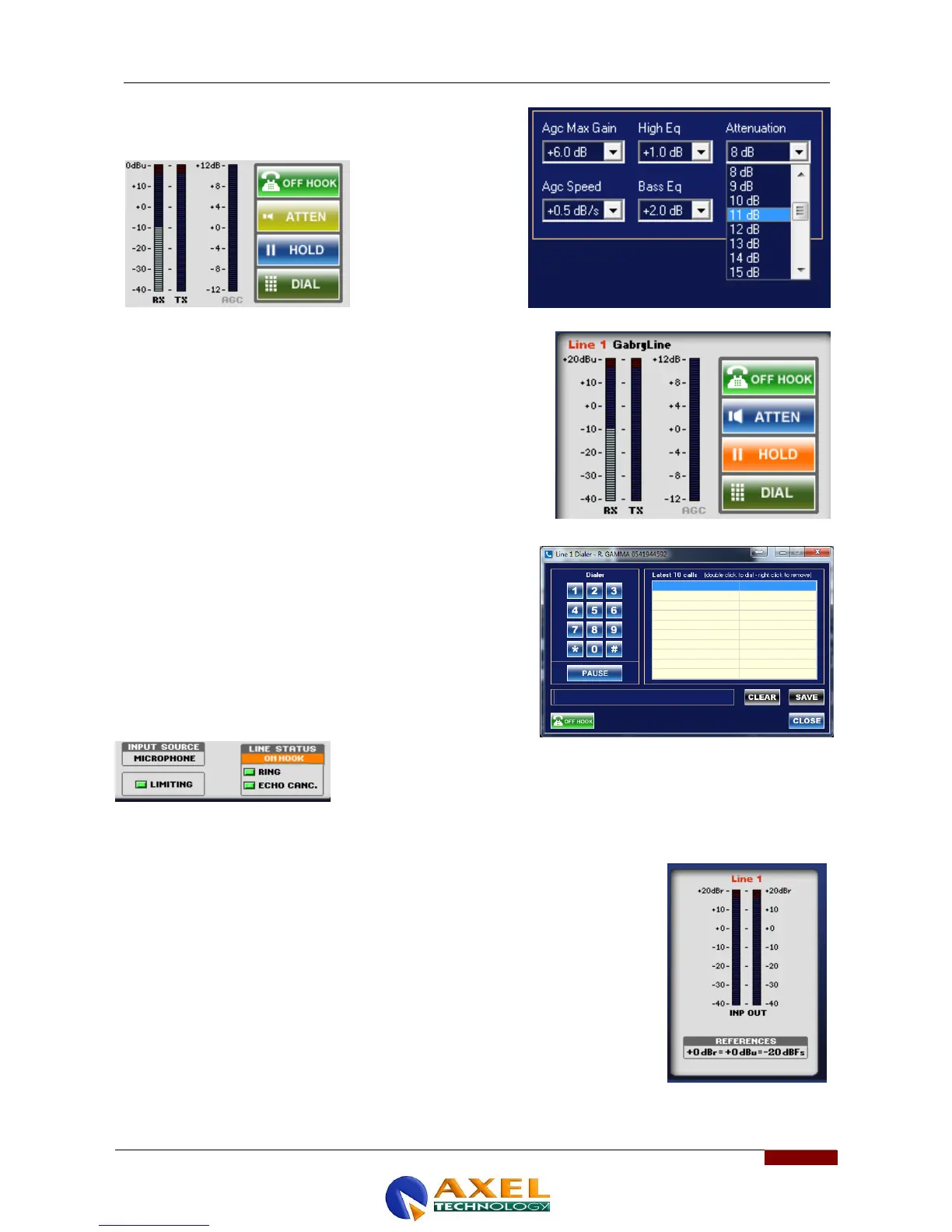

ATTEN: when ATTEN is pressed, a dB reduction equal to the
“Attenuation” value set in the control software is applied to the
Receive signal.
HOLD: when HOLD is pressed via software the Receive (Rx) volume is
taken to –infinity without closing the call.
DIAL: when DIAL is pressed the DTMF dialler opens. Dial the
number using the numerical keyboard of your PC and then click ON
HOOK. In this way the DTMF dials the number to be called on the
telephone line. The Latest 10 Calls section displays the last ten calls;
click SAVE to permanently save a telephone number. To recall a
number double click on it.
Use the right button of the mouse to delete a number (Delete Row
#1) or all the numbers(Delete All) from the list of the Latest 10 calls.
The lower section displays the device statuses and any audio
functions enabled.
INPUT SOURCE: this shows which source is connected to the Macrotel X input.
Analog, Microphone and Tone Gen are available.
The section below the Input Source shows if the “Limiting” control is enabled. The Line Status section displays the status
of the Ring and Echo Canceller controls.
14.3 LEVELS SECTION
The levels section shows the Macrotel X1 input level.
