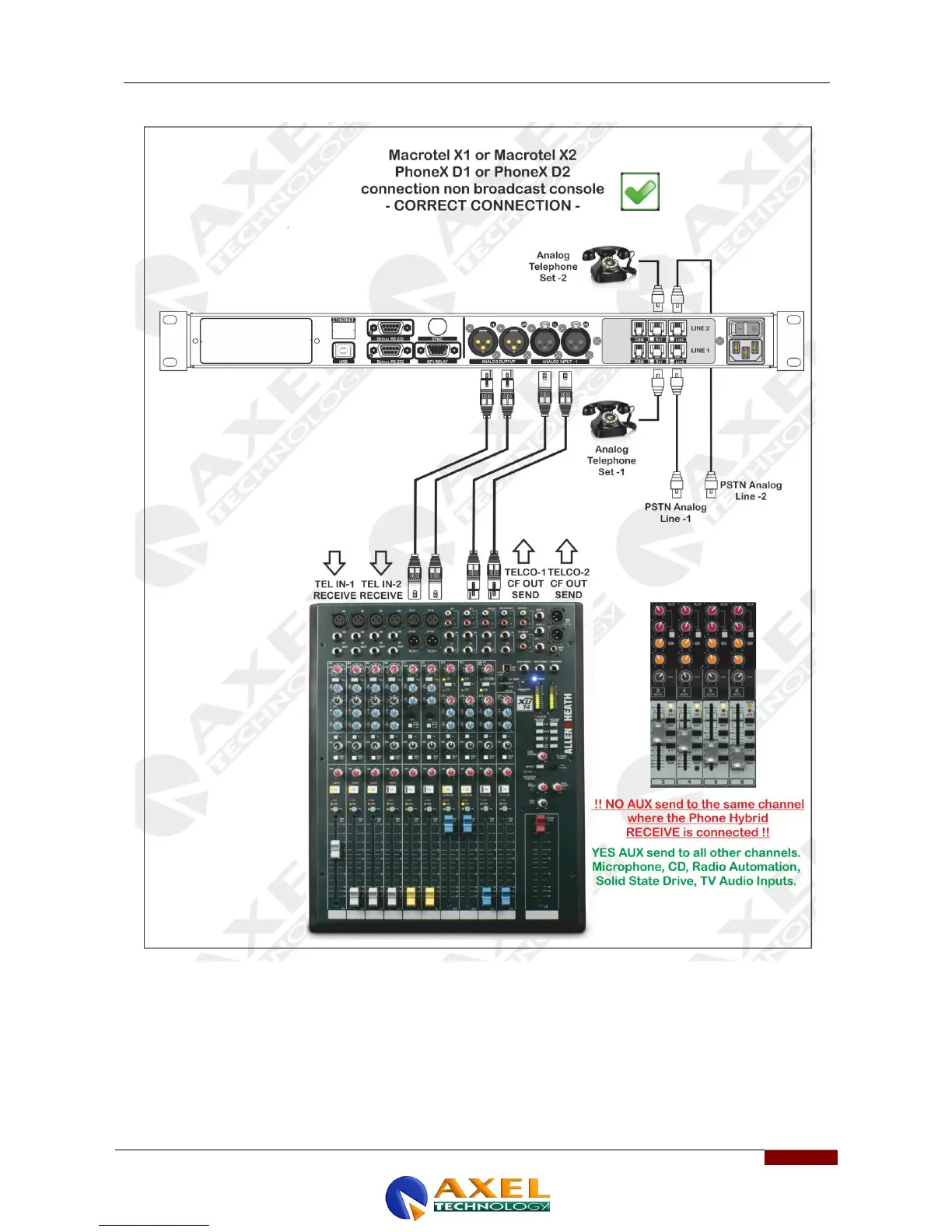

16.9 CONNECTION TO A NON-BROADCAST MIXING CONSOLE -1
This way of connecting the Macrotel or Phonex telephone hybrid, allows the user to connect a “not broadcast” mixing
console. In the example above this console not having all the functionality of a console "Broadcast" feature offers a
service to connect directly to the telephone hybrid mixer.
The telephone hybrid receive is connected to TEL TEL IN-1 and IN-2 while the SEND, that is what is sent to the other
party phone is connected to TELCO CF OUT-1 and OUT-2 TELCO CF.
CF means Clean Feed, and performs a mix minus created without loops and larsen. Otherwise known as N-1, must be
sent from the person phone all the "Program" unless the signal received by the other party phone itself.
