MACROTEL X1 MACROTEL X2 GENERAL DESCRIPTION
| MACROTEL X1 MACROTEL X2 GENERAL DESCRIPTION

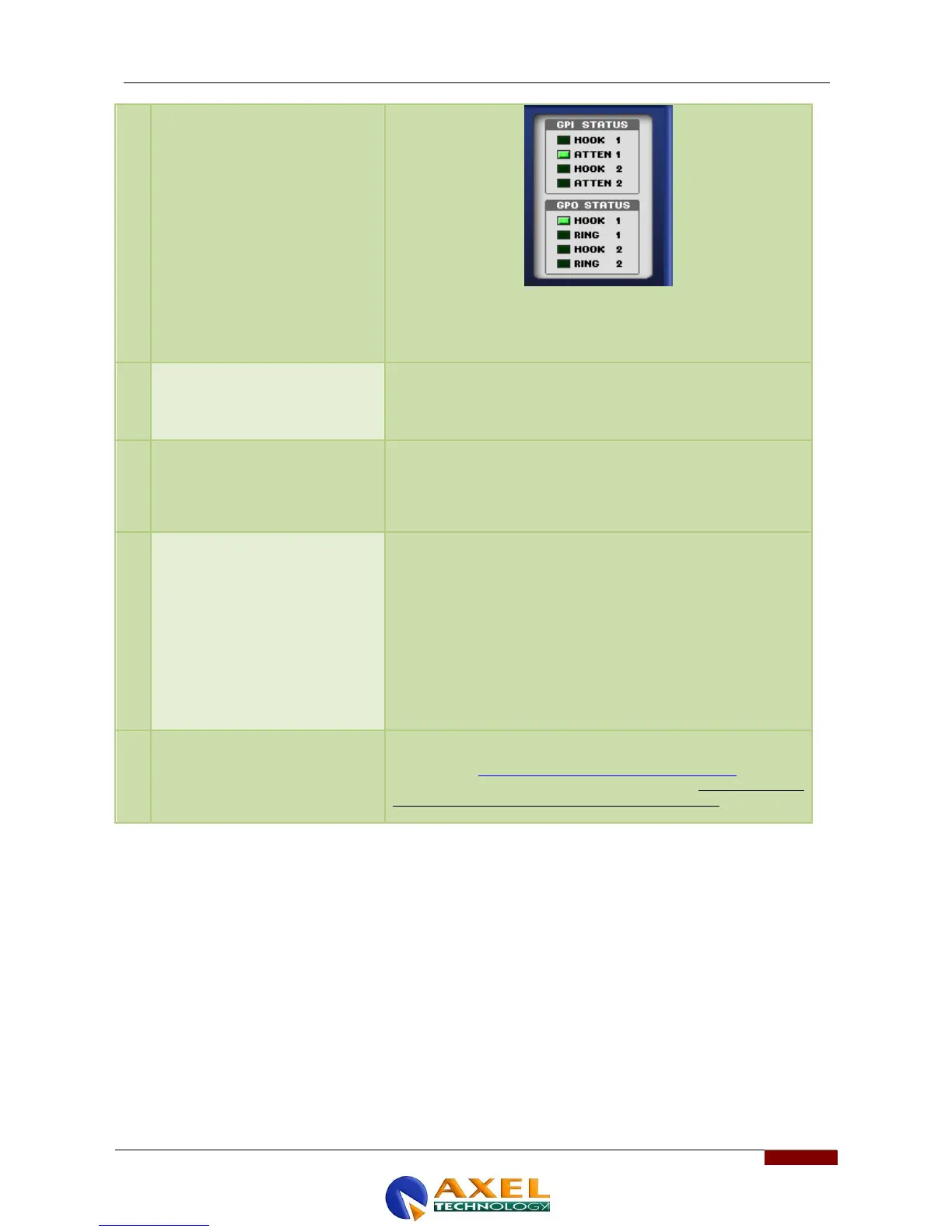

As regards the Opto Interface port pinout see the Appendix at the end
of this manual. For the operation of each GPI and GPO see the
specific section in the next pages of this manual.
Electronically balanced analog audio output of the hybrid, on Balanced
XLR connector, Mono type. The two XLR connectors have the same
output signal.
Input of telephone hybrid, with electronically balanced XLR
connection. This input is for the signal to be sent to the interlocutor via
the telephone line. This signal must be of the Mix-Minus type coming
from N-1 devices or Telco modules.
TELEPHONE UNIT
LINE-1
GSM - SET - LINE
This unit features the RJ11 6/4 connectors to connect the
PSTN/POTS telephone line to the telephone Hybrid n°1 (LINE socket)
and to connect a telephone device in parallel to the hybrid (SET
socket) used, for example to dial the number to call or to answer an
incoming call.
The GSM connector on RJ10 connector is used for the audio
connection to the Wireless GSM module (opt); the connection cable is
supplied together with the Wireless GSM module, together with a
second cable to be connected to the Serial-2 port. See the appendix
at the end of this manual for the connection.
The power supply unit features a switch to switch on the device and a
power socket. To change the fuse see the relevant chapter; the fuse is
inside the device near the switching power supply. The fuse is of the
slow blow type, 230 Vac and 2,000 A equal to 2000 mA
