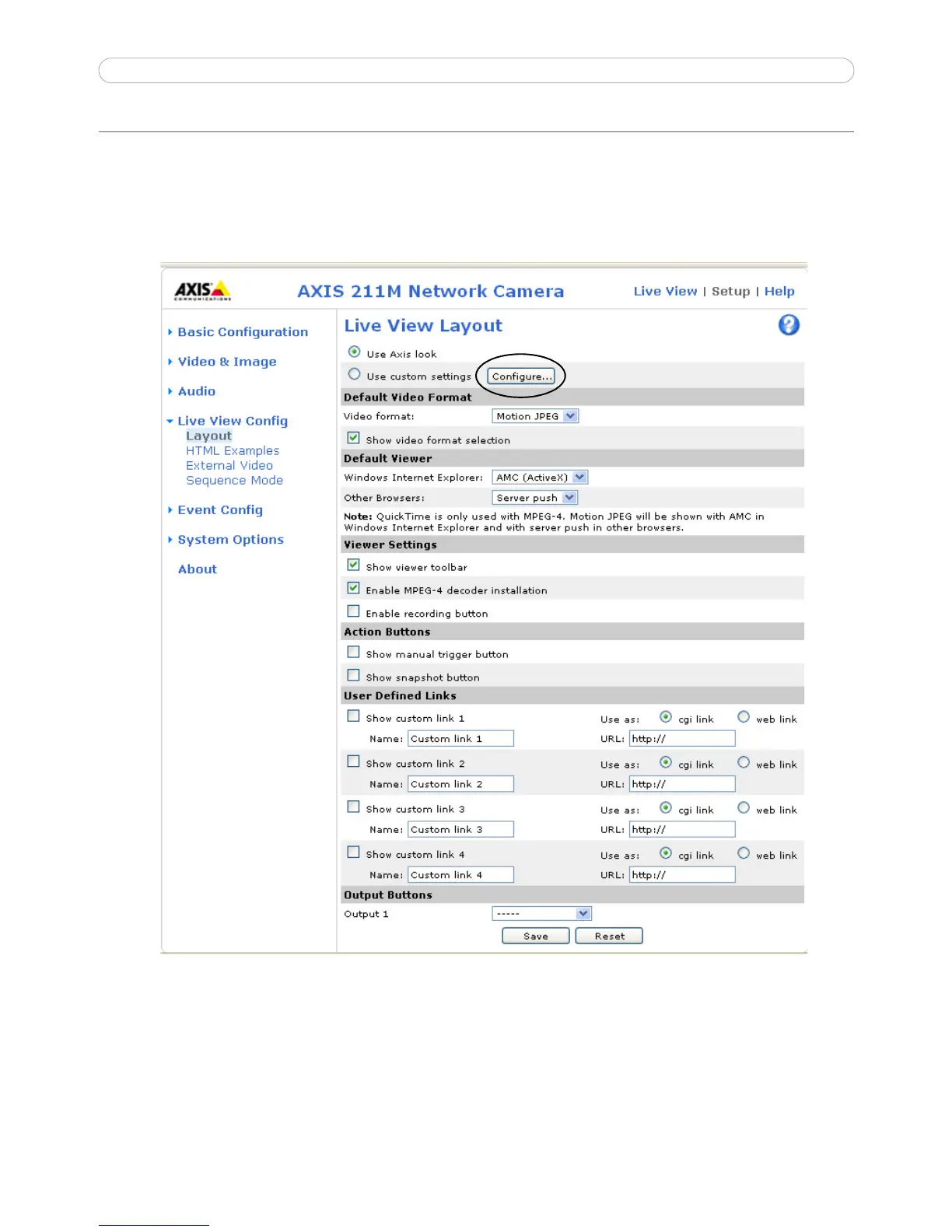

AXIS 211M - Live View Config
20
Live View Config
These are the tools for deciding the layout of the camera’s Live View page. The layout can be set in 2 ways:
Use Axis look - the layout is unchanged.
Use custom settings - modify the default Live View page with your own colors, and images. Click the
Configure button and see below.
The other settings on this page concern other features to include, such as buttons and links.

Other manuals for Axis 211M

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Axis 211M and is the answer not in the manual?

Axis 211M Specifications

General IconGeneral
Maximum resolution1280 x 1024 pixels
Camera shutter speed1/15000 - 1/4 s
Minimum illumination1 lx
Sensor typeCMOS
Progressive scanYes
Optical sensor size1/3 \
Focal length range3 - 8 mm
Power source typePoE
Power consumption (typical)5 W
Processor modelARTPEC-A
Flash memory8 MB
Internal memory64 MB
I/O ports1x RJ-45
Dimensions (WxDxH)44 x 88 x 172 mm
Power requirementsDC 7 - 20V
Resolution description1.3MP
Supported network protocolsIPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)20 - 80 %
Weight and Dimensions IconWeight and Dimensions
Weight244 g
