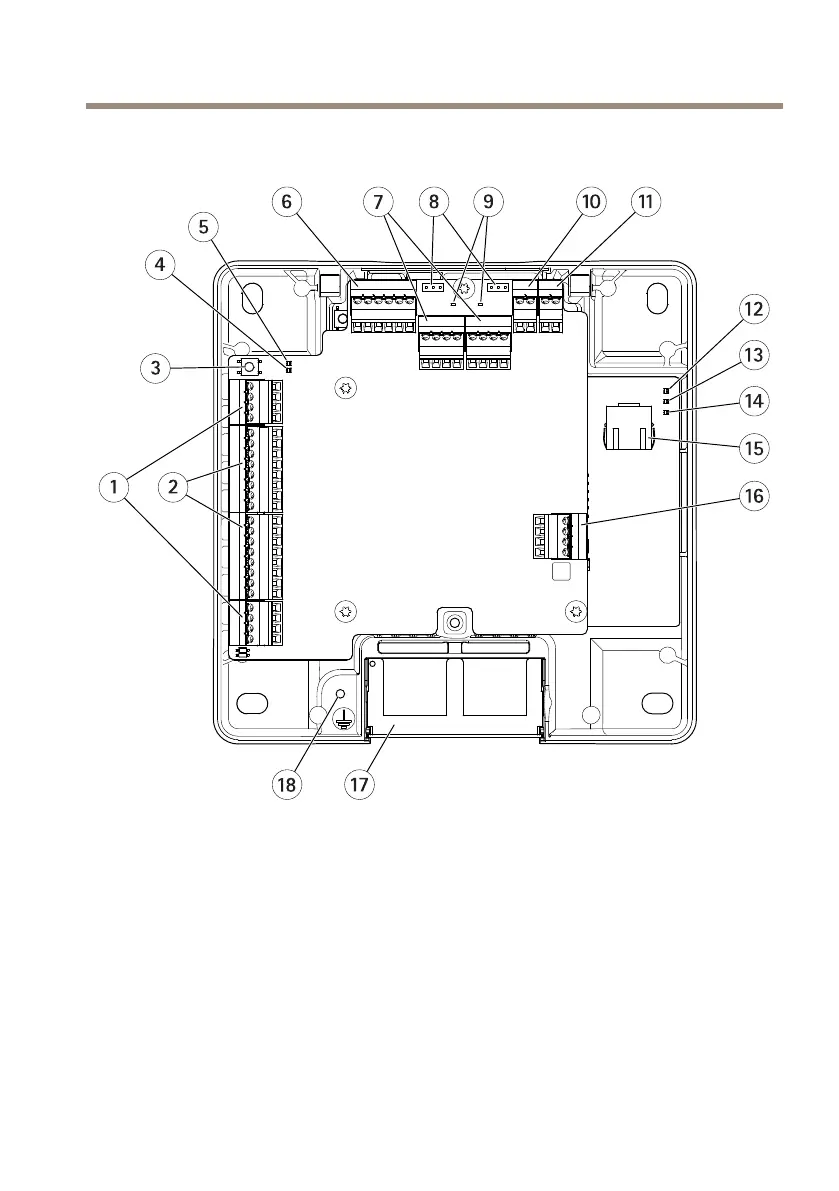

AXISA1601NetworkDoorController
Productoverview
1
Doorconnectoronpage23(2x)
2
Readerconnectoronpage20(2x)
3
Controlbuttononpage20
4
ReaderovercurrentLED
5
RelayovercurrentLED
6
Auxiliaryconnectoronpage24
7
Relayconnectoronpage23(2x)
8
Relayjumper(2x)
9
RelayLED(2x)
10
Backupbatteryinputconnectoronpage27
11
Powerconnectoronpage26
12
PowerLED
