Page 12 AXIS M32 Series Installation Guide
Adjust the image and focus

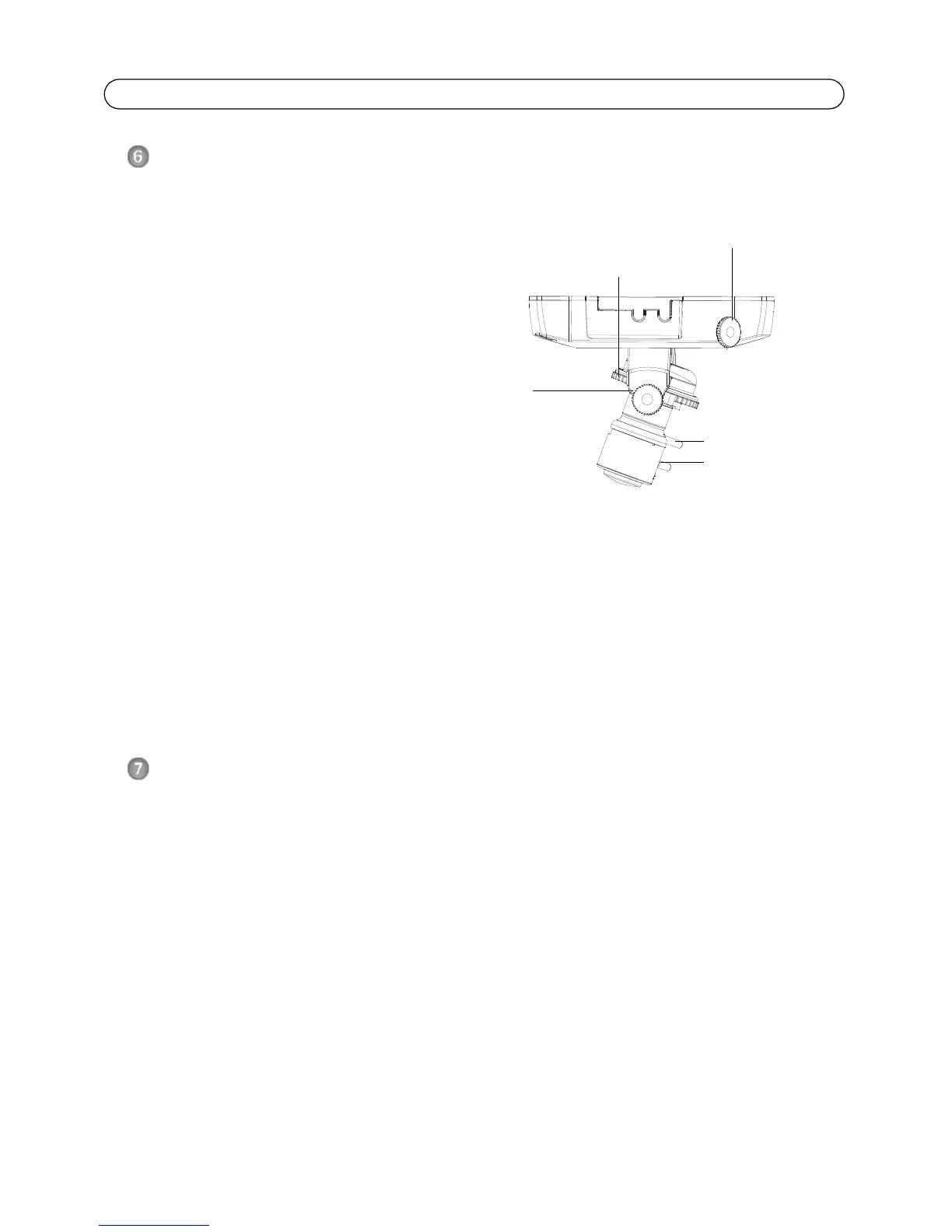

Open the Live View page in the web interface and make the following adjustments to the camera:
1. Loosen the locking screw and tilt adjust-
ment screws.
2. Turn the lens to the desired position.
3. Once satisfied, gently tighten the locking
screw and tilt adjustment screws to secure
the camera’s position.
4. Turn the image balance ring to set the
horizontal position.
5. To set the focus and zoom, loosen the zoom
and focus pullers anti-clockwise and rotate
the rings.
6. Lock the focus and zoom pullers in position
by rotating the screws clockwise.
Note:
Due to the dome’s refraction, the image may appear slightly out of focus once the dome
has been placed. Focus on an object slightly closer than the intended area to compensate
for this.
The image can also be fine-tuned for low light conditions.
Go to Setup > Video > Camera Settings in the camera’s web interface and see the online help for
more information.
Complete the installation
1. Rotate the black protective shield inside the dome casing to match the camera’s position.
2. Clean the dome with a dry soft cloth to remove dust and finger prints and use a blower to
remove dust from the lens.
3. Mount the dome casing using the supplied tamper-proof screws and screw driver.
4. Now that the dome is in place, double-check that the camera is properly focused.
5. The installation is now complete.
