Page 6 AXIS M32 Series Installation Guide
Install the hardware
Mount the camera
The AXIS M32 Series network cameras can be mounted with the cables routed through the wall/
ceiling, or from above or below. There are cover plates for the openings on both sides of the dome
cover.
The AXIS M32 Series can also be fitted with a metal conduit for protecting the cabling when
connected via the side openings. See the illustrations on page 4.
1. Using the drill template, drill two holes in the ceiling/wall. Ensure the camera is positioned so
that the tamper-proof screws can be tightened using the supplied screwdriver.
2. Route the required cables. See Connect to the network, on page 7 for details.
3. Fasten the camera unit to a ceiling or wall, using screws and plugs appropriate for the ceiling/
wall material.
4. Proceed to Connect to the network, on page 7.

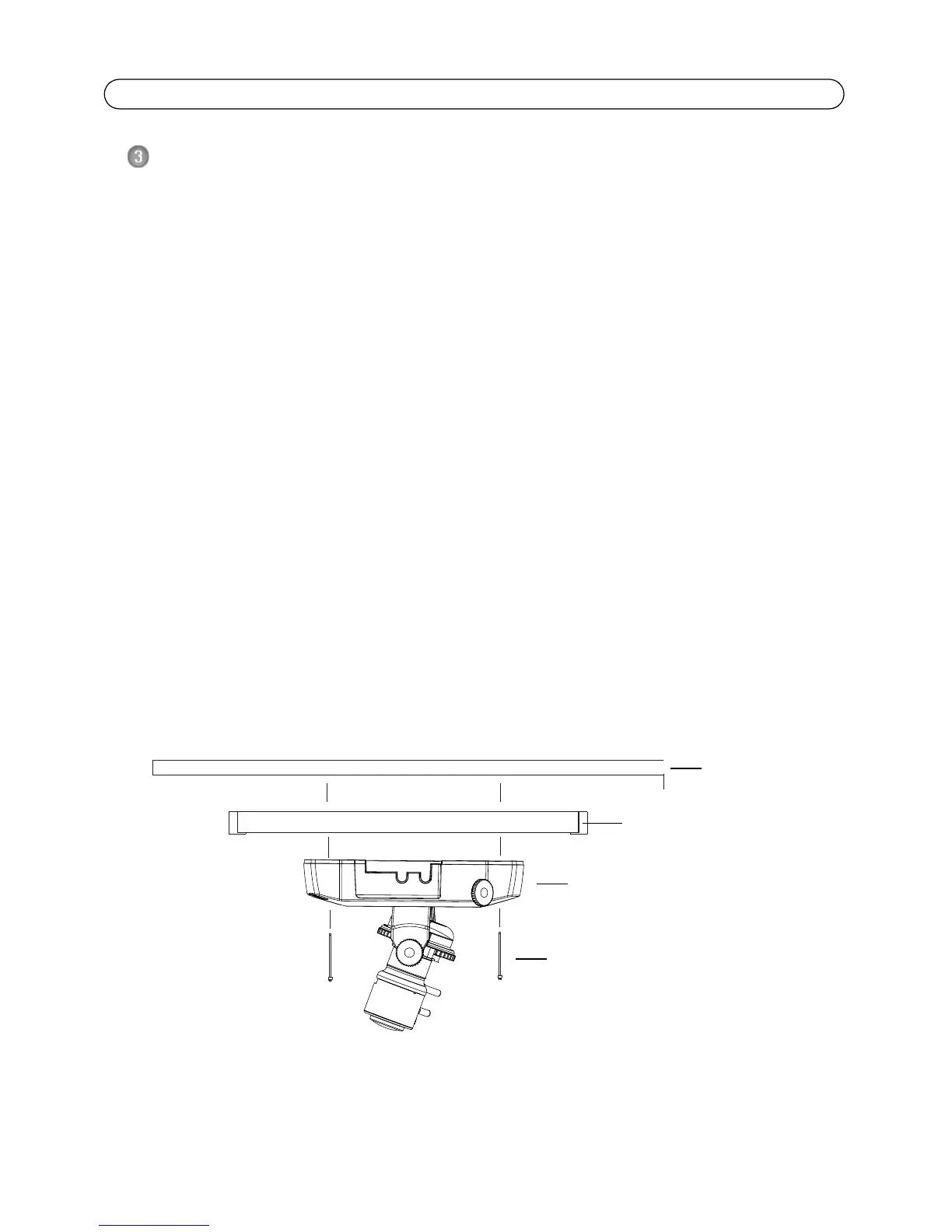

Mounting on a drop ceiling
To mount the AXIS M32 Series on a drop ceiling, check that the ceiling is sturdy enough to hold the
weight of the camera.
The camera can also be secured using a plate or board that better carries the weight of the camera,
and which is more suitable for securing the screws.
The AXIS M32 Series can also be mounted using the AXIS M32 Series Drop Ceiling Mount, which
allows the camera to be mounted more discreetly. Please see www.axis.com for all available
mounting accessories.
!
IMPORTANT! - The casing of the AXIS M3203-V and AXIS M3204-V is not approved
for outdoor use - the product may only be installed in indoor environments.
