AXISP13-ESeries
7.Installthetopcover.Makesuretotightendiagonallyoppositebottomcoverscrewsa
fewturnsatatimeuntilallaretight.Thiswillhelpensurethatthebottomcovergasket
iscompressedevenly.Donottightenthescrewscompletelythersttime.
8.Installthecablecoverandtightenthecablecoverscrews.
9.Loosenthesunshieldadjustmentscrewsandadjustthesunshieldtothefrontposition.

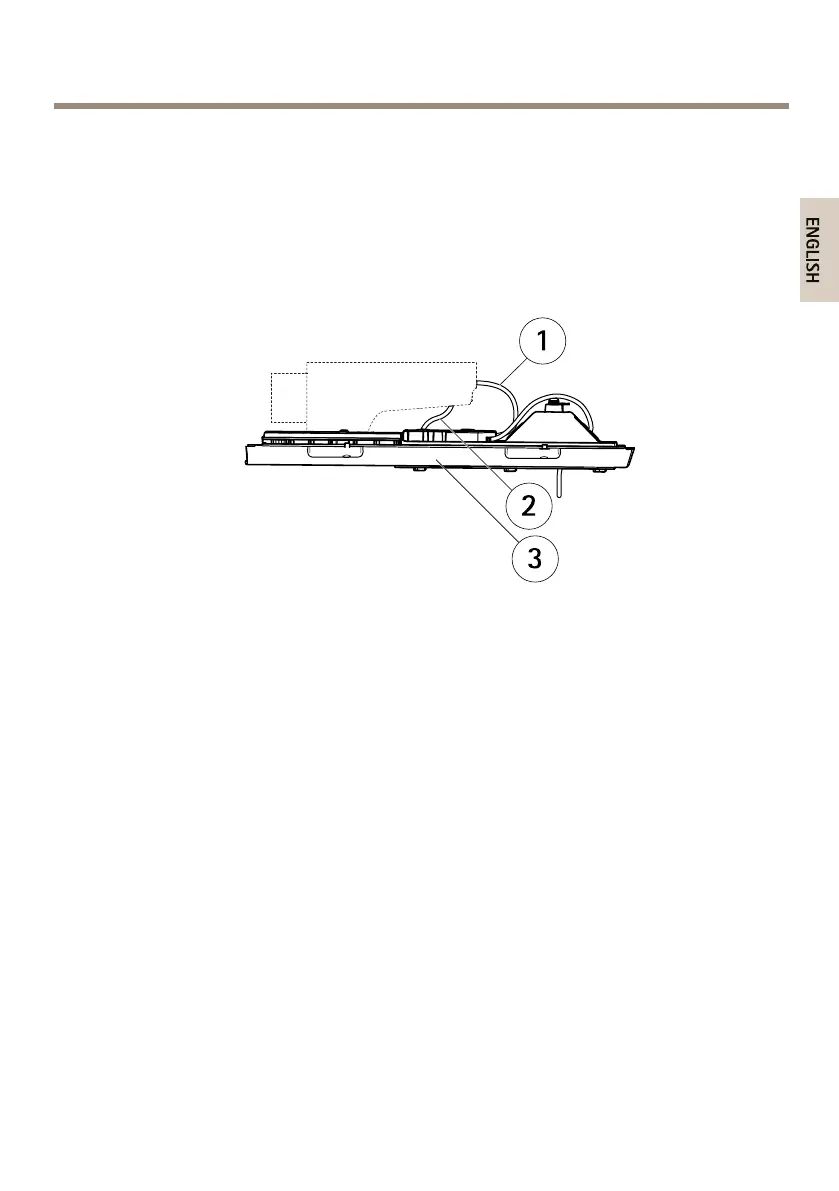

ConnecttheCables
2
3
1
1
Networkcables
2
I/Ocable
3
Bottomcover
21
