Axis P5514 - Detailed Mounting Hardware Overview

AXISP55NetworkCameraSeries
1
2
3
4
5
6
7
8
9
10
13
12
17
11
14
15
16

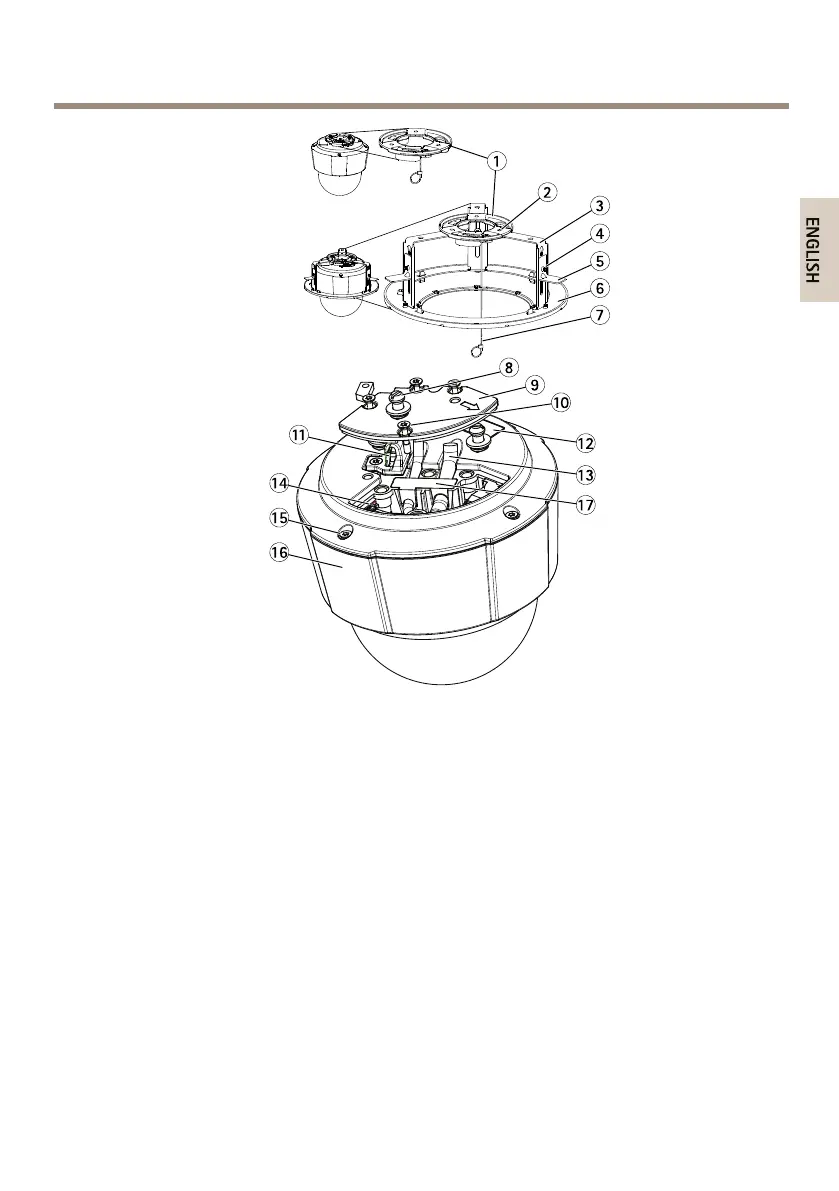

1
Mountingplate
2
Mountingplatescrews(3x)
3
Bracketarm(3x)
4
Bracketarmscrew(3x)andwasher(3x)
5
Mountingbracket
6
Trimring
7
Safetywire
8
Unitholders(3x)
9
Camerabaselid
10
Camerabaselidscrews(4x)
11
Hookforsafetywire
12
Partnumber(P/N)&Serialnumber(S/N).Serialnumbermayberequiredduring
installation.
13
Cabletracks
14
Multi-connector(forindoorversiononly)
15
Topcoverscrews(4x)
16
Topcover
17
Rubbergasket
11
