Axis P5534 User Manual

AXIS P5534 PTZ Dome Network Camera
Accessing the product

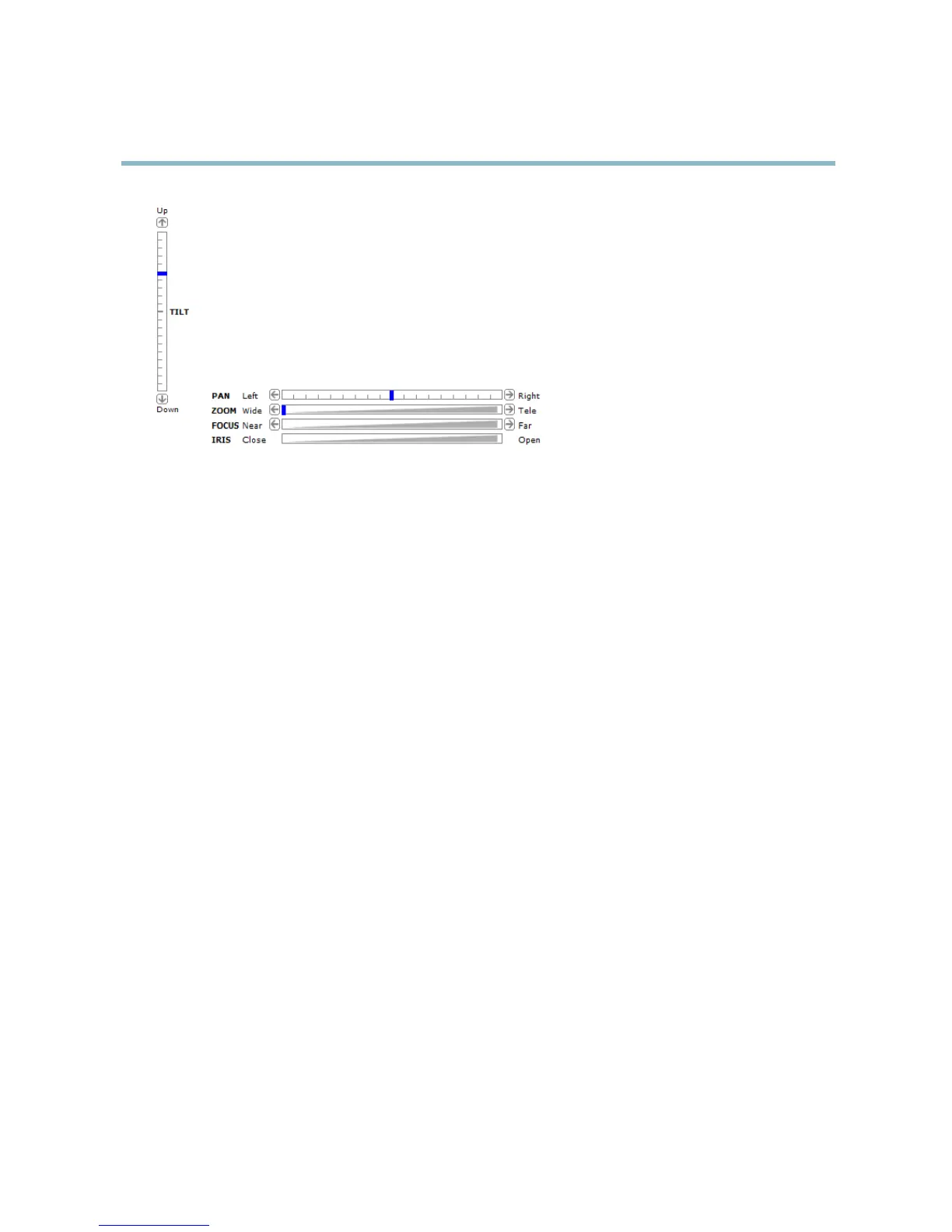

Pan and Tilt bars – Use the arrow s to pan and tilt the camera view, or click on a pos ition on the bar to steer the
camera view to that position.
Zoom bar – Use the arrows to zoom in and o ut, or click on a position on the bar to zoom to that position.
Focus bar – Use the a rrows to focus the camera, or click on a position on the bar to set the focus position. Using the
focus bar will disable the product’s autofocus. To re-enable, use the PTZ control panel which is opened by clicking
the Ctrl panel button (see above).
Iris bar – Click on a position on the iris bar to change the degree to which the iris is opened. This will dis able the
product’s auto iris. To re-enable, use the PTZ control panel which is opened b y clicking the Ctrl panel button (see above).
The PTZ controls can be disabled under PTZ > Advanced > Controls,seeControls, on page 27.
11

Axis P5534 Specifications

General

Maximum resolution	1280 x 720 pixels
Video formats supported	H.264
Pan range	0 - 360 °
Tilt angle range	0 - 180 °
Camera shutter speed	1/10000 - 1/4 s
Minimum illumination	0.74 lx
Sensor type	CCD
Optical sensor size	1/3 \
Digital zoom	18 x
Focal length range	4.7 - 84.6 mm
Video motion detection	Yes
Supported network protocols	IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Power source type	PoE
Ethernet LAN (RJ-45) ports	1
Dimensions (WxDxH)	183 x 183 x 195 mm
Certification	EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, FCC Part 15 Subpart B, Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22, EN 60950-1, KCC Class B, IEC 60721-4-3 Class 3K3, 3M3, EN/IEC 60068-2
Processor model	ARTPEC-3
Flash memory	128 MB
Internal memory	256 MB

Weight and Dimensions

Weight	2300 g
