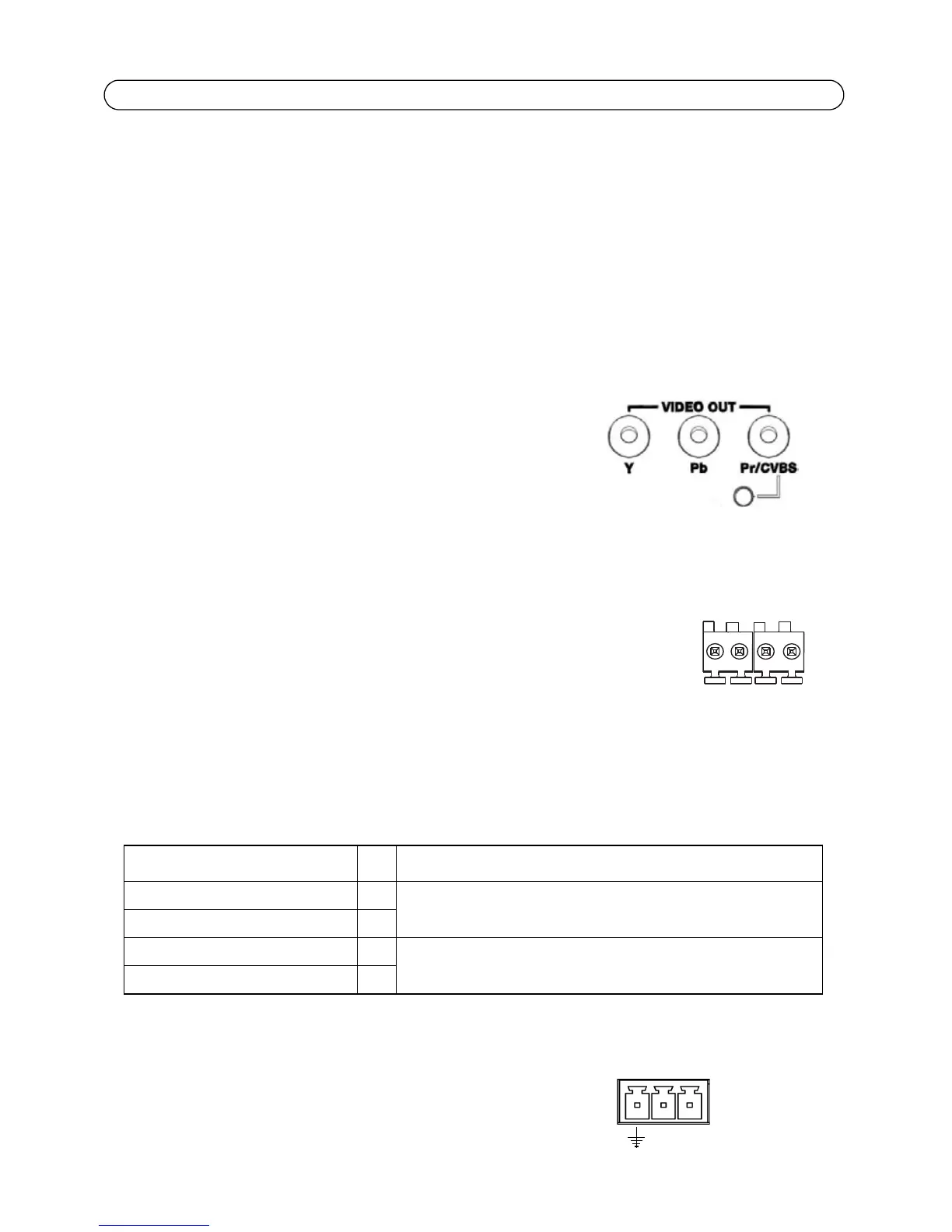

Page 12 AXIS Q1755 Installation Guide
Unit connectors
Network - RJ-45 Ethernet connector. Supports PoE (Power over Ethernet, class 3). Using shielded
cables is recommended.
Audio in - 3.5mm input for a mono microphone, or a line-in mono signal (left channel is used from
a stereo signal).
Audio out - 3.5mm output for audio (line level), can be connected to a public address (PA) system
or an active speaker with a built-in amplifier. A pair of headphones can also be connected. A stereo
connector must be used for audio out.
Video Out - RCA connectors for component or composite
video out.
Component video out for HDTV video, e.g. an entrance
camera connected to an HDTV screen
Composite video (CVBS) - for easy installation using a
video monitor
RS-485/422 - two 2-pin terminal blocks for RS-485/422
serial interface used to control auxiliary equipment, e.g. PTZ devices.
The RS-485/422 serial port can be configured in the following port modes:
Bidirectional RS-485 half-duplex port for data transmission using
two wires, one combined RX/TX pair.
Bidirectional RS-485 full-duplex port for data transmission using
four wires, one RX pair and one TX pair.
Unidirectional RS-422 port for transmitting or receiving data using
two wires, RX- or TX pair.
Bidirectional RS-422 full-duplex port for data transmission (point-to-point) using four
wires, one RX pair and one TX pair.
SDHC memory card slot - High capacity SD memory card used for local recording and removable
storage.
Power - 3-pin terminal block 8-20 VDC or 20-24 VAC
Function Pin Notes
RS 485/422TX(A) 1 TX pair for RS-422 and 4-wire RS-485
RS 485/422TX(B) 2
RS-485A alt RS-485/422RX(A) 3 RX pair for all modes (combined RX/TX for 2-wire RS-485)
RS-485B alt RS-485/422RX(B) 4
4
321
Pins
RS-485/422
RX/TX TX
+
~
~

Other manuals for Axis Q1755

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Axis Q1755 and is the answer not in the manual?

Axis Q1755 Specifications

General IconGeneral
Maximum resolution1920 x 1080 pixels
Camera shutter speed1/10000 - 1/2 s
Minimum illumination2 lx
Sensor typeCMOS
Optical sensor size1/3 \
Sample rate16 kHz
Supported network protocolsIPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, Pelco-D
Power source typePoE
Power over Ethernet (PoE)Yes
Power consumption (typical)17.4 W
Ethernet LAN (RJ-45) ports1
Dimensions (WxDxH)186 x 85 x 211.4 mm
Power requirements20 - 24 V AC
CertificationEN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 60950-1, FCC Part 15, Subpart B, Class B, VCCI, Class B ITE, C-tick AS/NZS CISPR 22, ICES-003, Class B
Processor modelARTPEC-3
Flash memory256 MB
Internal memory128 MB
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)20 - 80 %
Weight and Dimensions IconWeight and Dimensions
Weight985 g
