AXIS
Q60
Series
Optional
Accessories
•
AXIS
T91A
Mounting
Accessories
•
Smoked
dome
cover
•
RJ45
IP66-rated
Cable
with
Premounted
Connector
(CAT6)
5
m
•
AXIS
T8310
Video
Surveillance
Control
Board
•
AXIS
T90A
Illuminators
•
Installation
Display
•
Midspan
For
information
about
available
accessories,
see
www.axis.com

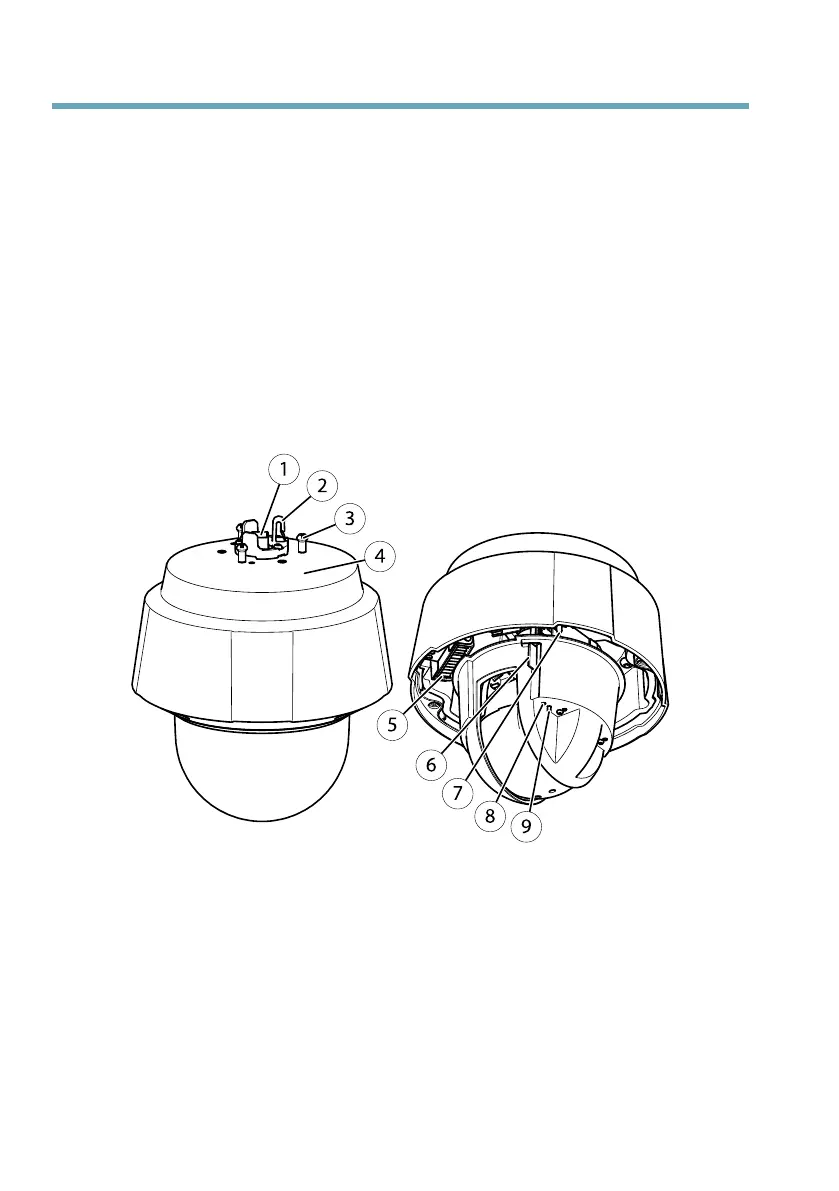

Hardware
Overview
1
2
3
4
5
6
8
7
9
1
Network
connector
(High
PoE)
2
Hook
for
safety
wire
3
Unit
holder
(3x)
4
Part
number
(P/N)
&
Serial
number
(S/N)
5
Heater
6
SD
card
slot
(SDHC)
7
Power
button
8
Status
LED
indicator
9
Control
button
10
9
11
Table of Contents
Safety Information
5
Hazard Levels
5
Other Message Levels
5
Safety Instructions
6
Dome Cover
7
Installation Steps
9
Package Contents
9
Recommended Tools
9
Optional Accessories
10
Hardware Overview
10
Midspan LED Indicators
12
Specifications
13
Operating Conditions
13
Power Consumption
13
Install the Hardware
14
Attach the Sunshield
14
Replace the Dome Cover
14
Install an SD Card
15
Bracket Mount (Sold Separately)
15
Install the Midspan
18
Access the Product
18
Reset to Factory Default Settings
18
Further Information
19
Warranty Information
19
Informations Sur la Sécurité
21
Niveaux de Risques
21
Autres Niveaux de Message
21
Consignes de Sécurité
22
Couvercle de Dôme
23
Guide D'installation
25
Procédures D'installation
25
Contenu de L'emballage
25
Outils Recommandés
25
Accessoires en Option
26
Présentation du Matériel
26
Caractéristiques Techniques
29
Conditions D'utilisation
29
Consommation Électrique
30
Installation du Matériel
30
Fixation du Pare-Soleil
31
Remplacement du Couvercle du Dôme
31
Installation D'une Carte SD
31
Support de Fixation (Vendu Séparément)
32
Accès Au Produit
34
Réinitialisation Aux Paramètres D'usine Par Défaut
34
Informations Complémentaires
35
Informations Sur la Garantie
35
Weitere Nachrichtenstufen
37
Empfohlene Werkzeuge
41
Optionales Zubehör
42
LED-Anzeigen
44
Technische Daten
45
Installieren der Hardware
46
Austauschen der Kuppelabdeckung
47
Installation einer SD-Karte
47
Midspan Installieren
51
Zugriff auf das Produkt
51
Zurücksetzen auf Werkseitige Standardeinstellungen
52
Weitere Informationen
52
Informazioni DI Sicurezza
55
Livelli DI Pericolo
55
Livelli Altro Messaggio
55
Istruzioni DI Sicurezza
56
Coperchio Della Cupola
57
Guida All'installazione
59
Procedure DI Installazione
59
Contenuto Della Confezione
59
Strumenti Raccomandati
59
Accessori Opzionali
59
Panoramica Dell'hardware
60
Indicatori LED
62
Indicatori LED del Midspan
62
Dati Tecnici
63
Condizioni DI Funzionamento
63
Consumo Energetico
64
Installazione Dell'hardware
64
Montaggio a Staffa (Venduto Separatamente)
66
Installazione del Midspan
69
Accedere al Prodotto
69
Ripristino Dei Valori Predefiniti DI Fabbrica
69
Ulteriori Informazioni
70
Informazioni Sulla Garanzia
70
Información de Seguridad
71
Niveles de Peligro
71
Otros Niveles de Mensaje
71
Instrucciones de Seguridad
72
Cubierta del Domo
73
Guía de Instalación
75
Pasos de la Instalación
75
Contenido del Paquete
75
Herramientas Recomendadas
75
Accesorios Opcionales
76
Presentación del Hardware
76
Indicadores LED
78
Indicadores LED del Midspan
78
Especificaciones
79
Condiciones de Funcionamiento
79
Instalación del Hardware
80
Colocación del Parasol
81
Sustitución de la Cubierta del Domo
81
Instalación de una Tarjeta SD
81
Instalación del Midspan
85
Acceso al Producto
85
Restablecimiento a la Configuración Predeterminada de Fábrica
85
Más Información
86
Información de la Garantía
86
