NOTICE NOTICE
NOTICE
•Becarefulnottodamagethecableswhenconnectingthem.
•Makesurethatthefoamgasketholesarealignedwiththecabletracksand,ifapplicable,
removethecut-outpieceforthemulti-connectorcablefromthefoamgasket.
1
2
3

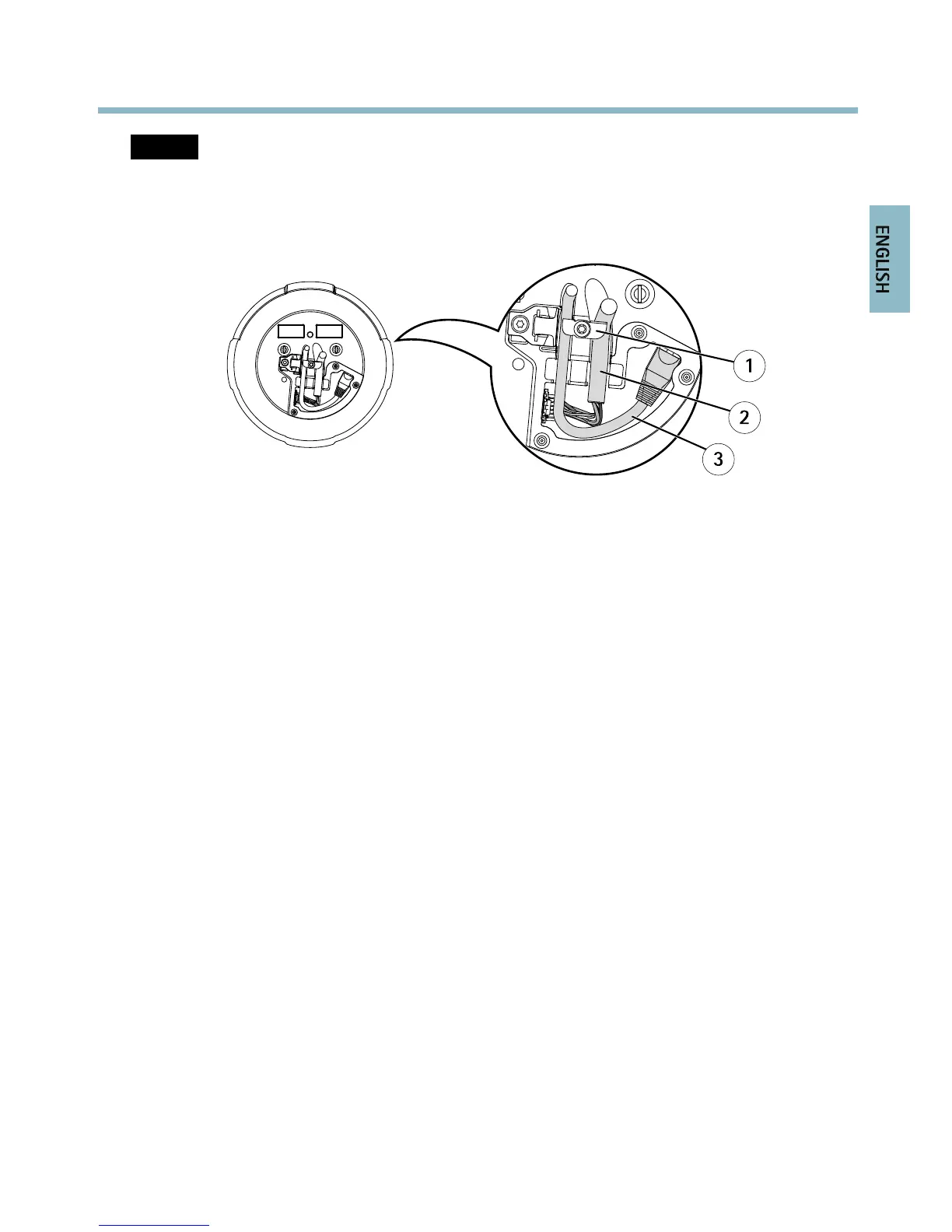

1
Cableholders
2
Multi-connectorcable(soldseparately)
3
Networkcable(notincluded)
7.Turnthecableholderstokeepthecablesinplace.
8.Putthecamerabaselidbackinitsoriginalpositionandtightenthescrews(torque
1.5Nm).
9.Securethecamerausingthesuppliedsafetywire.
