AXISQ7424-RMkIIVideoEncoder

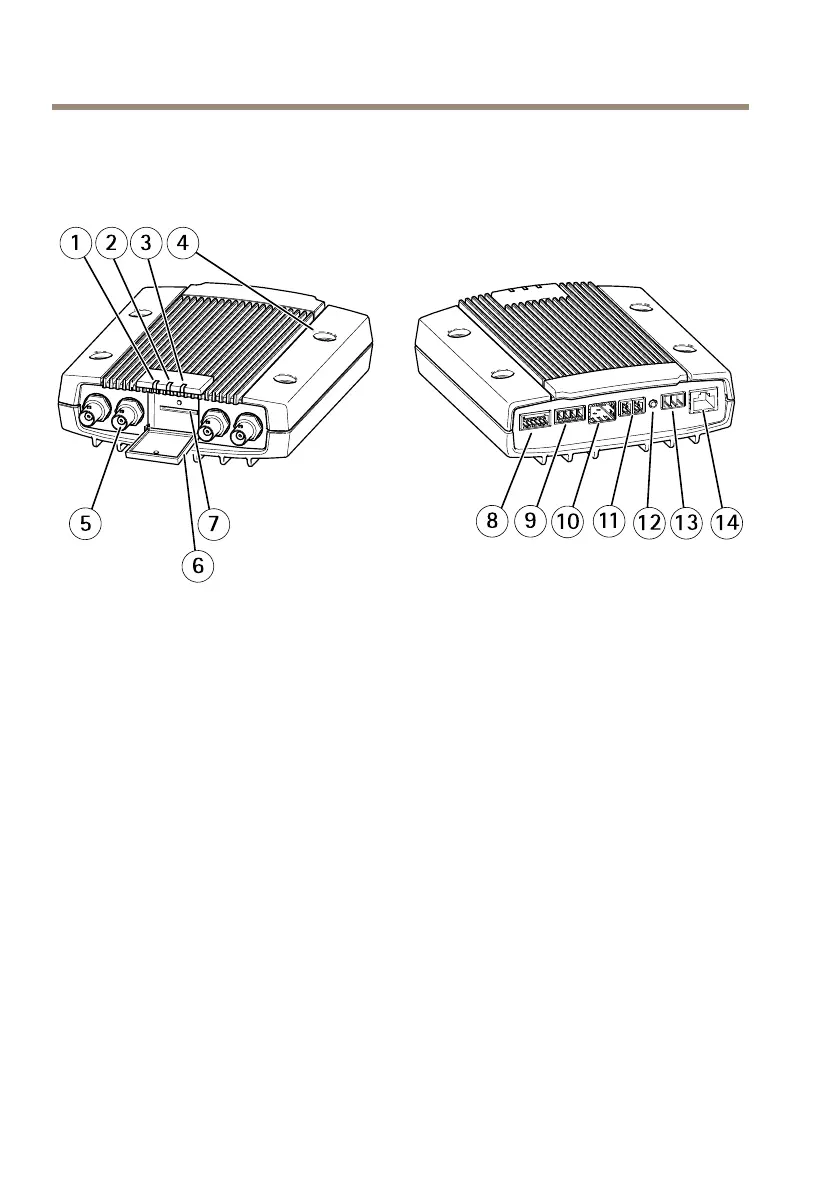

Panoramicadell'hardware
Perlespecichedeicomponentihardware,vedereSpecichetecnicheallapagina63.
1
AlimentazioneindicatoreLED
2
StatoindicatoreLED
3
ReteindicatoreLED
4
Foridimontaggio
5
Connettoridiingressovideo
6
CoperchioschedadimemoriaSD
7
AlloggiamentoperschededimemoriaSD
8
ConnettoreI/O
9
Connettoriaudio
10
ConnettoreSFP
11
ConnettoreRS485/RS422
12
Pulsantedicomando
13
Connettoredialimentazione
14
Connettoredirete(PoE)
