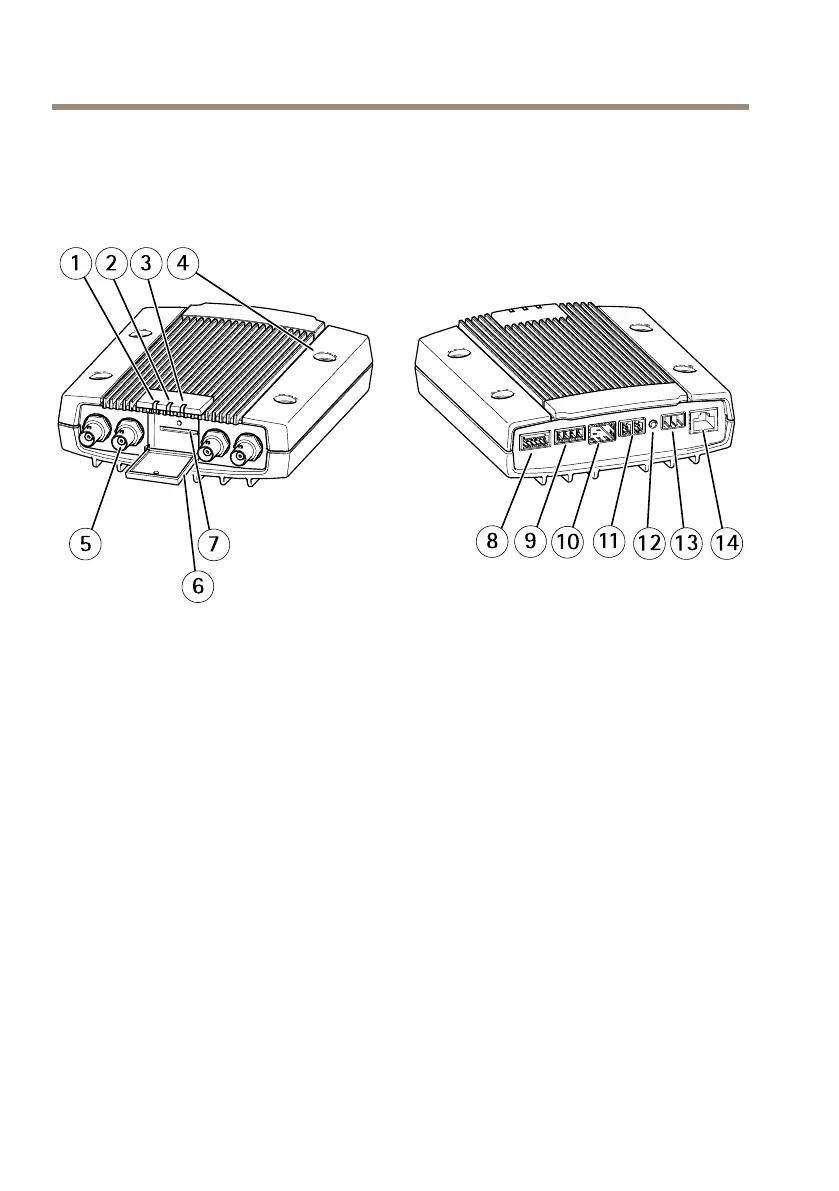

AXISQ7424-RMkIIVideoEncoder
Informacióngeneraldelhardware
Paraconocerlasespecicacionesdeloscomponentesdelhardware,veaEspecicacionestécnicas
enlapágina79.
1
LEDindicadordeAlimentación
2
LEDindicadordeEstado
3
LEDindicadordeRed
4
Oriciosdemontaje
5
Conectoresdeentradadevídeo
6
TapadelatarjetadememoriaSD
7
RanuradelatarjetadememoriaSD
8
ConectordeE/S
9
Conectoresdeaudio
10
ConectorSFP
11
ConectorRS485/RS422
12
Botóndecontrol
13
Conectordealimentación
14
Conectordered(PoE)
