Axon TASER Axon Dock User Manual

Chapter 4: Wall Mounting an Axon Dock 14
TASER Axon Dock Installation Manual

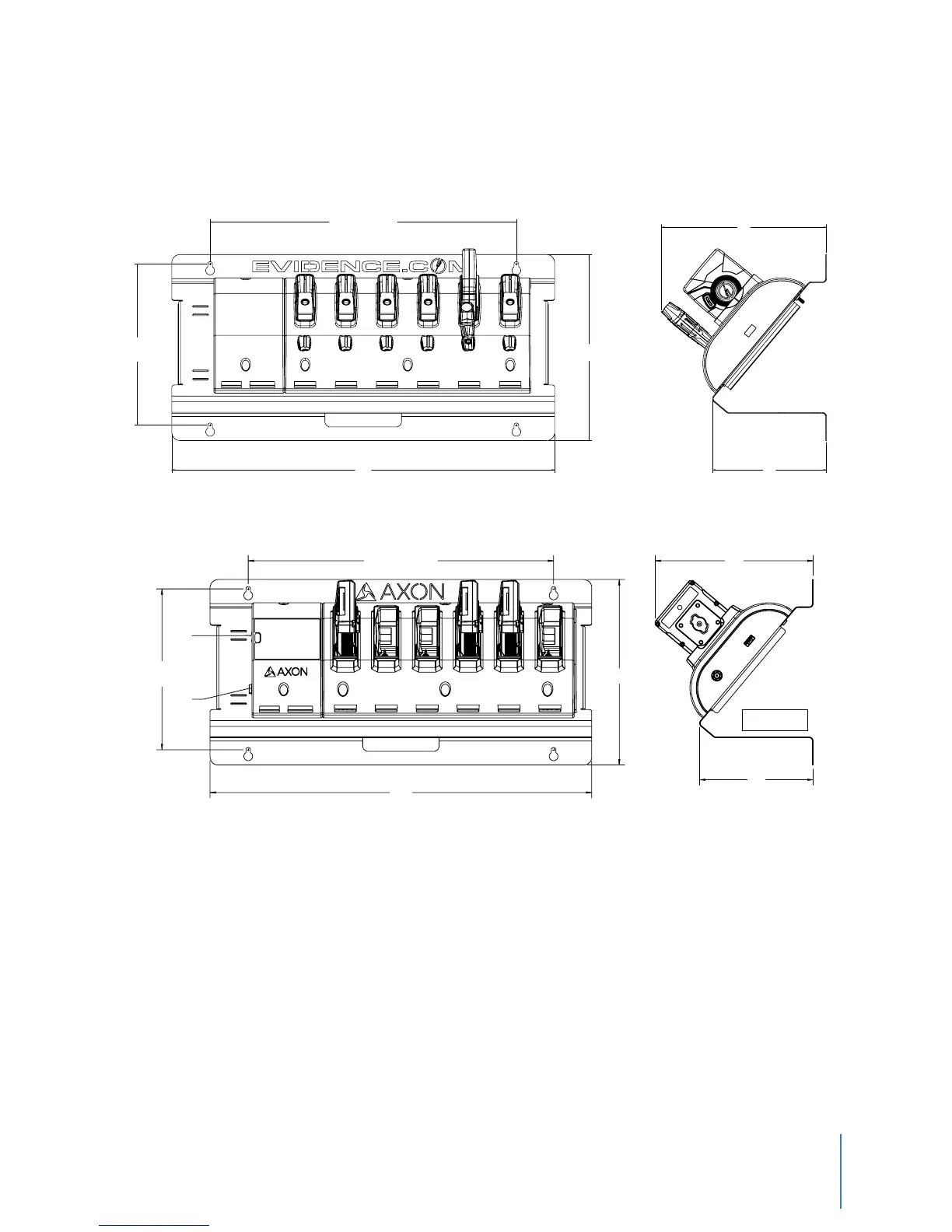

Dimensions for an Axon Dock with a 6-Bay for Axon Body Cameras and Axon Flex
Systems
Note: All dimensions are in inches (and centimeters).
Dimensions for an Axon Dock with a 6-Bay for Axon Body 2 and Axon Fleet Camer-
as
14.000 CTR TO CTR
7.375
CTR TO CTR
17.50
8.51
5.21
7.55
[35.6 cm]
[18.7 cm]
[21.6 cm]
[19.2 cm]
[13.2 cm][44.5 cm]
7.375
CTR TO CTR
14.000 CTR TO CTR
17.50
8.51
ETHERNET
INPUT
POWER
INPUT
ALL DIMS SHOWN IN INCHES
7.24
5.21
AREA FOR POWER
SUPPLY MOUNTING
[35.6 cm]
[18.7 cm]
[21.6 cm]
[44.5 cm]
[18.4 cm]
[13.2 cm]
