INSTALLING THE AX-VL90032 INTERFACE
(CONT)
For installations when a double DIN radio will be
installed, the factory radio will need to be disassembled,
and the radio display relocated in the dash
.

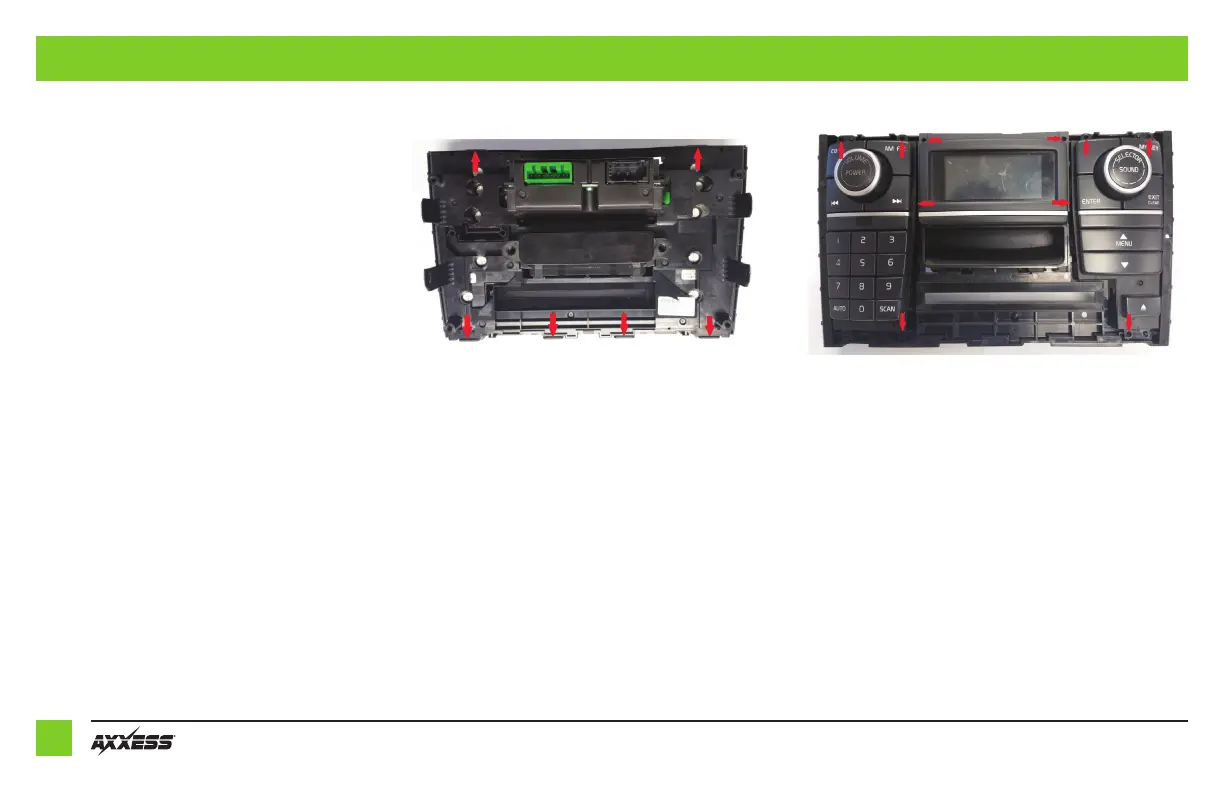

Unclip (6) tabs securing the radio bezel to the
radio assembly, then remove the bezel. (Figure C)
Remove (3) screws securing each radio pod to the
radio frame. Carefully unplug the wiring harness
from each pod, then remove the pods. (Figure D)
Remove (4) screws securing the radio display to the
radio frame, then remove the display. (Figure D)
Connect the AX-VL90032 harness to the
AX-VL90032 interface.
Connect the ASWC-1 harness to the ASWC-1 interface,
and then to the AX-VL90032 interface.
Note: The factory antenna in these vehicles cannot
be reused. A Metra antenna, 44-UA200 (sold
separately), on the front glass is suggested.
(Figure C) (Figure D)
