8 Model MGR13C/MGR11U - MagneW3000 Electromagnetic FLowmeter Hyper-Fill
3 : Configuration of the converter
Refer to the following configuration table printed to the main unit for the converter
configuration.
3-1 : Range
Select an appropriate range. It is recommended to set a range so that the flow rate is
approximately 70%. Do not set a range of which the flow rate is less than 25%.
Select the range by receptacles in S2 shown in Figure 5.
3-2 : Pulse scale
0.1 mL/P or 0.05 mL/P is selectable as a pulse scale.
Pulse scale of 0.05 mL/P is not applicable in case of range of 800 mL/s.
~Note * Pulse width of 200 μ S is not applicable in case that pulse span fre-
quency fs is 8000 Hz.

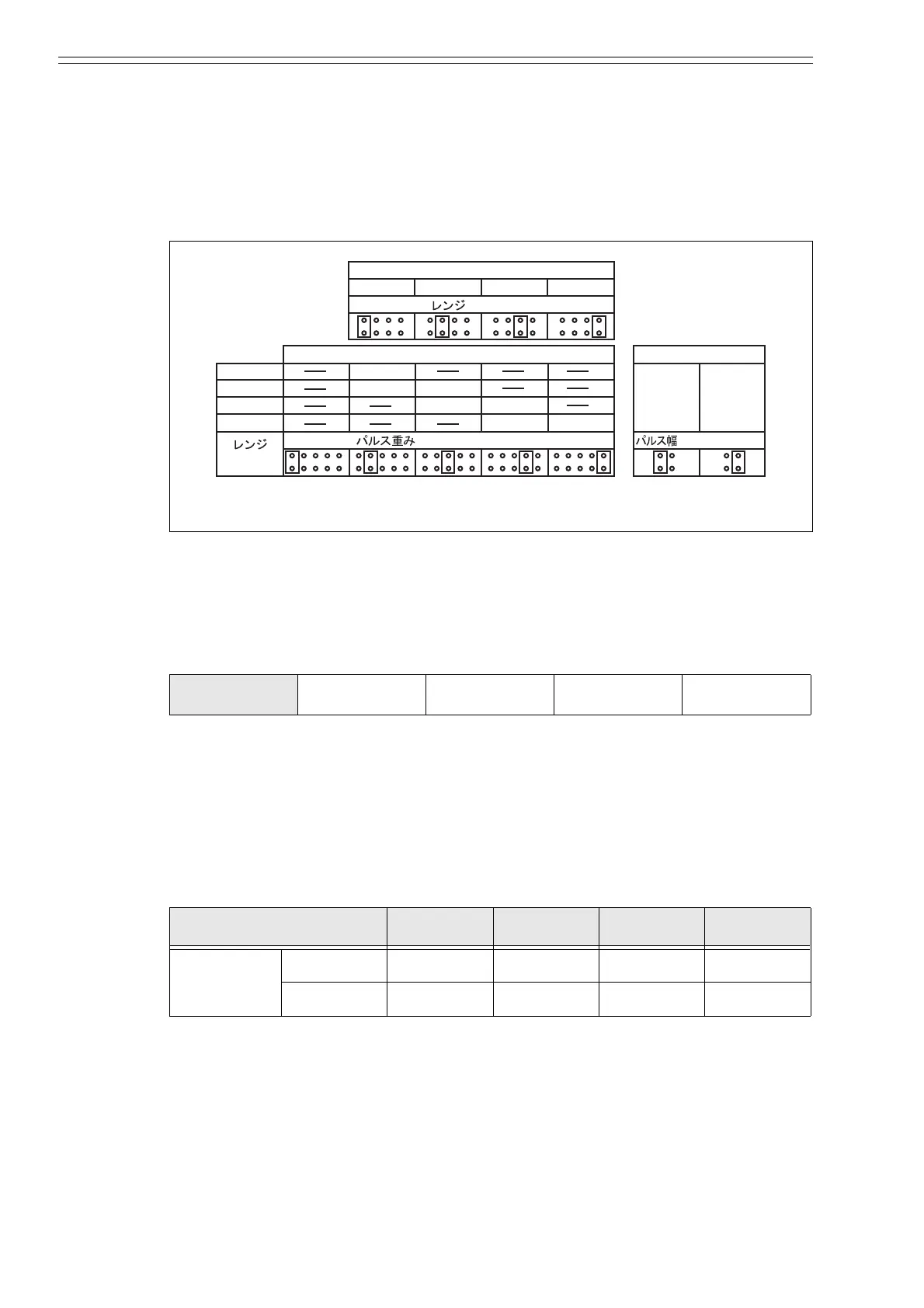

Figure 5
Range 100 mL/s 200 mL/s 400 mL/s 800 mL/s
Range 100 mL/s 200 mL/s 400 mL/s 800 mL/s
Pulse span
frequency fs
0.05 mL/P 2000 Hz 4000 Hz 8000 Hz * N/A
0.1 mL/P 1000 Hz 2000 Hz 4000 Hz 8000 Hz *
S2
S3 S4
100mL/s
100mL/s
200mL/s
200mL/s
400mL/s
400mL/s
800mL/s
800mL/s
RANGE
PULSE WEIGHT
RANGE
PULSE WIDTH
0.1mL/P
0.05mL/P
0.05mL/P
0.05mL/P
0.1mL/P
0.1mL/P
0.1mL/P
30μs 200μs
