Overview Azbil Corporation
12 Model MGR13C/MGR11U - MagneW3000 Electromagnetic FLowmeter Hyper-Fill
Version 2 (PLS ZERO: button)
(1) Fill the fluid inside of the flowtube and verify the fluid stops.
(2) Zeroing the flowmeter. Push the button of the PLS ZERO for one second. Zero
adjustment will be done automatically. If zero adjustment is done successfully,
LED lights out for five seconds then light on. If failed, LED blinked for 20
seconds. Check if wiring is correct and no bubble remains in the flowtube, and try
zero adjustment again.
Version 2 is compatible with Version 1. Version 1 can be replaced with the version 2.
4-3 : Span adjustment
Span adjustment was performed at the factory. If there is some discrepancy between
actual filling value and flowmeter measured value, tune the span by the “SPAN”
variable resistor.

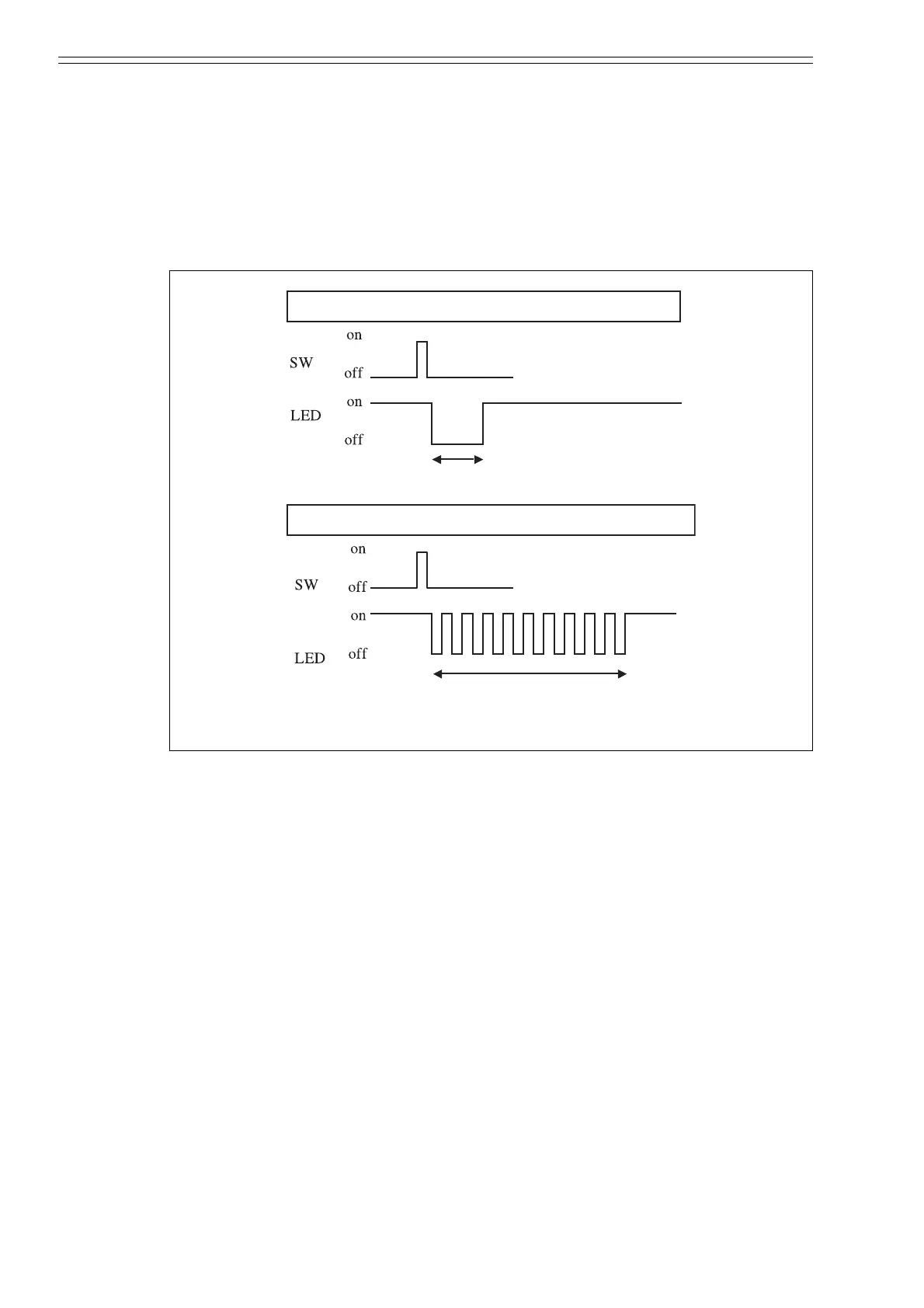

Figure 8
5s
LED operation in case of correct zero adjustment
LED operation in case of incorrect zero adjustment
1s
1s
20s blink
