Overview Azbil Corporation
10 Model MGR13C/MGR11U - MagneW3000 Electromagnetic FLowmeter Hyper-Fill
3-5 : Master/slave configuration
This function is used to minimize magnetic interference by detectors installed closely
each other in the multiple head filling machine applications. A master converter sends
synchronized signal for excitation to slave converters, thus avoiding output error due
to magnetic interference.
According to the model number selected, the configuration for a master or slave is
done by the factory.
Master converter: MGR13C-**M
Slave converter: MGR13C-**S
In case of configuring master/slave function, follow below procedure.
(1) Turn OFF the power.
(2) Loosen screws of the main unit fixed in slot 1 and remove the main unit.

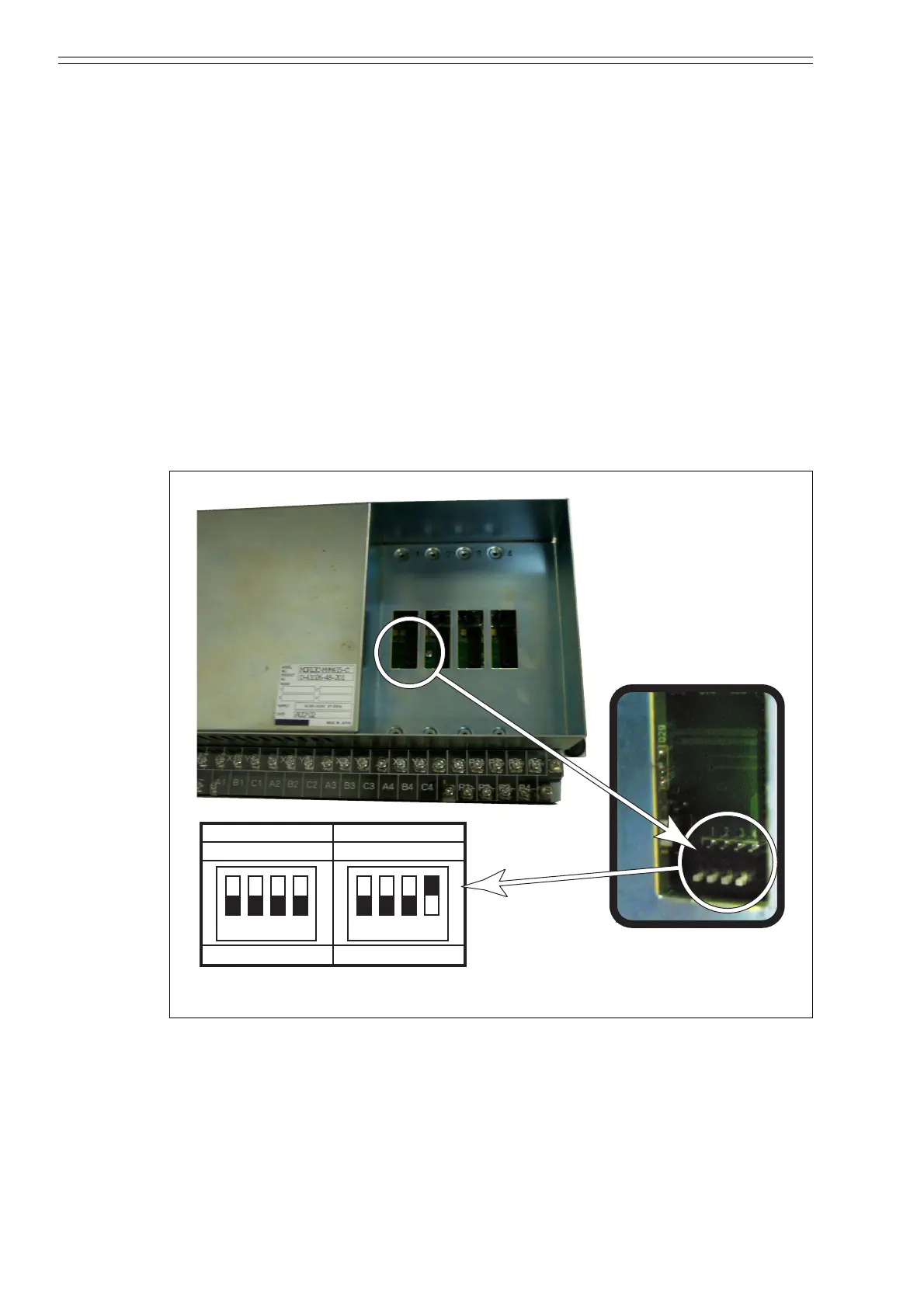

(3) Set the DIP switch as shown in the Figure 6.
Figure 6
MS
1234 1234
Master converter Slave converter
